Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

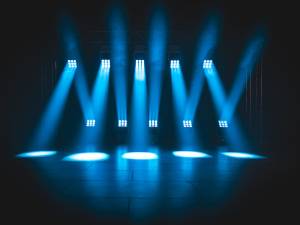

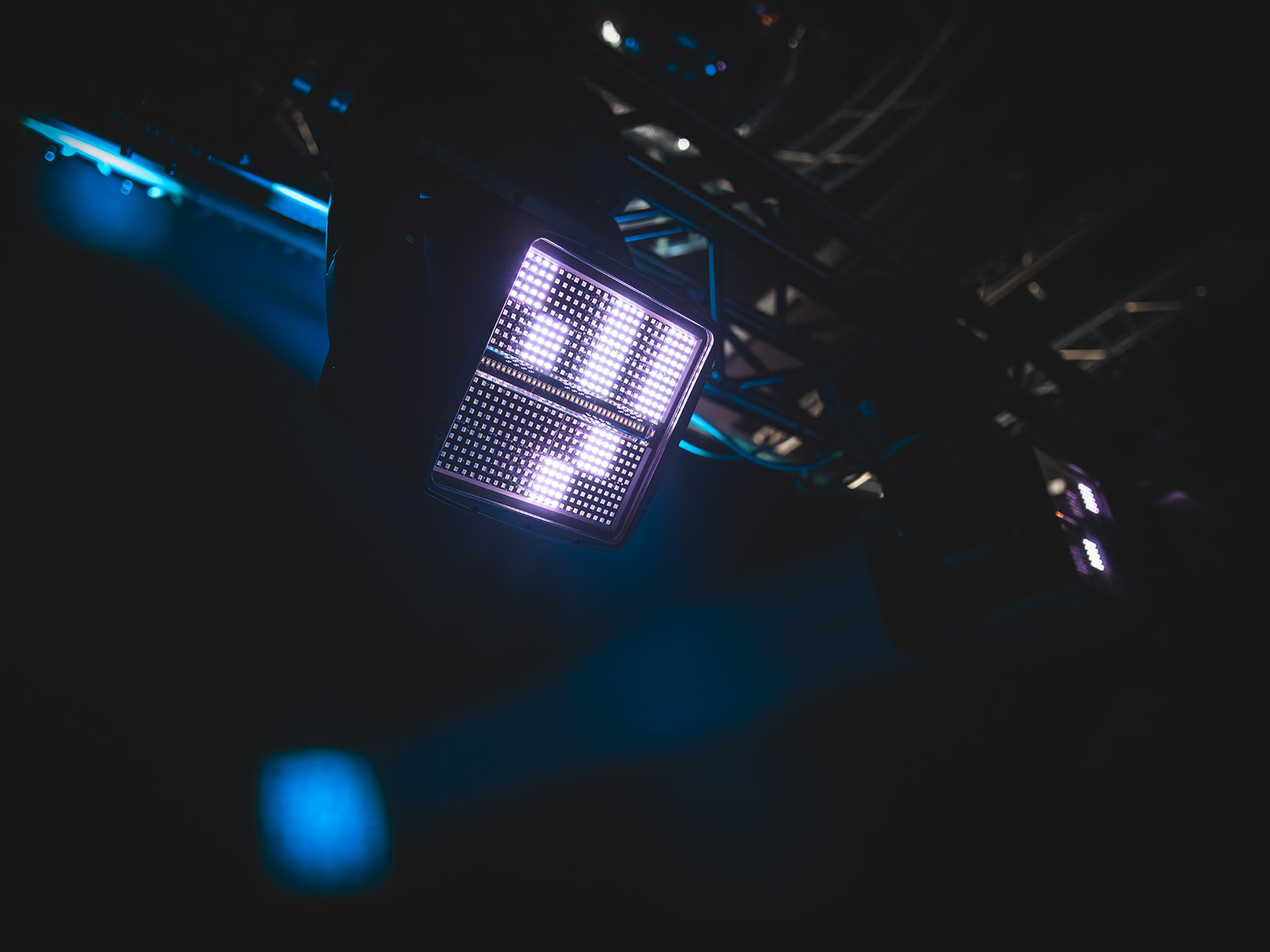

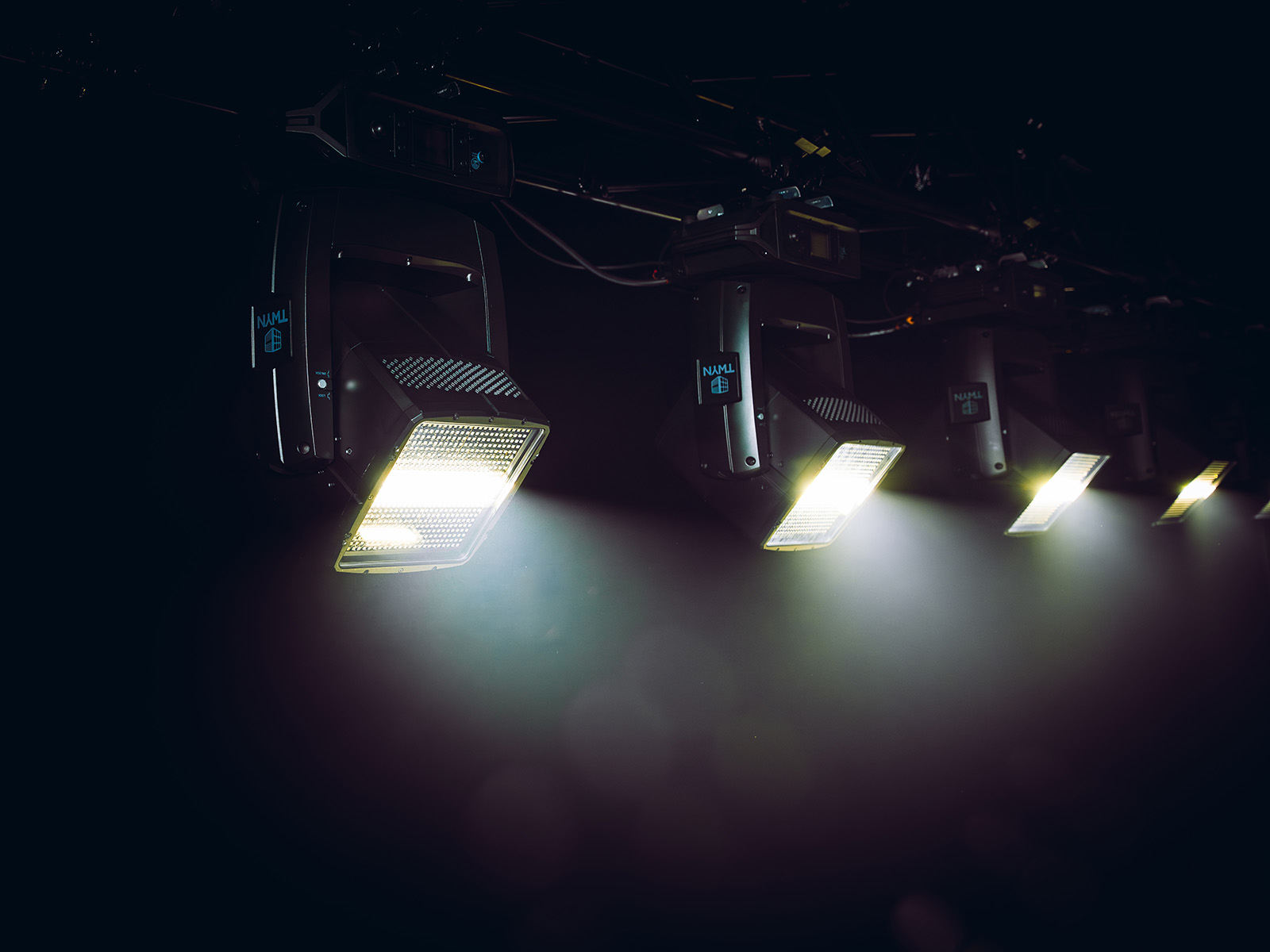

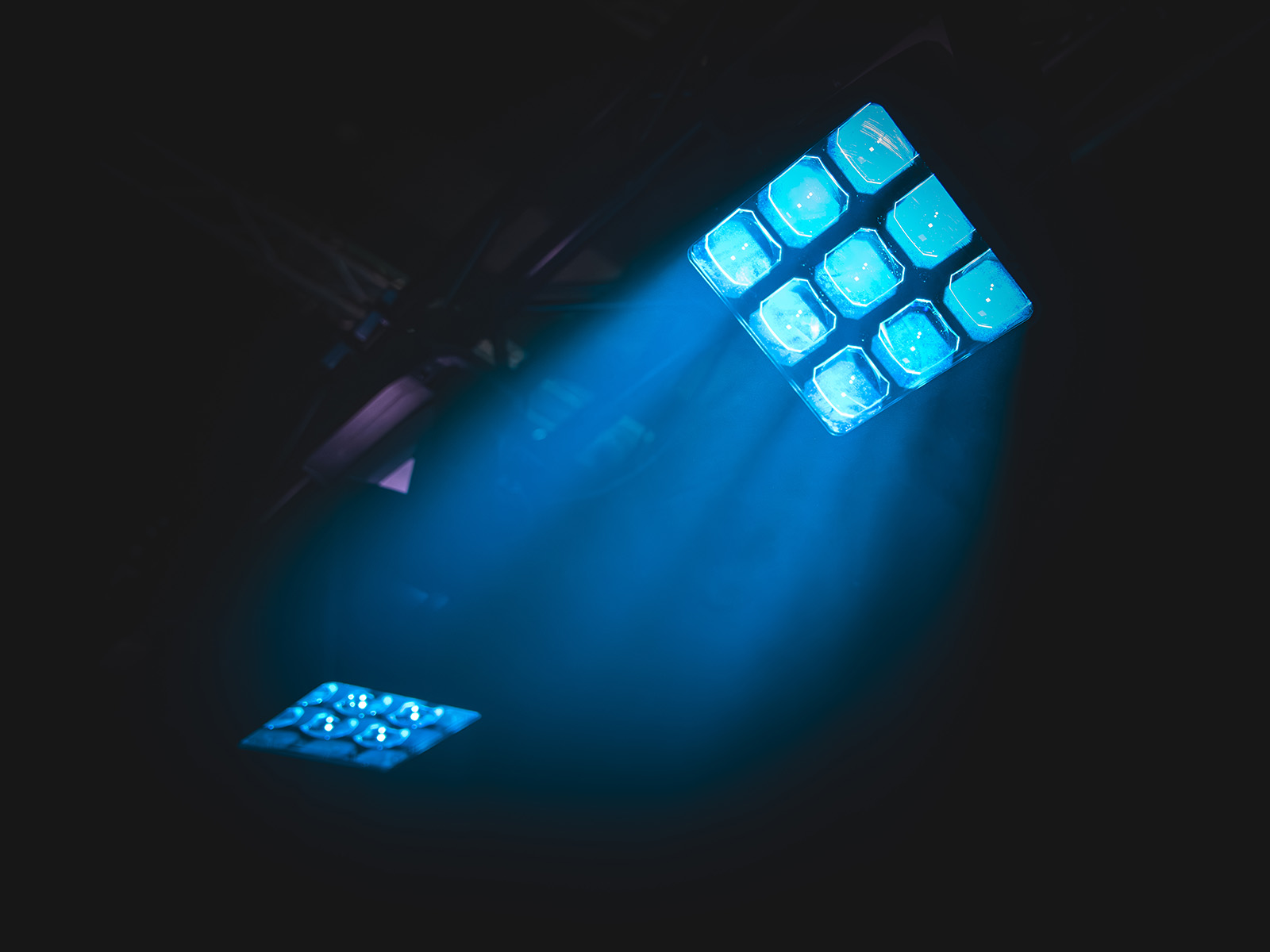

TWYN (general + LED Wash) – Product Data

  • Photometric Files: files/products/twyn-led-wash-product-data/GLP_Twyn_Photometrics_Rev20251216-1.zip
  • CAD Files: files/products/twyn-led-wash-product-data/GLP_Twyn_CAD_Rev20260410-1.zip
  • Info Material Files: files/products/twyn-led-wash-product-data/TWYN_ProductCard-20260112.pdffiles/products/twyn-led-wash-product-data/TWYN_preliminary-Rev20260122.pdffiles/products/twyn-led-wash-product-data/GLP_Twyn_DRX_Dual_Sleeve_Information_Rev20260325-1.pdf
  • Product Picture Gallery:

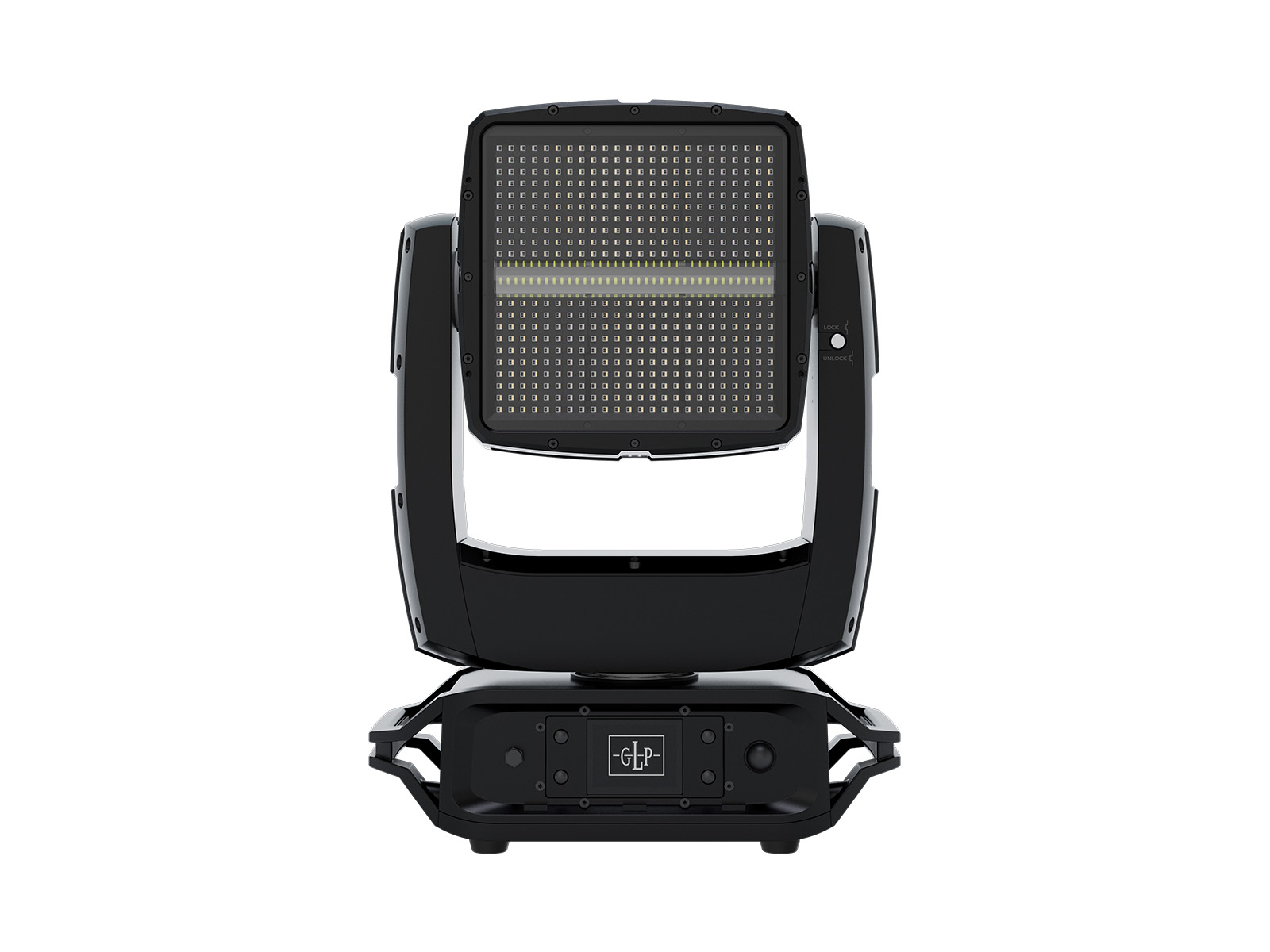

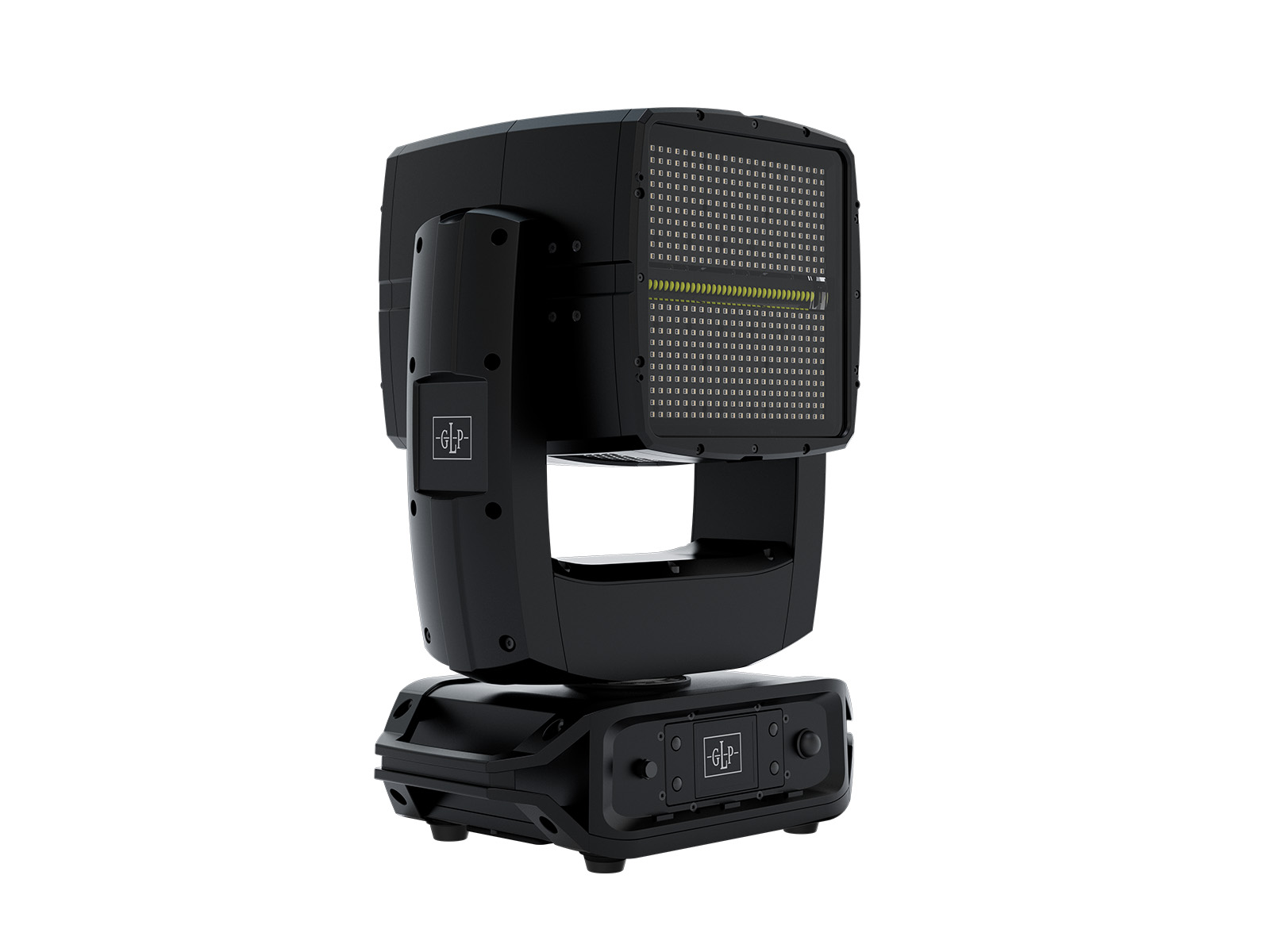

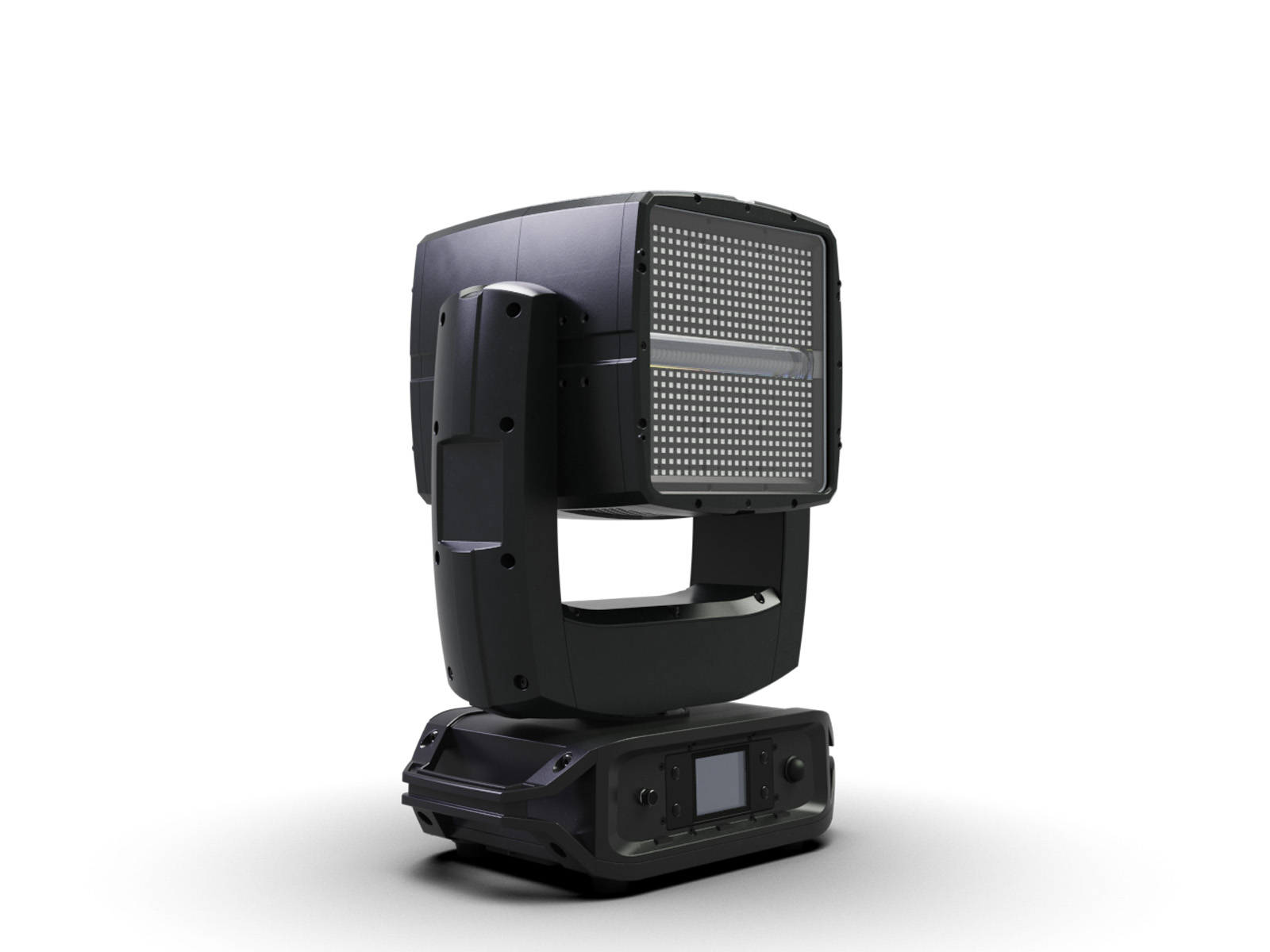

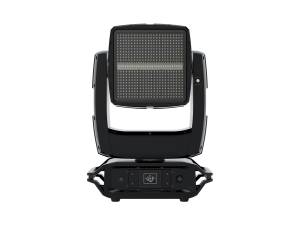

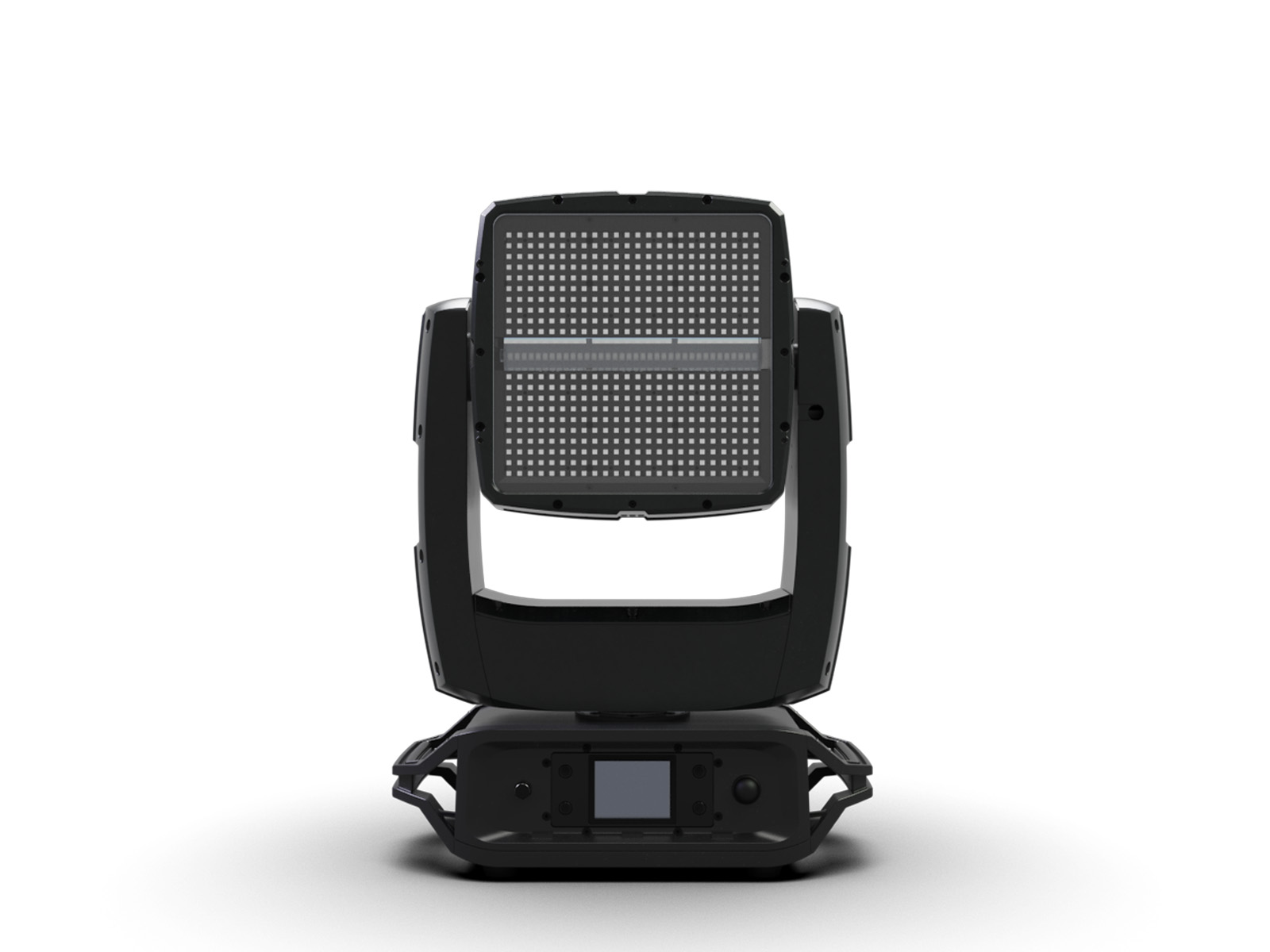

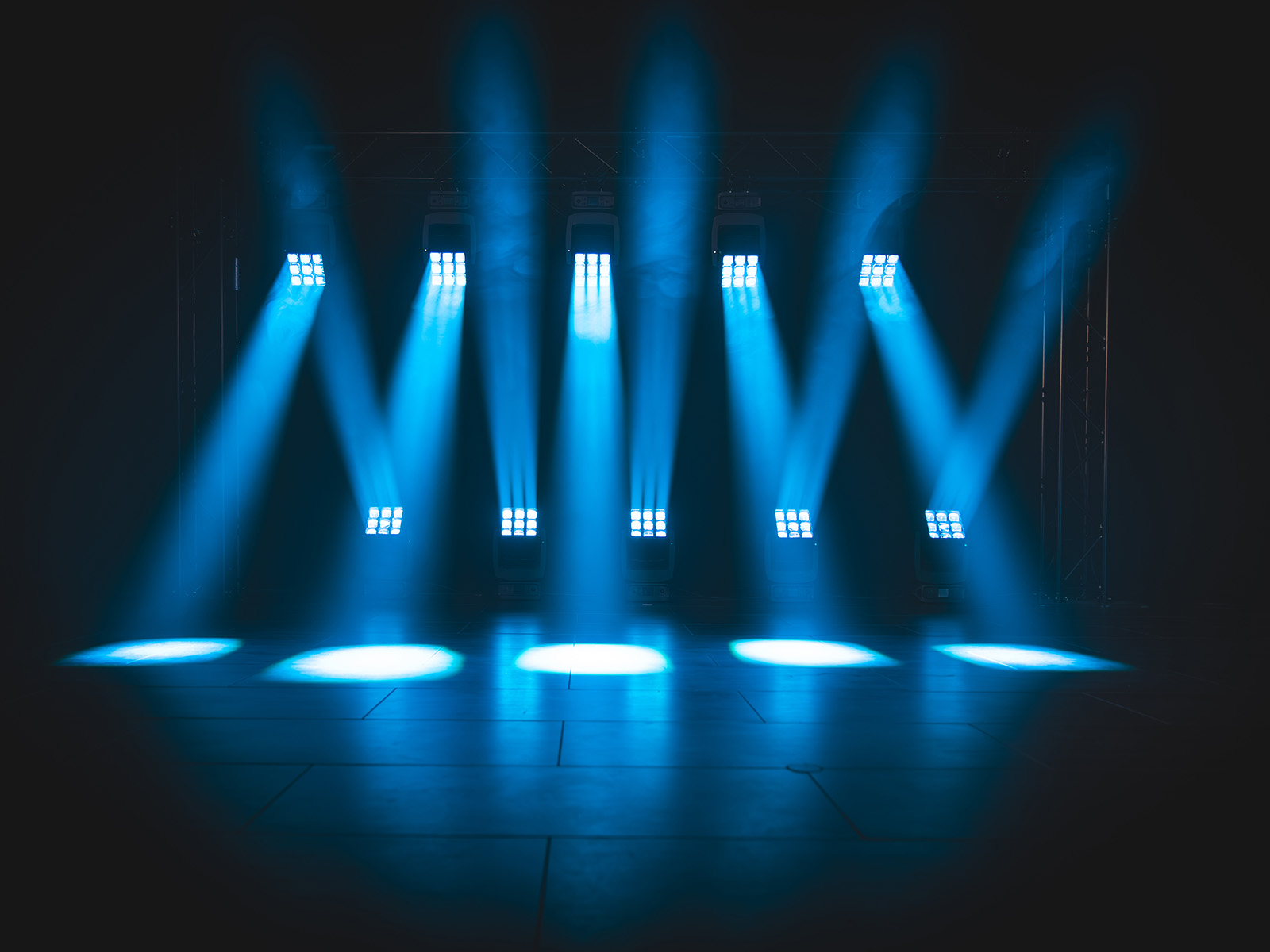

    TWYN Color Plates & Strobe Line

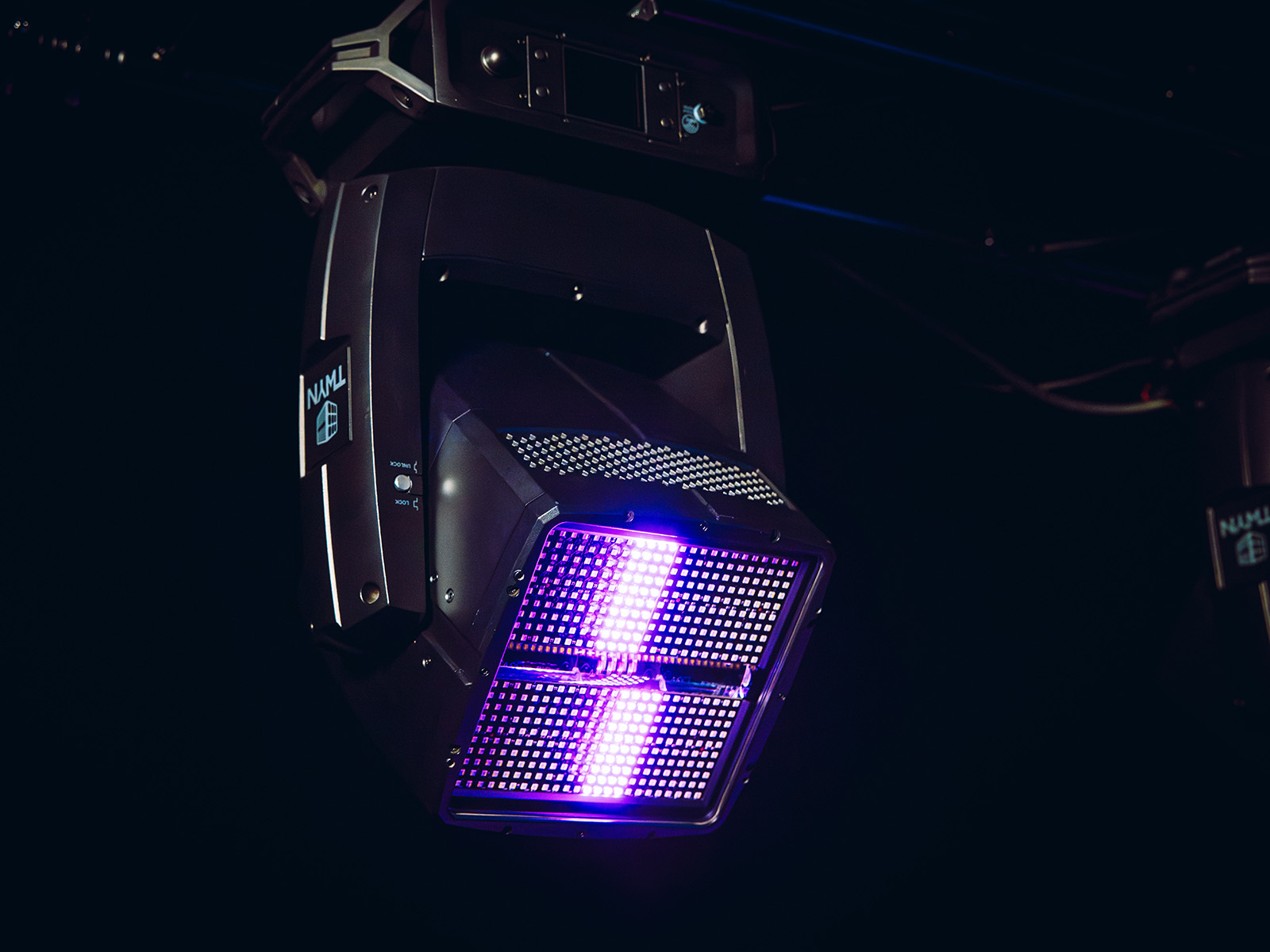

    TWYN LED Plates & Strobe Line

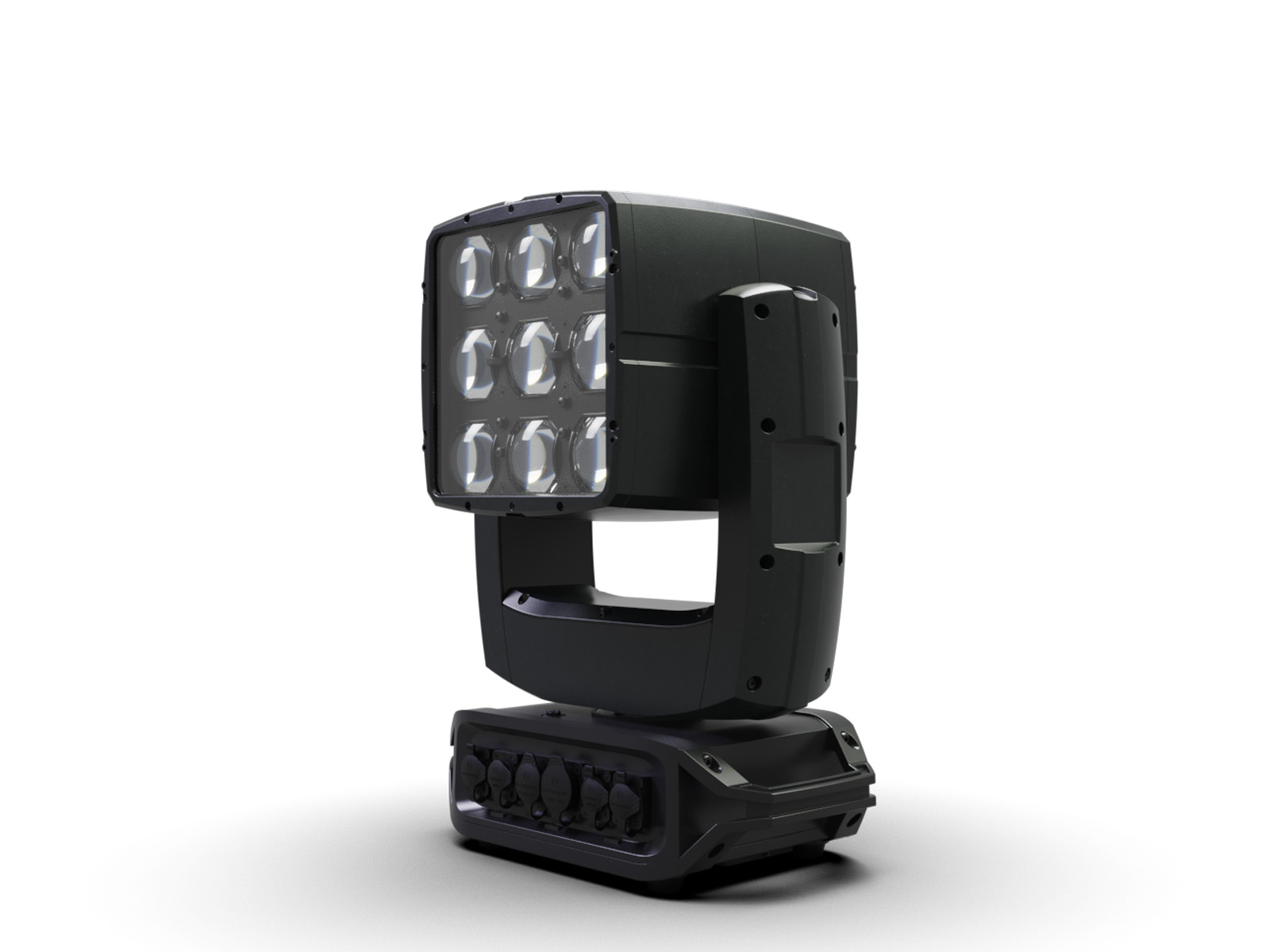

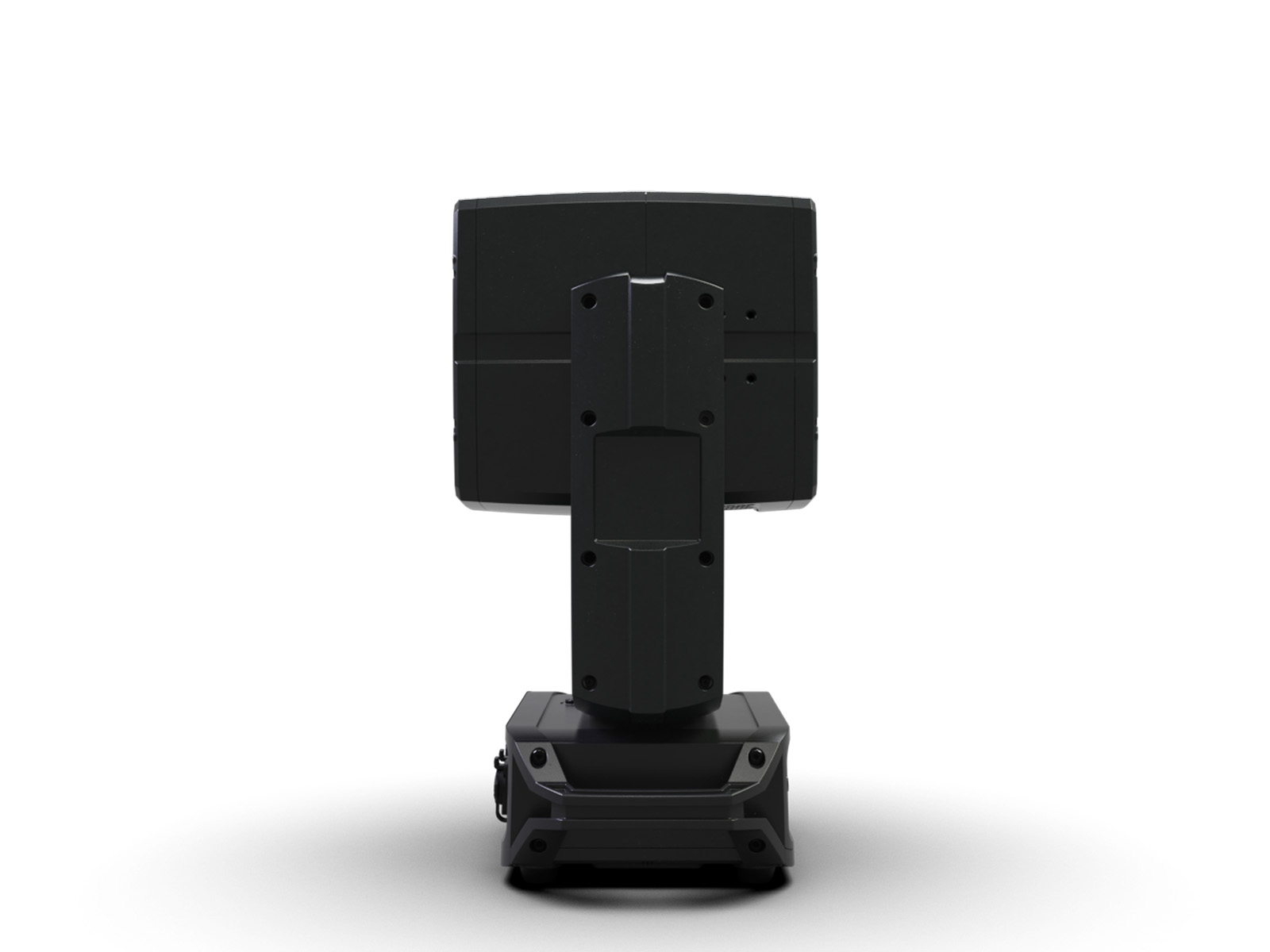

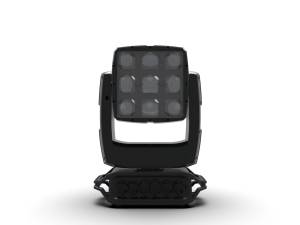

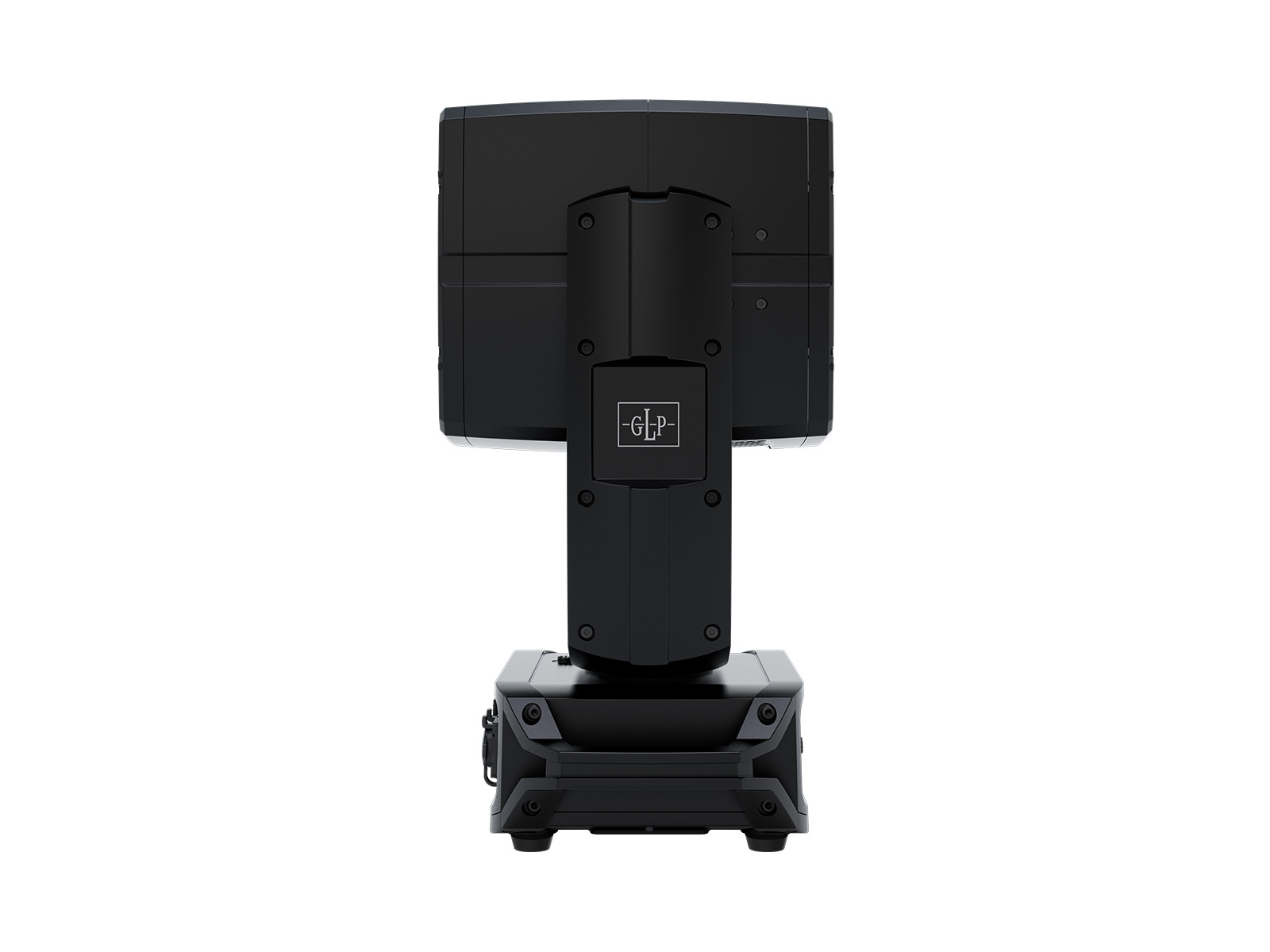

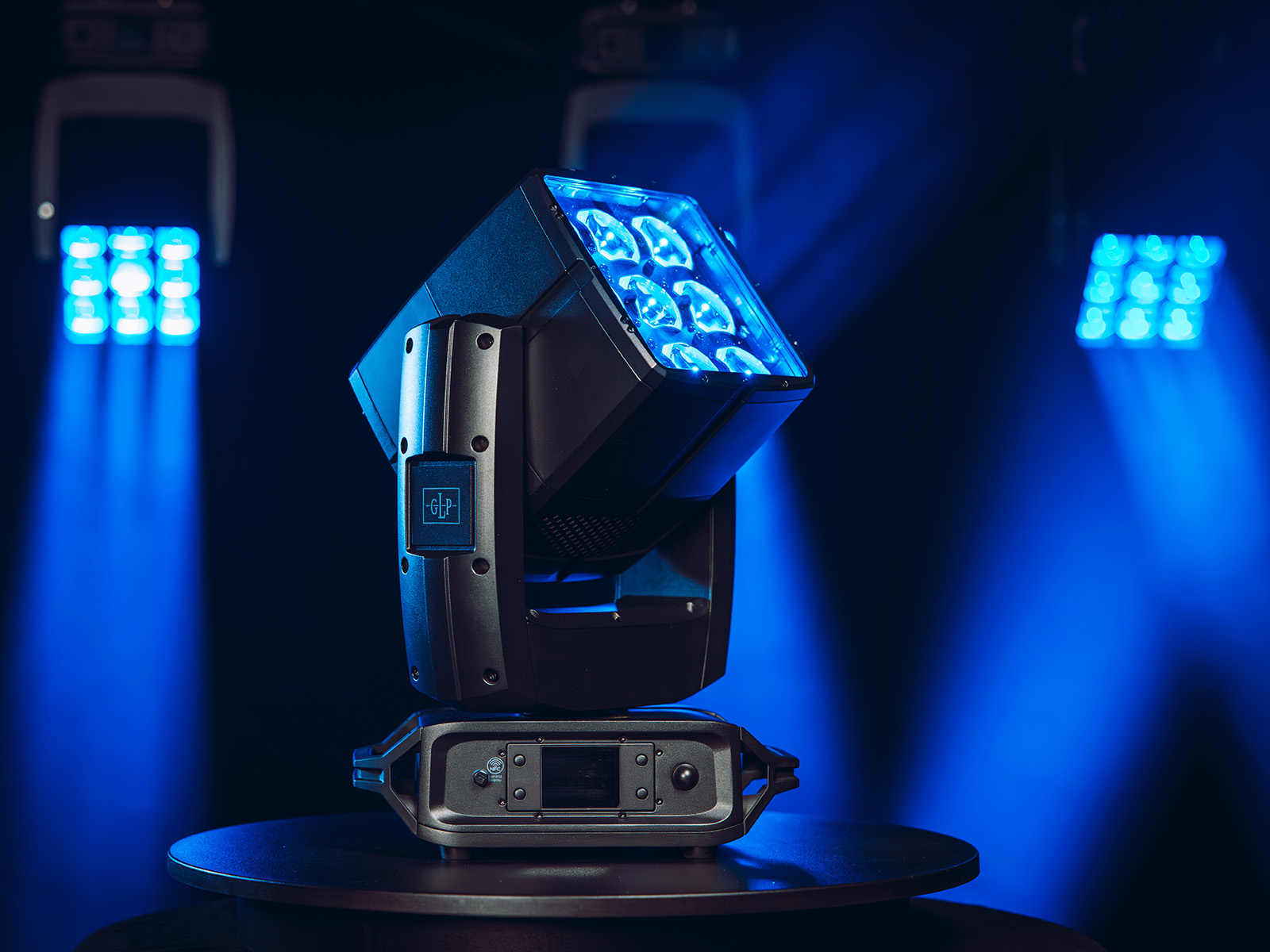

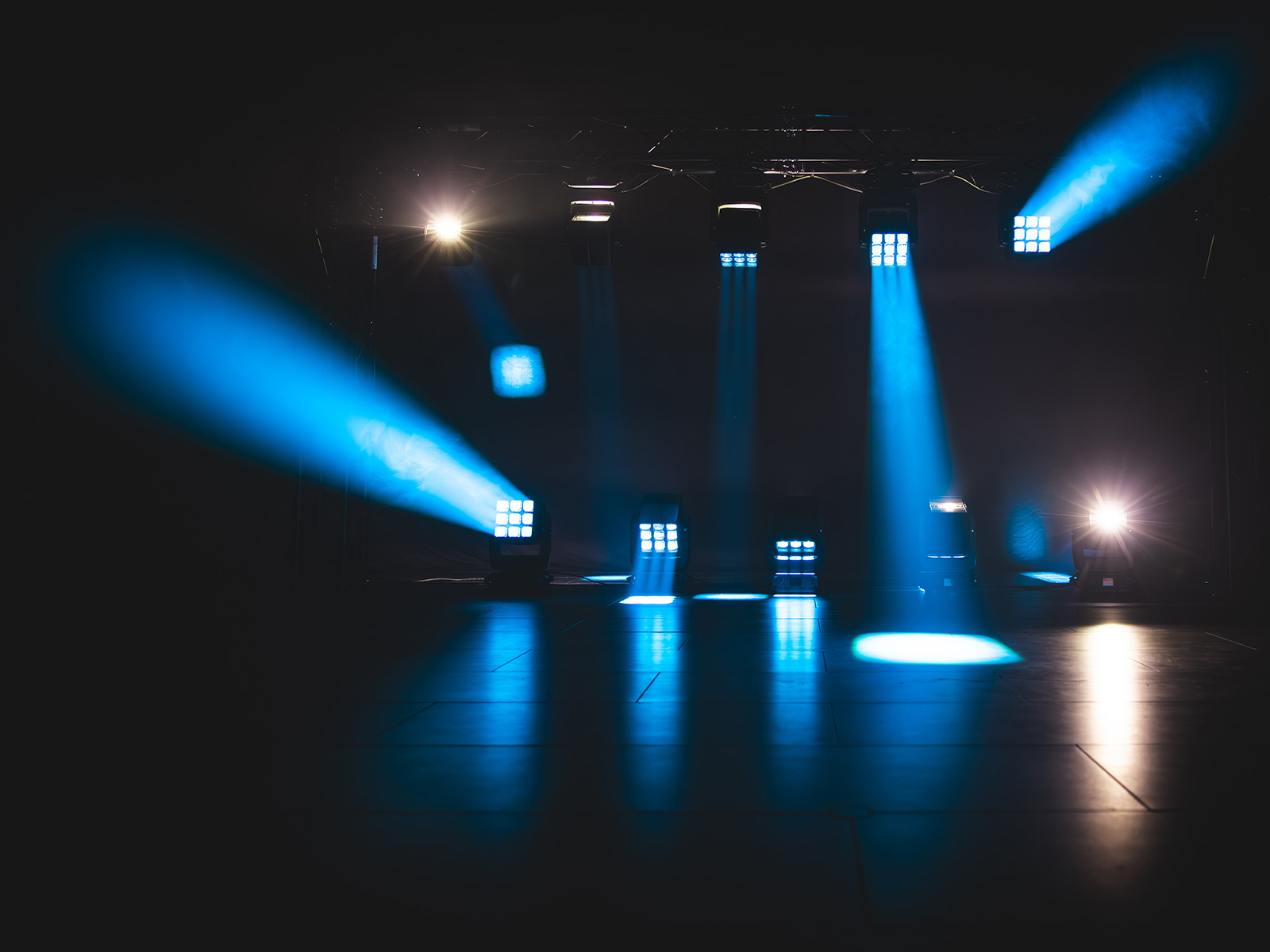

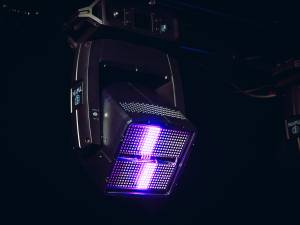

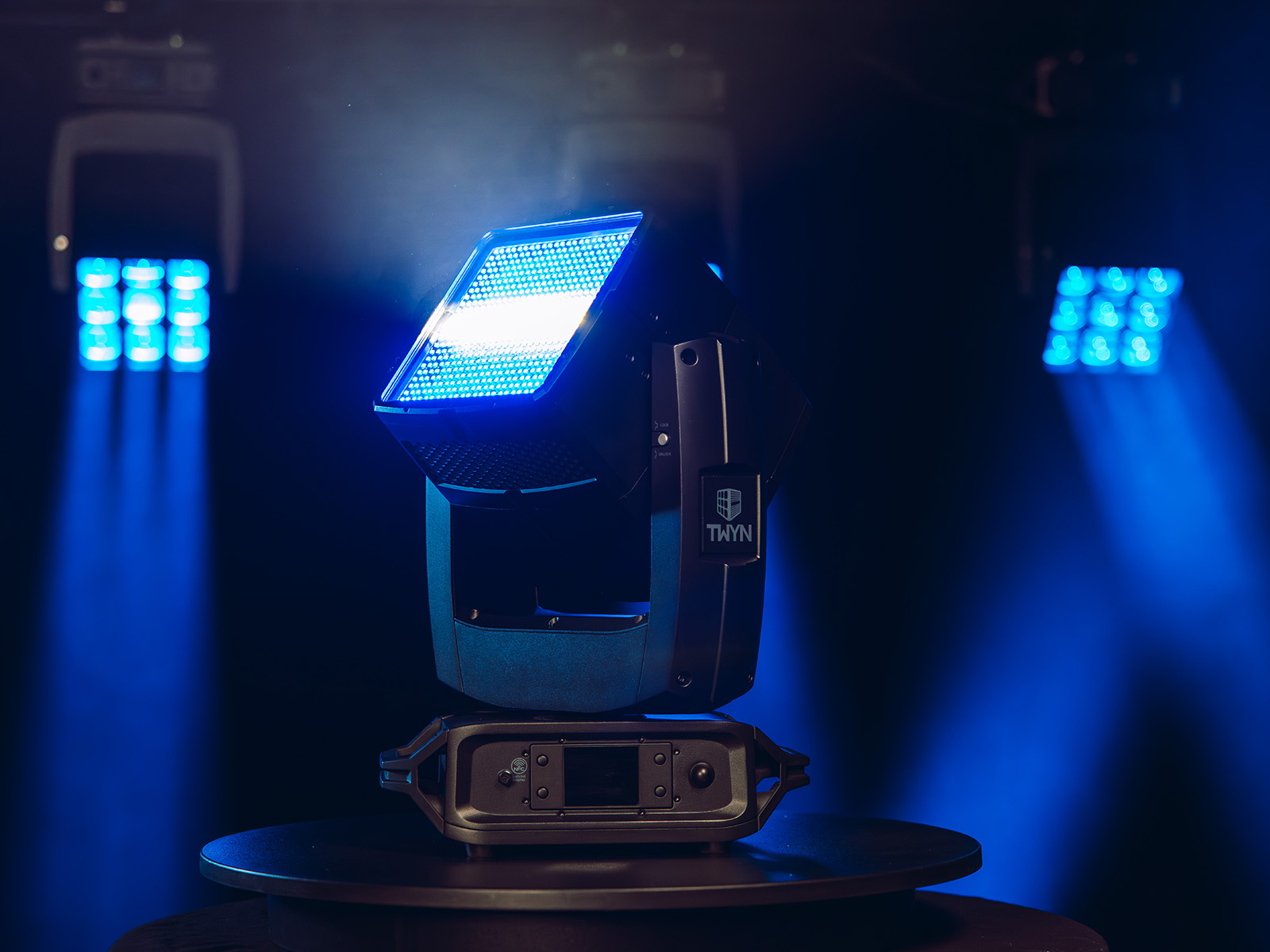

    TWYN

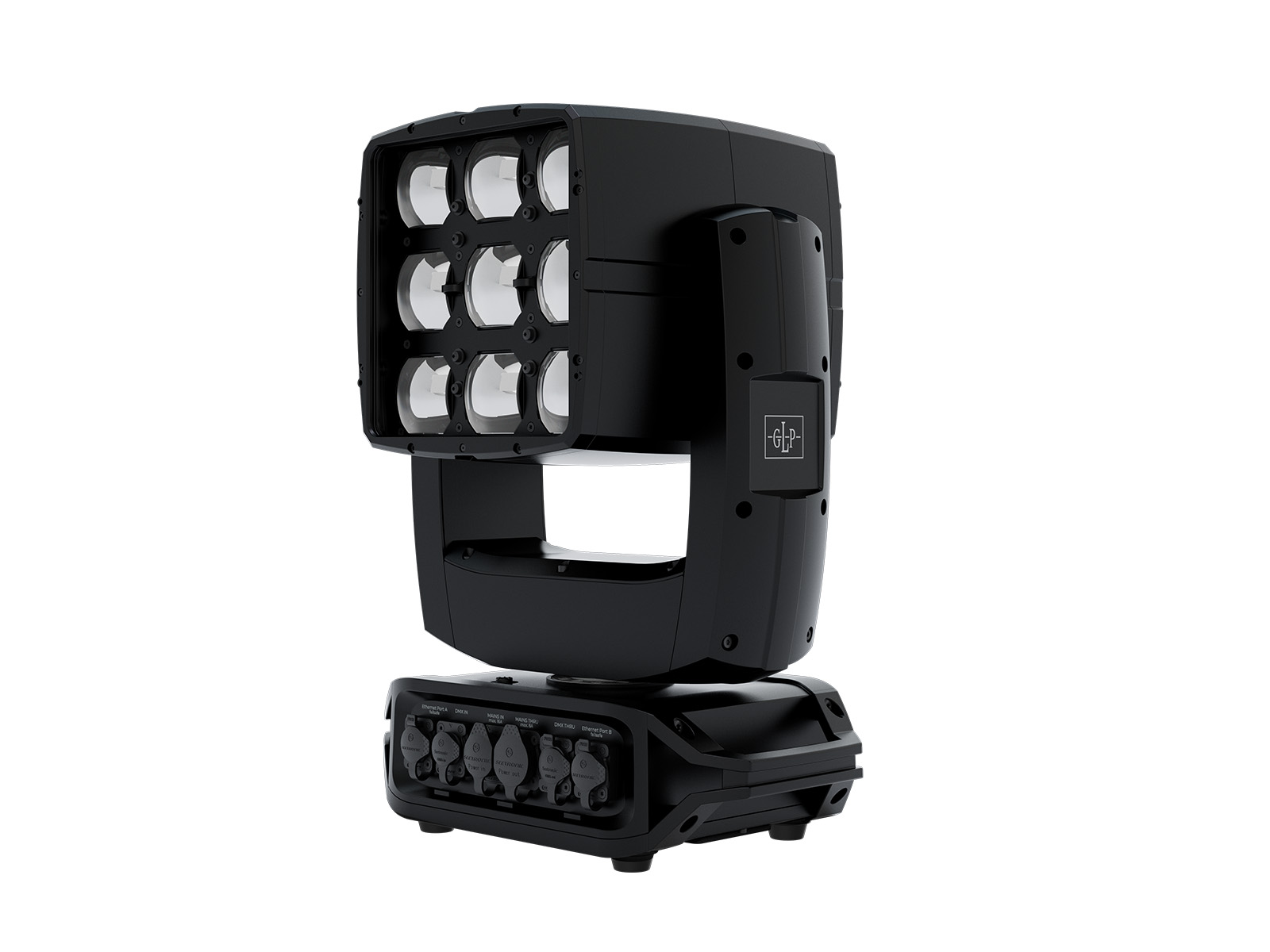

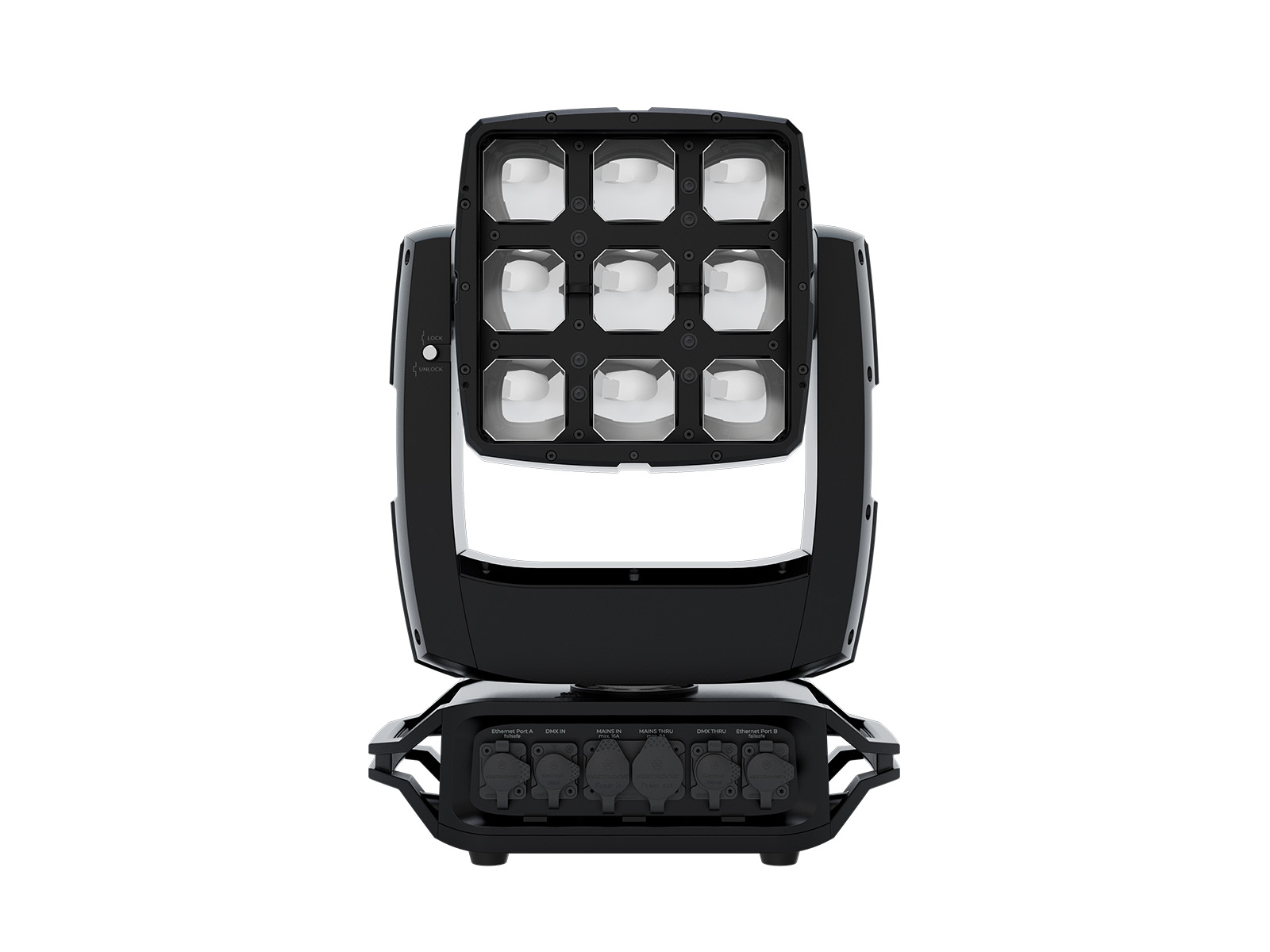

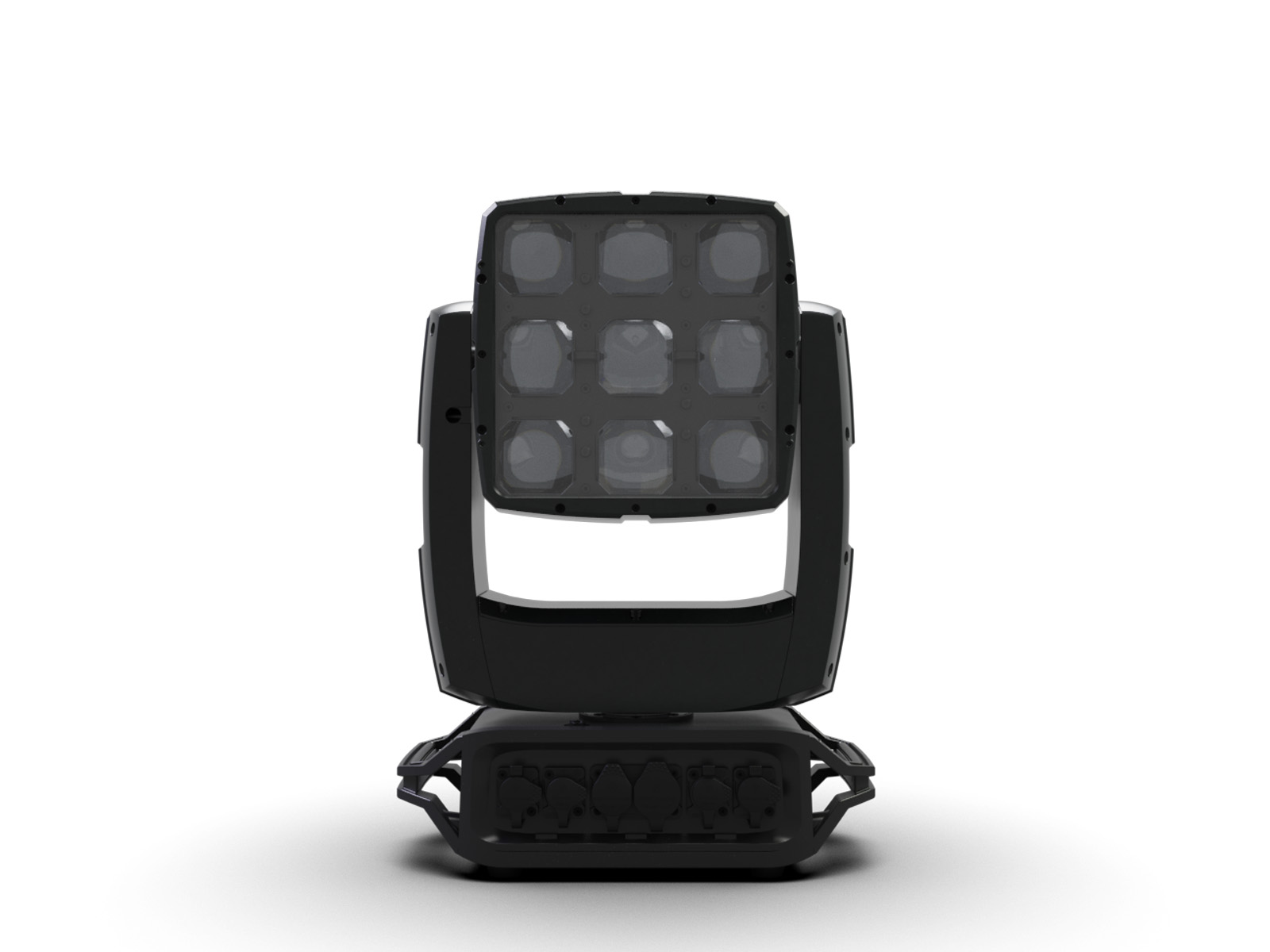

    TWYN Wash Part
    TWYN Wash Part
  • Product info:
    • Long product text (editor):

      This innovative dual-face moving head combines two powerful lighting systems in one compact fixture, with a perfect fixture match to GLP Creos and GLP JDC Burst 1. One side features a 3x3 RGBL wash array with a 4° to 53° zoom – similar to GLP Creos –, delivering up to 4,060 lumens and outstanding color quality (CRI >85). The reverse side transforms into a hybrid strobe inspired by the JDC Burst 1, with 36 white LEDs for explosive strobe effects and up to 22,800 lm output and 480 RGBW LEDs for vivid color accents and more than 12,400 lm output. With continuous pan and tilt rotation, iQ.Mesh integration, and a lightweight 16 kg design, this fixture offers exceptional flexibility and performance. Perfect for club tours, small venues, and mobile productions, it delivers maximum creativity with minimal setup. Supplied with the GLP DRX Dual Sleeve for safe transport and easy installation. The low investment price allows a quick ROI and to equip your stage with higher fixture quantity.
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out, 2x EtherCON In/Out (failsafe)
  • Aufbau:
    • Daten enthalten?: Aufbau, Eigenschaften: Tilt-Lock-System | Haltegriffe an der Base | Schraublöcher für Accessories, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Stahlblech, Glas, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Control Modes: tbd, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: tbd, Dimmerkurven: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Dimmer | Tilt | Colormix, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, GLP iQ.Mesh, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Tiefe (Kopf gerade hoch): 219 mm / 9 in, Höhe: 11,3 mm / 0.5 in, Höhe (Kopf gerade hoch): 479 mm / 19 in, Höhe (mit Bracket): 468 mm / 18 in, Gewicht (netto): 16 kg / 35 lbs, Breite (Arm zu Arm): 331 mm / 13 in, Mindestabstand Mitte zu Mitte: 335 mm / 13 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Dimmer / Shutter: 0 – 100%, 16 bit, Duration Channel: Pan | Tilt | Zoom | Dual Layer Dynamic Pattern Effects
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 800 W
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: 3x3 Linsen / Pixel, 9 Linsen gesamt, Leistung: pro Pixel: 40 W | gesamt: 360 W, Typ: RGBL
  • Installation:
    • Daten enthalten?: Installation, Standort: indoor, outdoor, Befestigung: 2 Paar 1/4-Drehverschlüsse, 1 Öse für Sicherungskabel, Ausrichtung: beliebig, Mindestabstand zu beleuchteten Oberflächen: 1,0 m
  • Bewegung:
    • Daten enthalten?: Bewegung, Pan Angle: 360° kontinuierlich, 16 bit, Tilt Angle: 360° kontinuierlich, 16 bit
  • Optisches System:
    • Daten enthalten?: Optisches System, Frontlinse: Zoom-Objektiv System, Lichtaustrittsfläche: 180 x 180 mm / 7.08 x 7.08 in, max. Zoom: 53°, min. Zoom: 4°, Maximale Lichtintensität: 575 kcd, Licht-Output: bis zu 4.060 lm
  • Light Source:
    • Data Category: Light Source, Count: 3x3 lenses per pixel, 9 Lenses total, Power: each Pixel: 40 W | total: 360 W, Type: RGBL
  • Lieferung:
    • Daten enthalten?: Lieferung, einzelnes Gerät: Karton, Tourpack: 6-fach
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Dimmer / Shutter: 0 – 100%, 16 bit, Duration Channel: Pan | Tilt | Zoom | Dual layer with dynamic pattern effects
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 2.800 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: -10 °C / 14 °F
  • Connections:
    • Data Category: Connections, Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, 2x EtherCON In/Out (failsafe)
  • Construction:
    • Data Category: Construction, Construction features: Tilt-Lock-System | Base Handles | Accessory Screw Threads, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, glass, Protection Rating: IP65
  • Movement:
    • Data Category: Movement, Pan Angle: 360° continuous, 16 bit, Tilt Angle: 360° continuous, 16 bit
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 800 W
  • Installation:
    • Data Category: Installation, Location: Indoor, Outdoor, Mounting: 2 pairs of 1/4-turn locks, 1 eyelet for safety cable, Orientation: any, min. distance to illuminated surfaces: 1.0 m
  • Shipping:
    • Data Category: Shipping, single fixture: carton, Tourpack: 6-way
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Depth (head straight up): 219 mm / 9 in, Height: 11.3 mm / 0.5 in, Height (head straight up): 479 mm / 19 in, Height (with bracket): 468 mm / 18 in, Weight (netto): 16 kg / 35 lbs, Width (across yoke): 331 mm / 13 in, min. center-to-center-distance: 335 mm / 13 in
  • Optical System:
    • Data Category: Optical System, Front lens: Zoom Lens System, Light Aperature: 180 x 180 mm / 7.08 x 7.08 in, max. Zoom: 53°, min. Zoom: 4°, Peak Luminous Intensity: 575 kcd, Total Output: up to 4,060 lm
  • Control & Programming:
    • Data Category: Control & Programming, Control Modes: tbd, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: tbd, Dimming curves: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Dimmer | Tilt | Colormix, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, RDM, GLP iQ.Mesh, Software update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: combined convection and forced air, Overheating protection: automatic, Total heat dissipation: 2,800 BTU/h, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: -10 °C / 14 °F

LED Color Plate und LED Strobe Line in Produkt-Beiträgen!!!

  • Hits: 681

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

WildWash 12 – Product Data

  • Info Material Files: files/products/wildwash-12-product-data/WildWash-12_ProductCard-20260112.pdf
  • Product Picture Gallery:

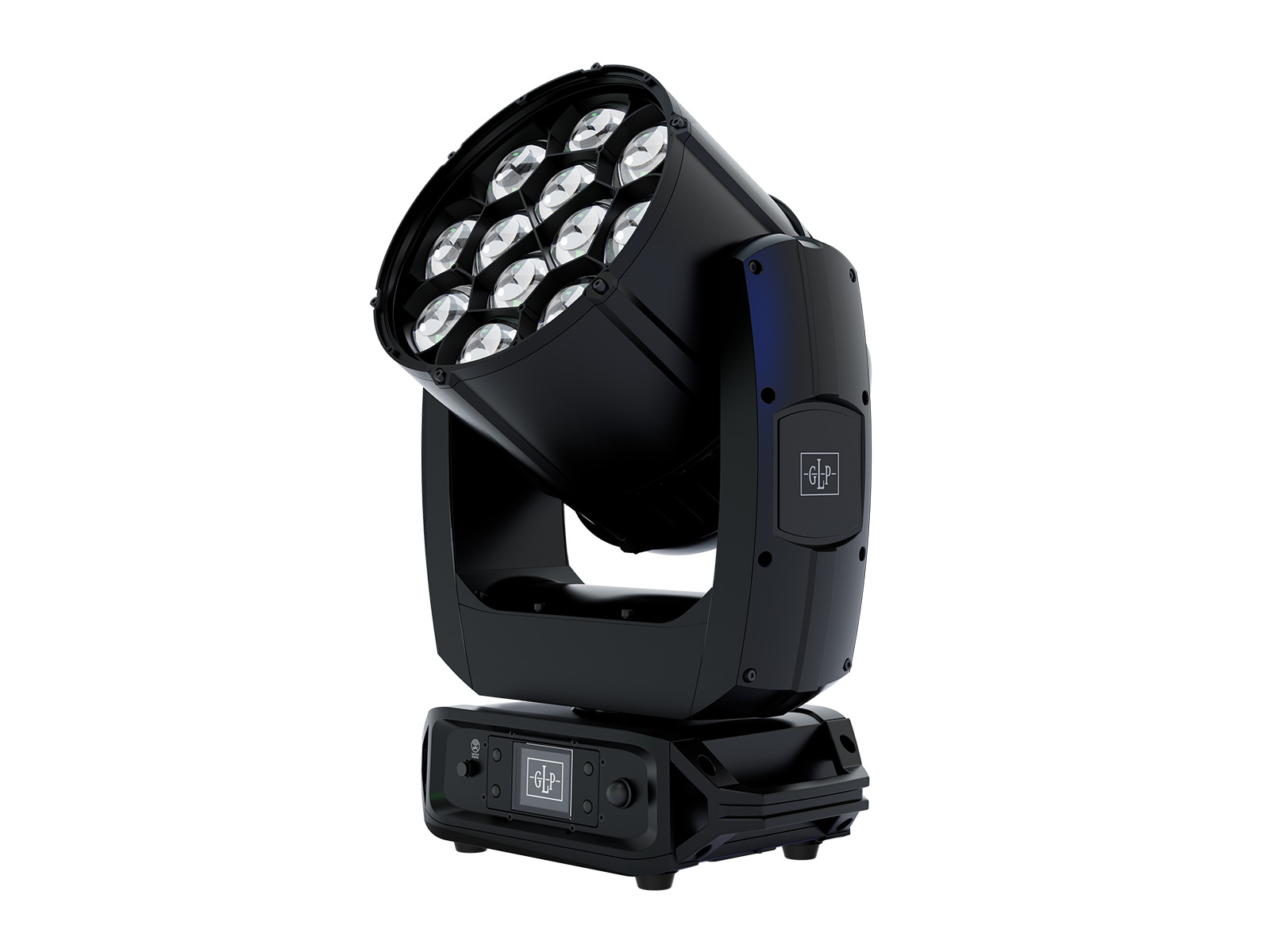

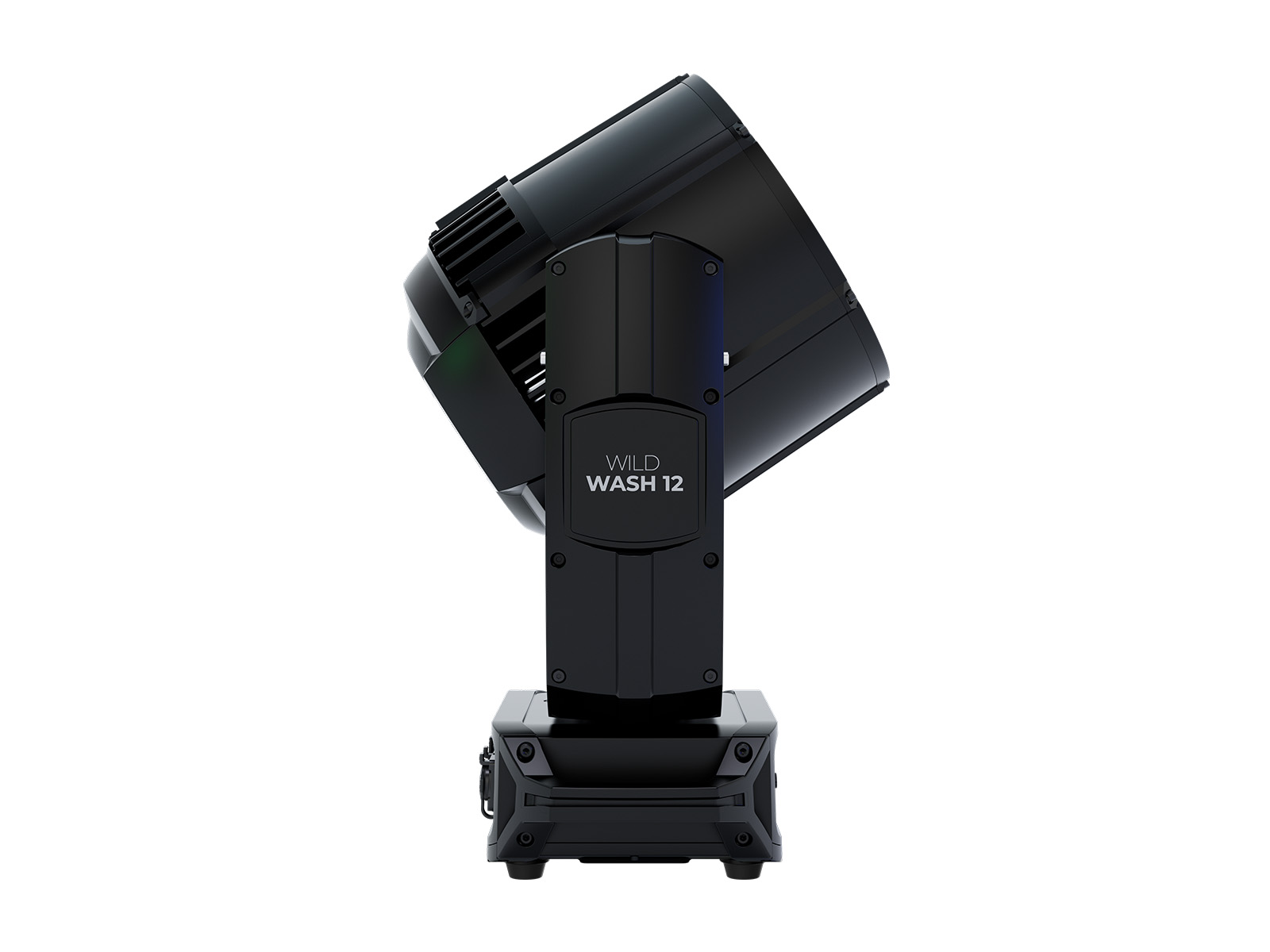

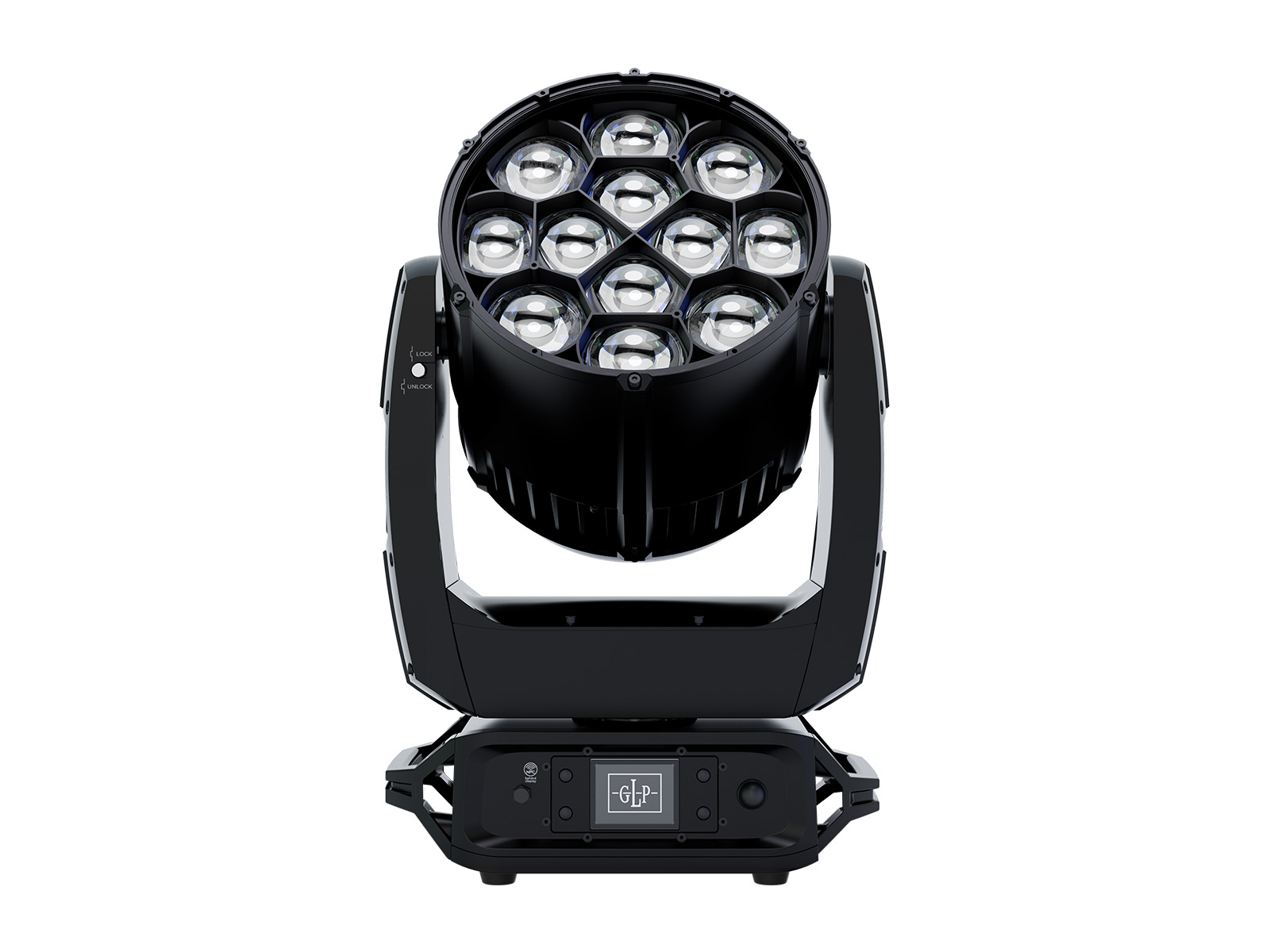

    WildWash 12
    WildWash 12
    WildWash 12
    WildWash 12
  • Product info:
    • Long product text (editor):

      The GLP WildWash 12 is a compact LED wash with 12x 40W RGBL LEDs, up to 5,790 lm and iQ.Gamut Color synergy. The zoom optics offer very narrow 3.5° beam angle up to to up to 54° field angle for homogeneous illumination. It features the GLP menu display with iQ.Mesh for easy setup and wireless updates. Flexible mounting is supported via integrated camlocks, and each unit includes a GLP DRX Sleeve. Ideal for efficient, high-performance use in clubs, small installations, mobile productions, and festivals.
  • Aufbau:
    • Daten enthalten?: Aufbau, Schutzklasse: IP65
  • Optisches System:
    • Daten enthalten?: Optisches System, Lichtaustrittsfläche: 225 mm / 8.85 in, max. Zoom: 54°, min. Zoom: 3,5°, Maximale Lichtintensität: 1,08 Mcd, Licht-Output: bis zu 5.790 lm, Zoomverhältnis: 1:19
  • Lieferung:
    • Daten enthalten?: Lieferung, einzelnes Gerät: Karton, DRX Sleeve/s (inklusive)
  • Construction:
    • Data Category: Construction, Protection Rating: IP65
  • Shipping:
    • Data Category: Shipping, single fixture: carton, DRX Sleeve/s (included)
  • Optical System:
    • Data Category: Optical System, Light Aperature: 225 mm / 8.85 in, max. Zoom: 54°, min. Zoom: 3.5°, Peak Luminous Intensity: 1.08 Mcd, Total Output: up to 5,790 lm, Zoom ratio: 1:19
  • Hits: 124

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

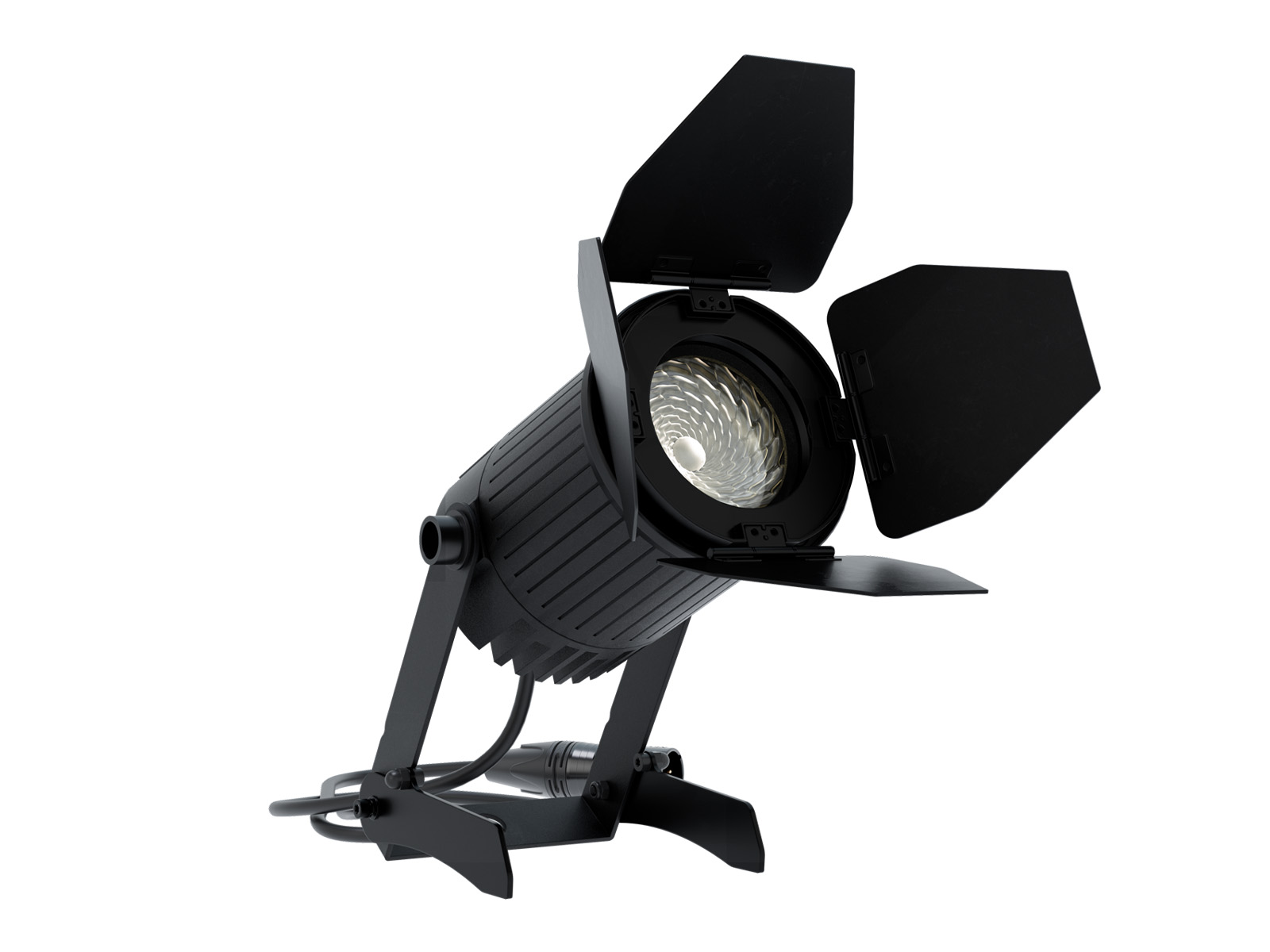

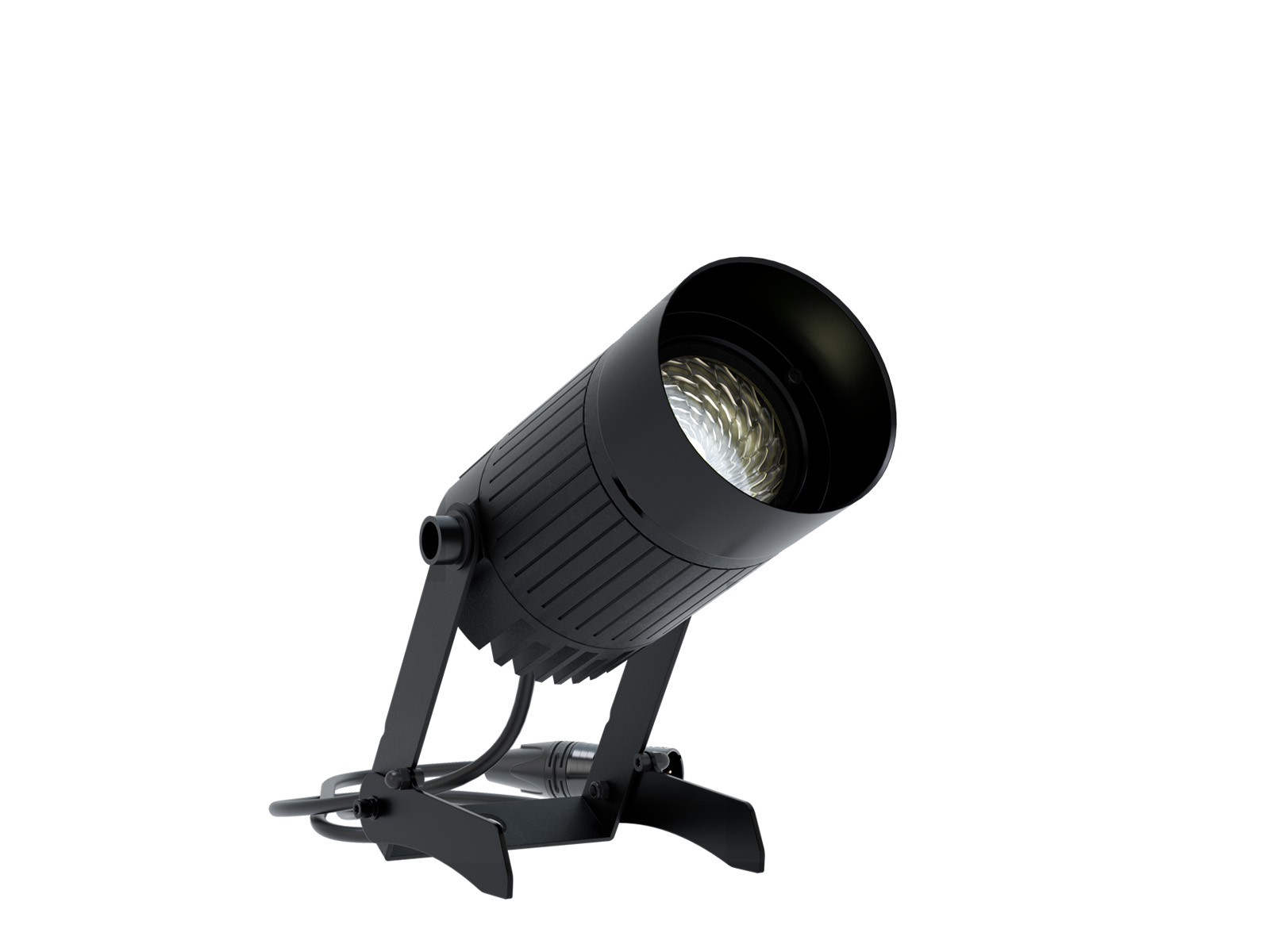

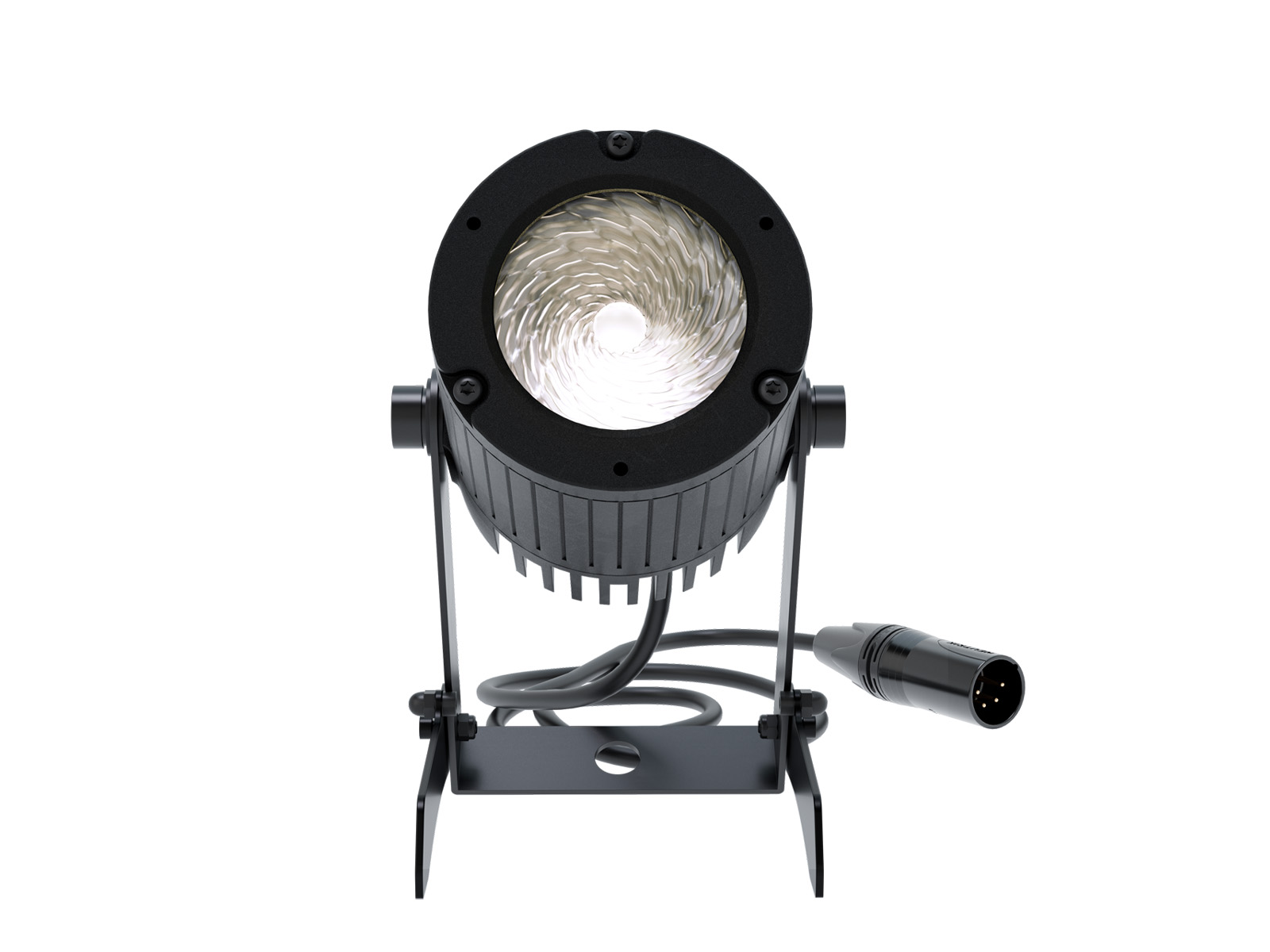

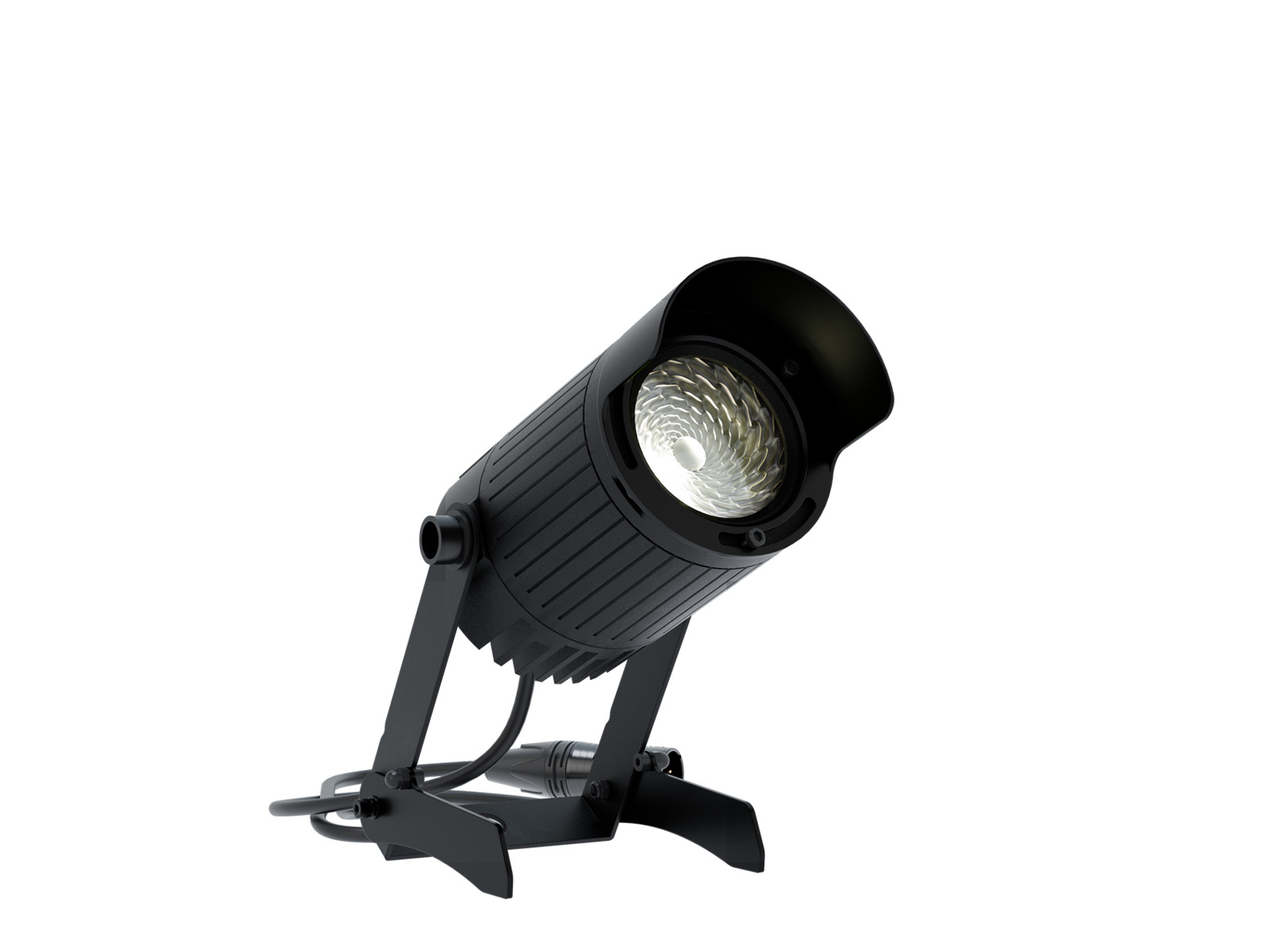

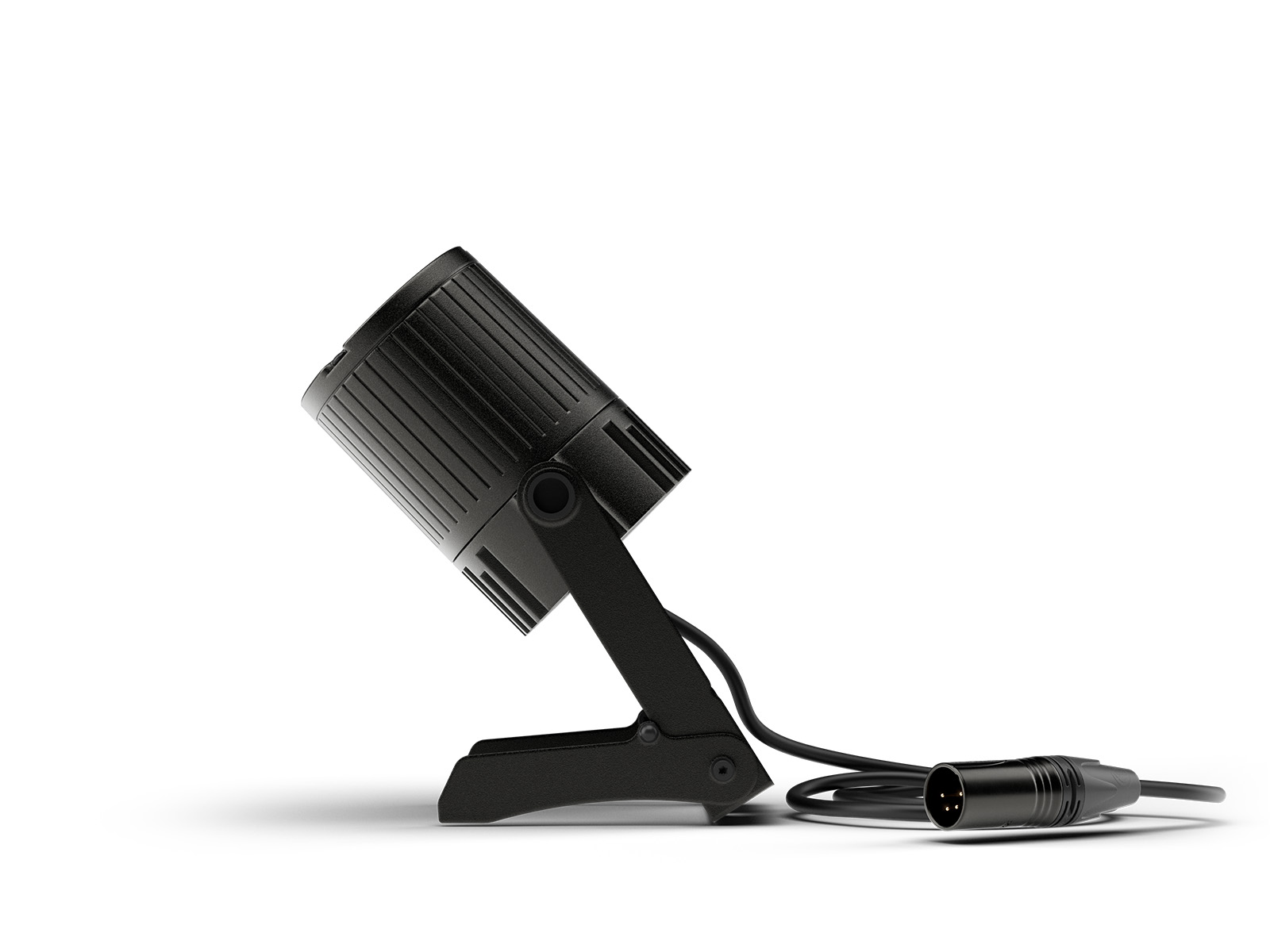

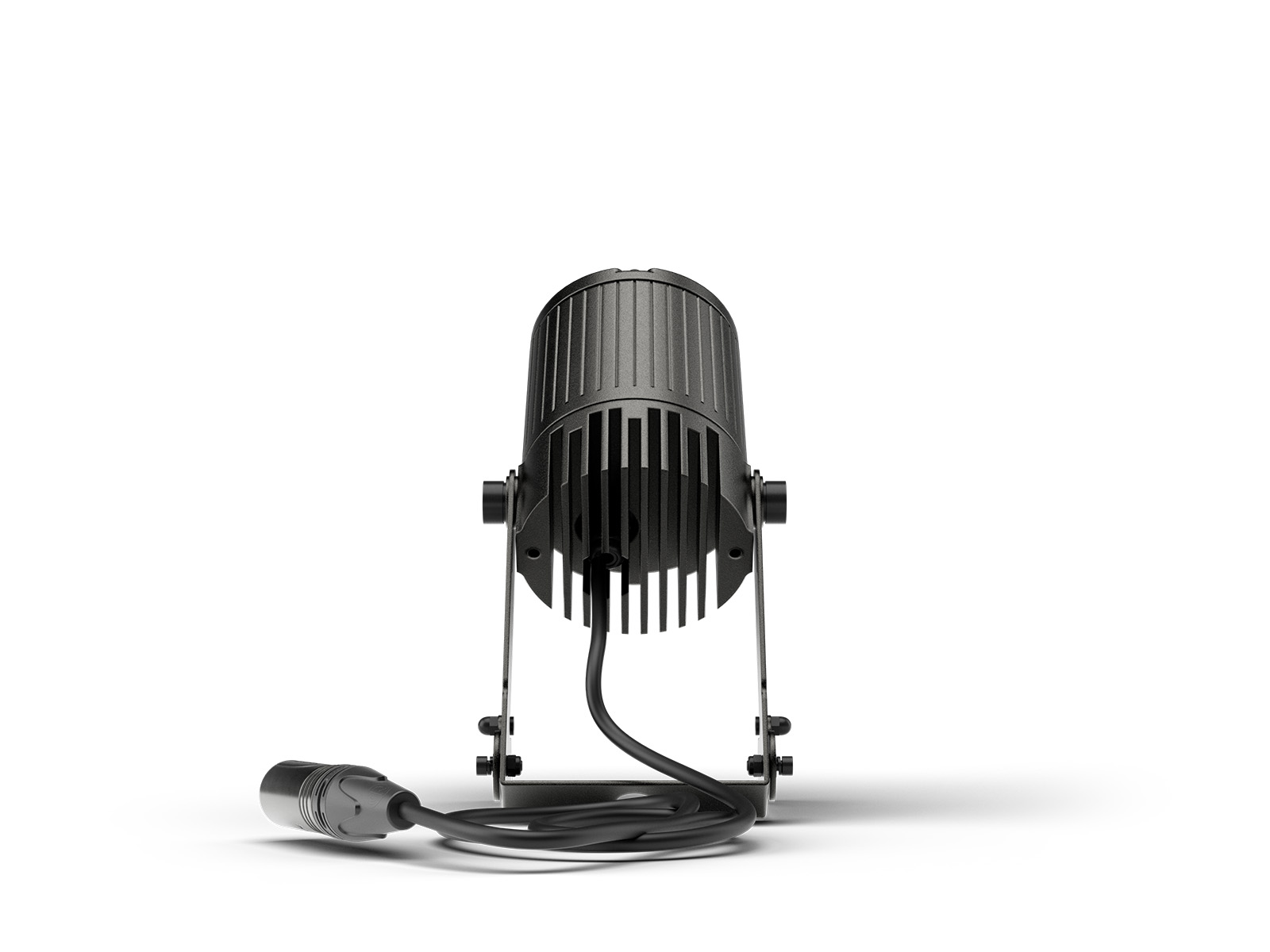

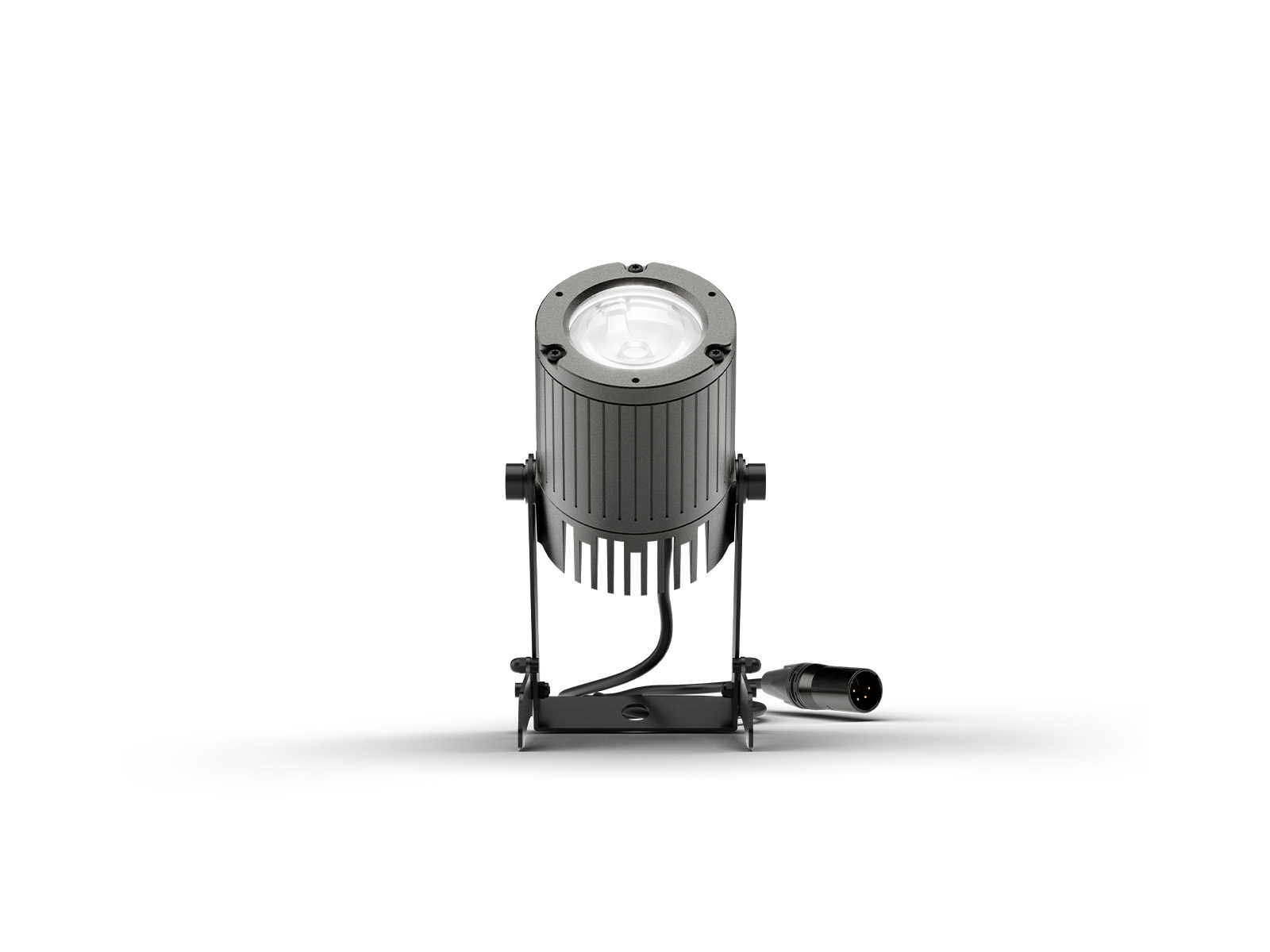

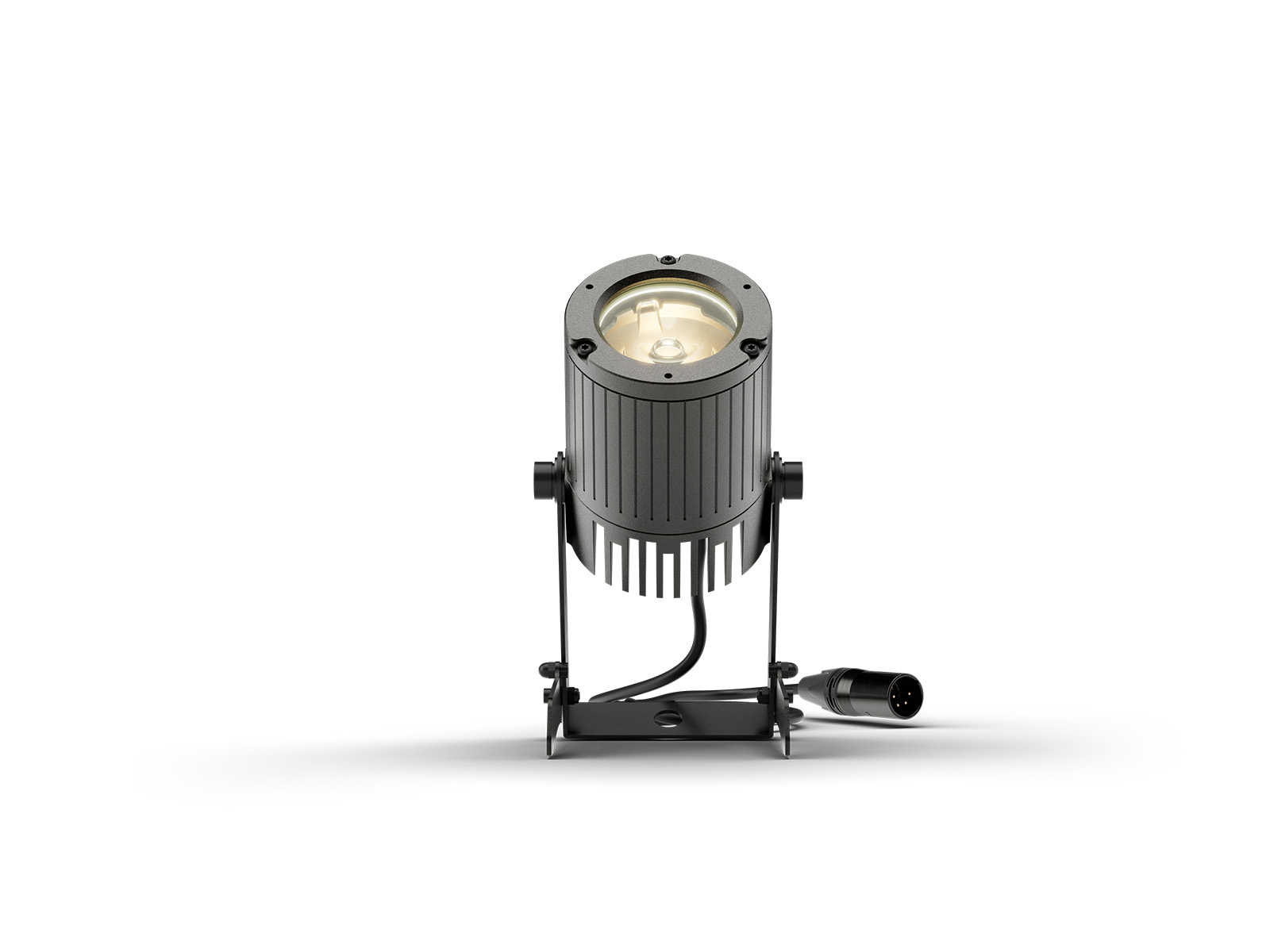

X5 Dot Wash – Technical Data

  • CAD Files: files/products/x5-dot-technical-data/GLP_X5_Dot_Wash_Vectorworks_Rev20260309-1.zip
  • Info Material Files: files/products/x5-dot-technical-data/X5-Dot_preliminary_Rev20260115.pdffiles/products/x5-dot-technical-data/X5-Dot_ProductCard-20260115.pdf
  • Product Picture Gallery:

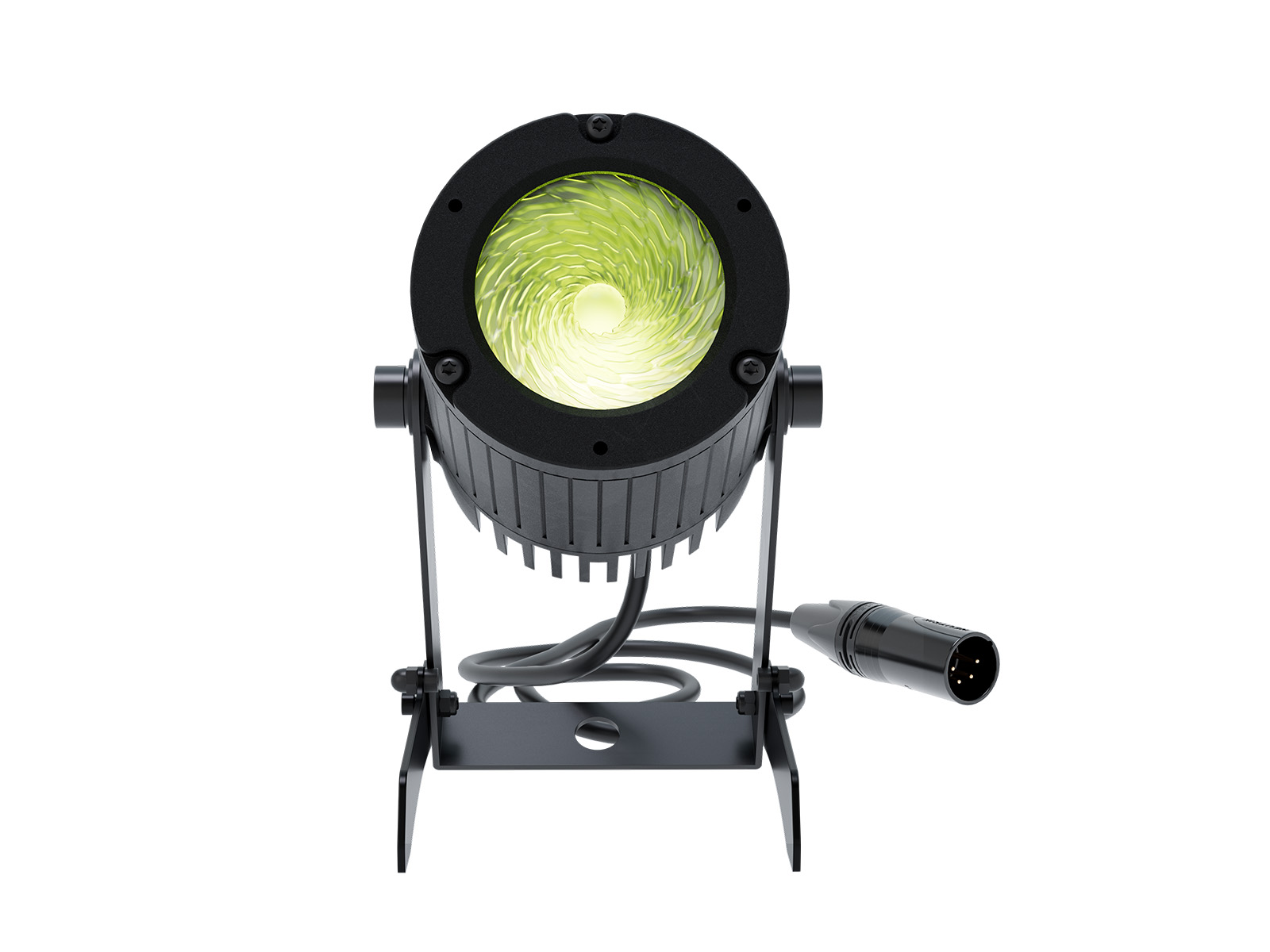

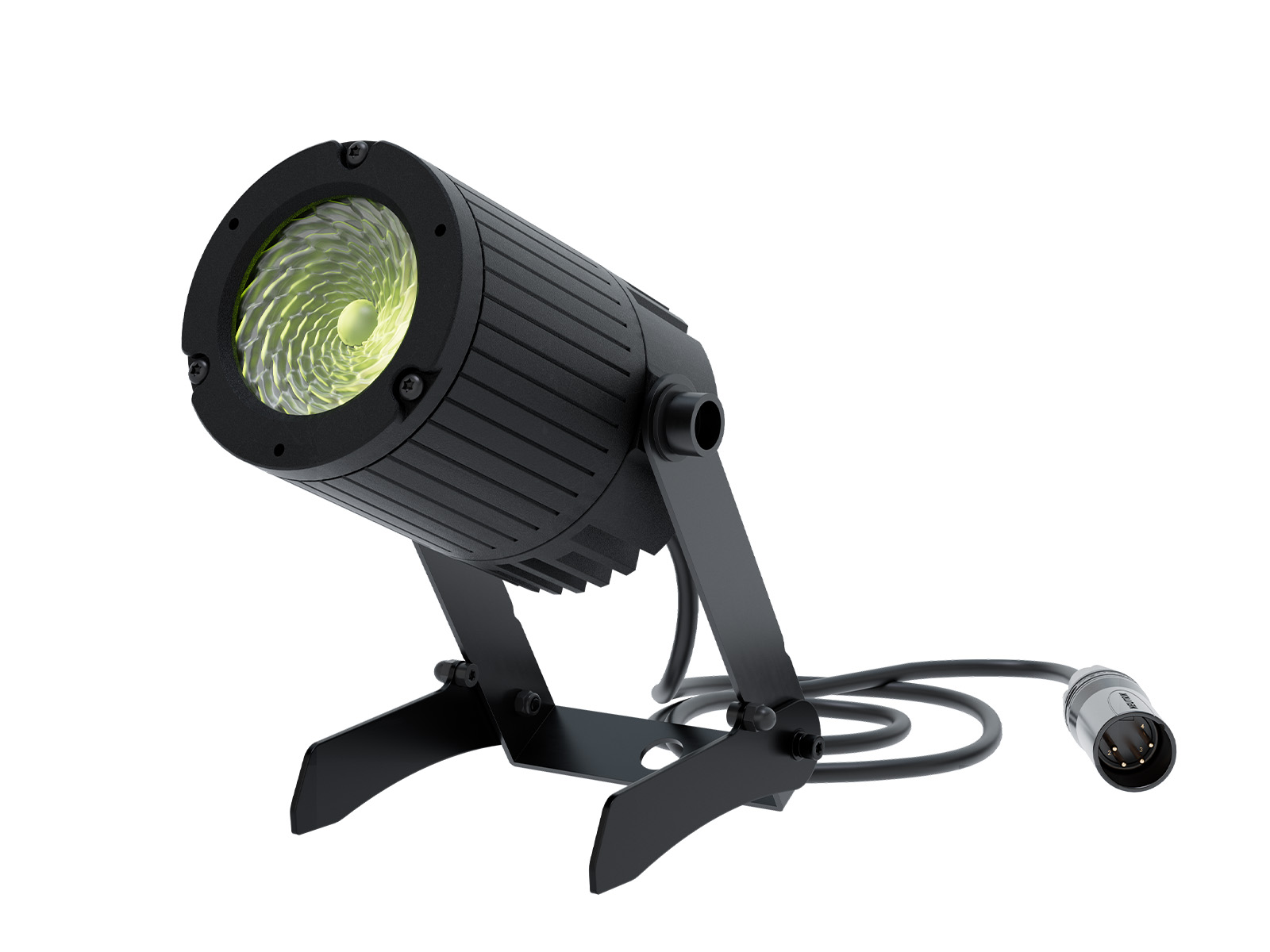

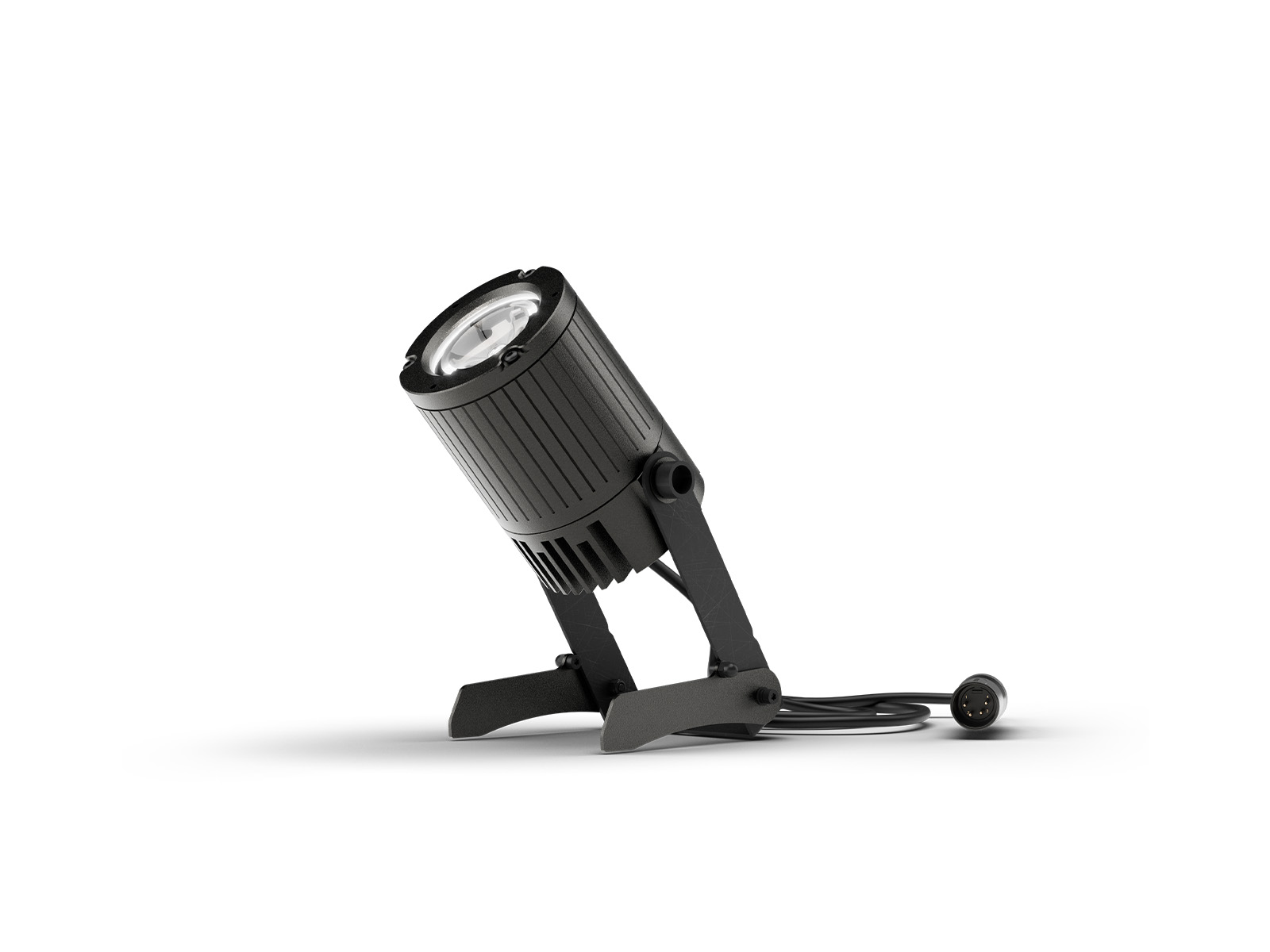

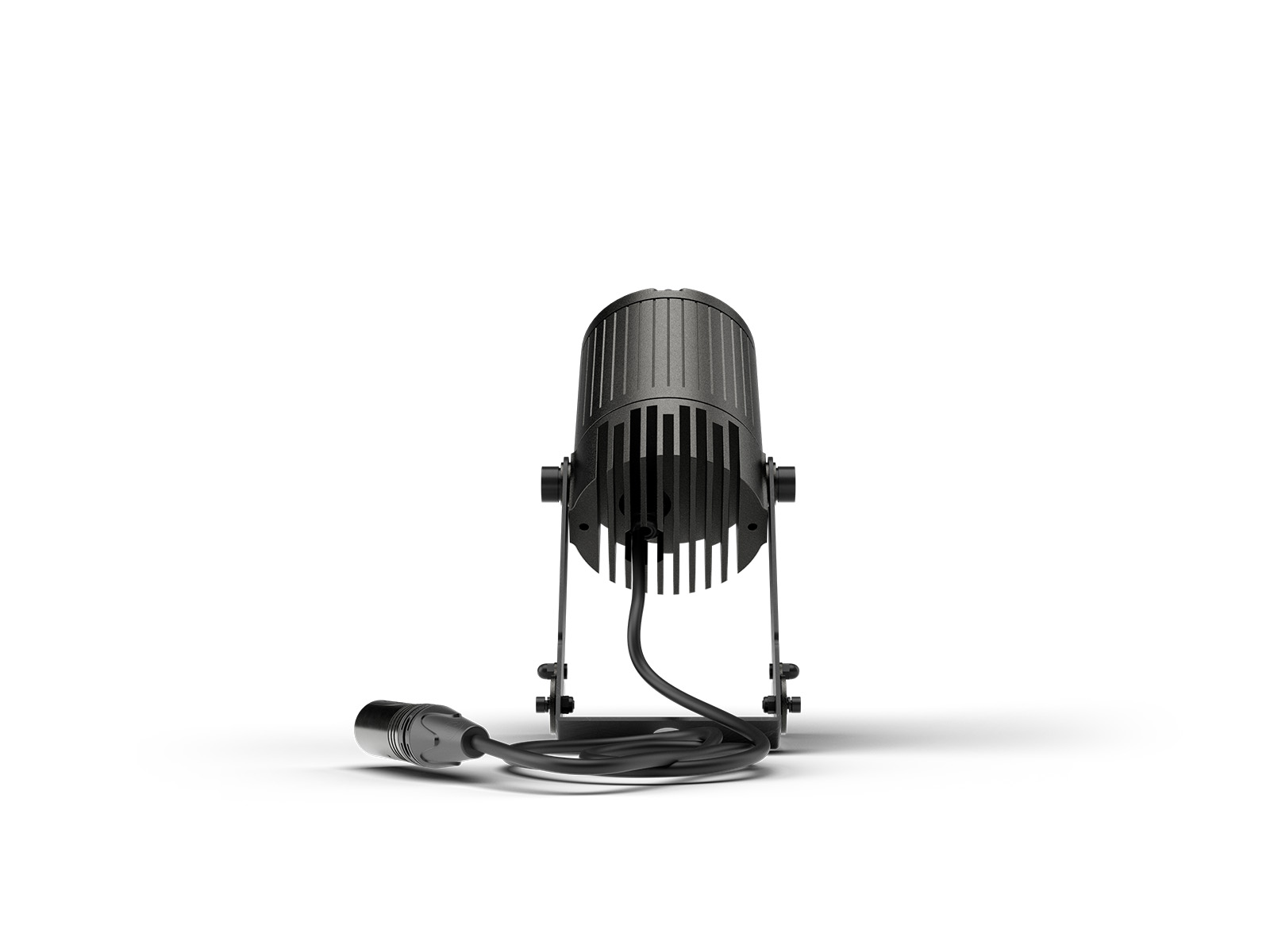

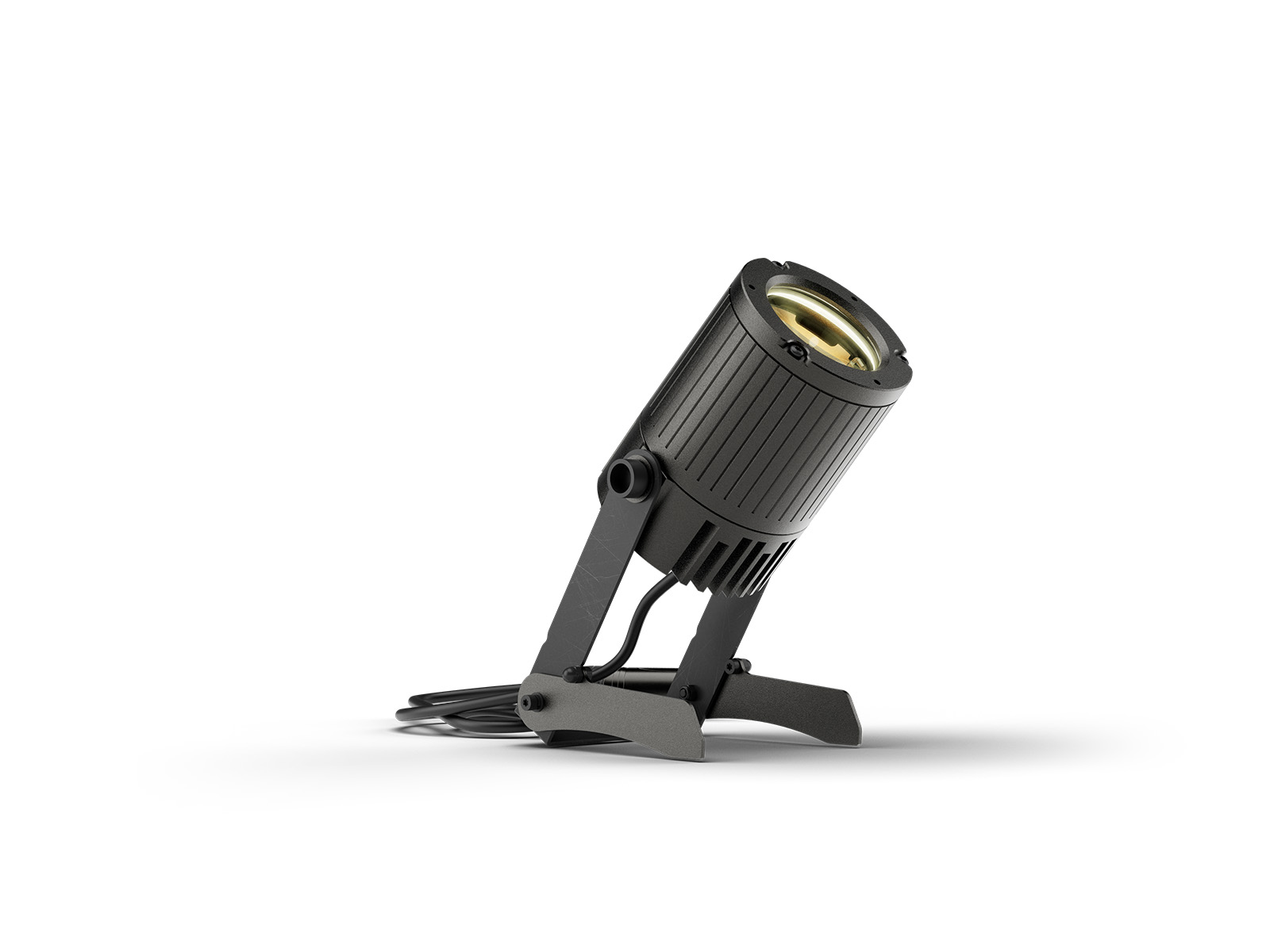

    X5 Dot Wash
    X5 Dot Wash
  • Product info:
    • Long product text (editor):

      The X5 Dot Wash is an extremely compact mini-washlight and has been designed to solve the problem of getting great light quality and high CRI from a small LED based fixture that is no larger than an MR16 Birdie.

      The GLP X5 Dot Wash uses a 40W RGBL LED from the impression X5 Series to give high CRI across a large color gamut and has been critically acclaimed across the theatrical and televisual markets. Its small body and sleek design allow it to be tucked into small locations – whether seen or unseen.

      It features 16-bit color control and an color match to the X5 Series. The integrated exclusive Twist-Zoom-Mechanism allows manual zoom from 16 to 68 degrees without altering the fixture’s body. Its IP65 rating ensures plenty of use options. The X5 Dot runs on 24 – 48 V DC from any external power source and can run wirelessly or wired for data.

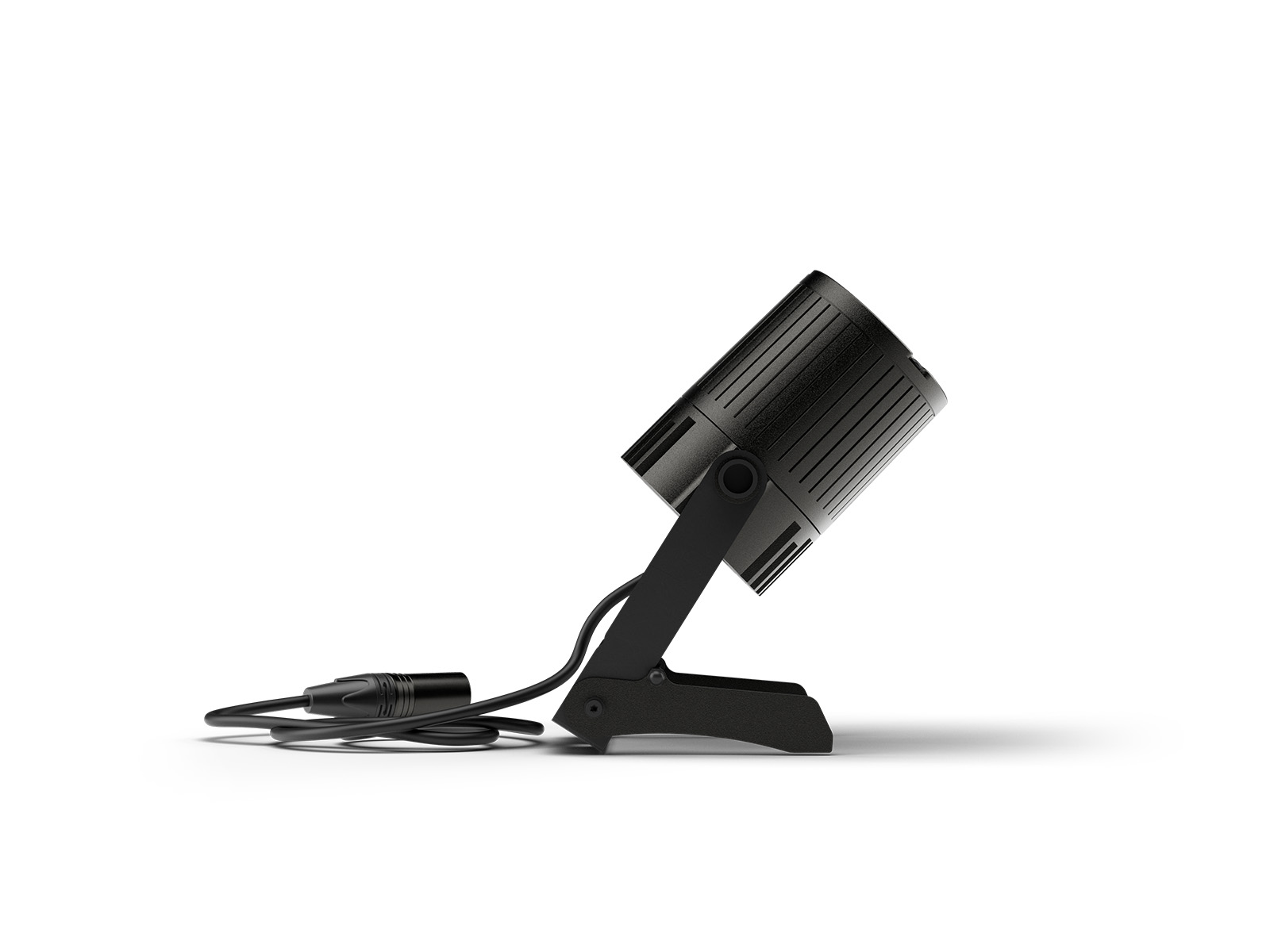

      If people prefer the classic birdie look, the optional accessory adapter fits any existing accessories.

      , Short product description: Compact mini-washlight, high CRI, IP65 certified, iQ.Gamut color algorithm of the X5 Series
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Schutzerdung: Kombiniertes Power/Data-Kabel, 750 mm; mit XLR 4-Pin Anschluss
  • Aufbau:
    • Daten enthalten?: Aufbau, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, High-Res Channels: Dimmer, Einstellung und Adressierung: DMX, RDM, GLP iQ.Mesh, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Gewicht (netto): 580 g / 1.28 lbs
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Farbmischung: RGBL, Dimmer / Shutter: 0 – 100%, 16 bit
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Netzanschluss Input: 24 – 48 V DC, Netzteil: extern, nicht enthalten
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: 1, Leistung: 10 – 20 W, Typ: RGBL LED
  • Installation:
    • Daten enthalten?: Installation, Standort: indoor, outdoor, Befestigung: kombinierter Hänge-/Stehbügel, 2x 3/8" & 1/4" 20 UNC Gewinde, Ausrichtung: beliebig, vertikal hängend, horizontal seitwärts
  • Optisches System:
    • Daten enthalten?: Optisches System, Durchmesser Lichtaustrittsfläche: 50 mm / 1.96 in, max. Zoom: 68°, min. Zoom: 16°, Maximale Lichtintensität: 4,58 kcd, Licht-Output: bis zu 550 lm, Zoomverhältnis: 1:5
  • Light Source:
    • Data Category: Light Source, Count: 1, Power: 10 – 20 W, Type: RGBL LED
  • Lieferung:
    • Daten enthalten?: Lieferung, einzelnes Gerät: Karton
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Color Mixing: RGBL, Dimmer / Shutter: 0 – 100%, 16 bit
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: lüfterlose Konvektionskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 70 BTU/h, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: -10 °C / 14 °F
  • Connections:
    • Data Category: Connections, PE Connection: Combined Power/Date Cable Tail, 750 mm; with XLR 4-Pin connector mail
  • Construction:
    • Data Category: Construction, Housing color: Black, White (optional), Housing material: high-impact flame-retardand thermoplastic, aluminum, Protection Rating: IP65
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Power Input: 24 – 48 V DC, Power supply unit: external, not included
  • Installation:
    • Data Category: Installation, Location: Indoor, Outdoor, Mounting: combined hanging / floorstand yoke, 2x 3/8" and 1/4" 20 UNC thread, Orientation: any, vertical hanging, horizontal sideway
  • Shipping:
    • Data Category: Shipping, single fixture: carton
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Weight (netto): 580 g / 1.28 lbs
  • Optical System:
    • Data Category: Optical System, Light aperature diameter: 50 mm / 1.96 in, max. Zoom: 68°, min. Zoom: 16°, Peak Luminous Intensity: 4.58 kcd, Total Output: up to 550 lm, Zoom ratio: 1:5
  • Control & Programming:
    • Data Category: Control & Programming, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, High-Res Channels: Dimmer, Setting and addressing: DMX, RDM, GLP iQ.Mesh, Software update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: convection, Overheating protection: automatic, Total heat dissipation: 70 BTU/h, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: -10 °C / 14 °F
  • Hits: 107

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

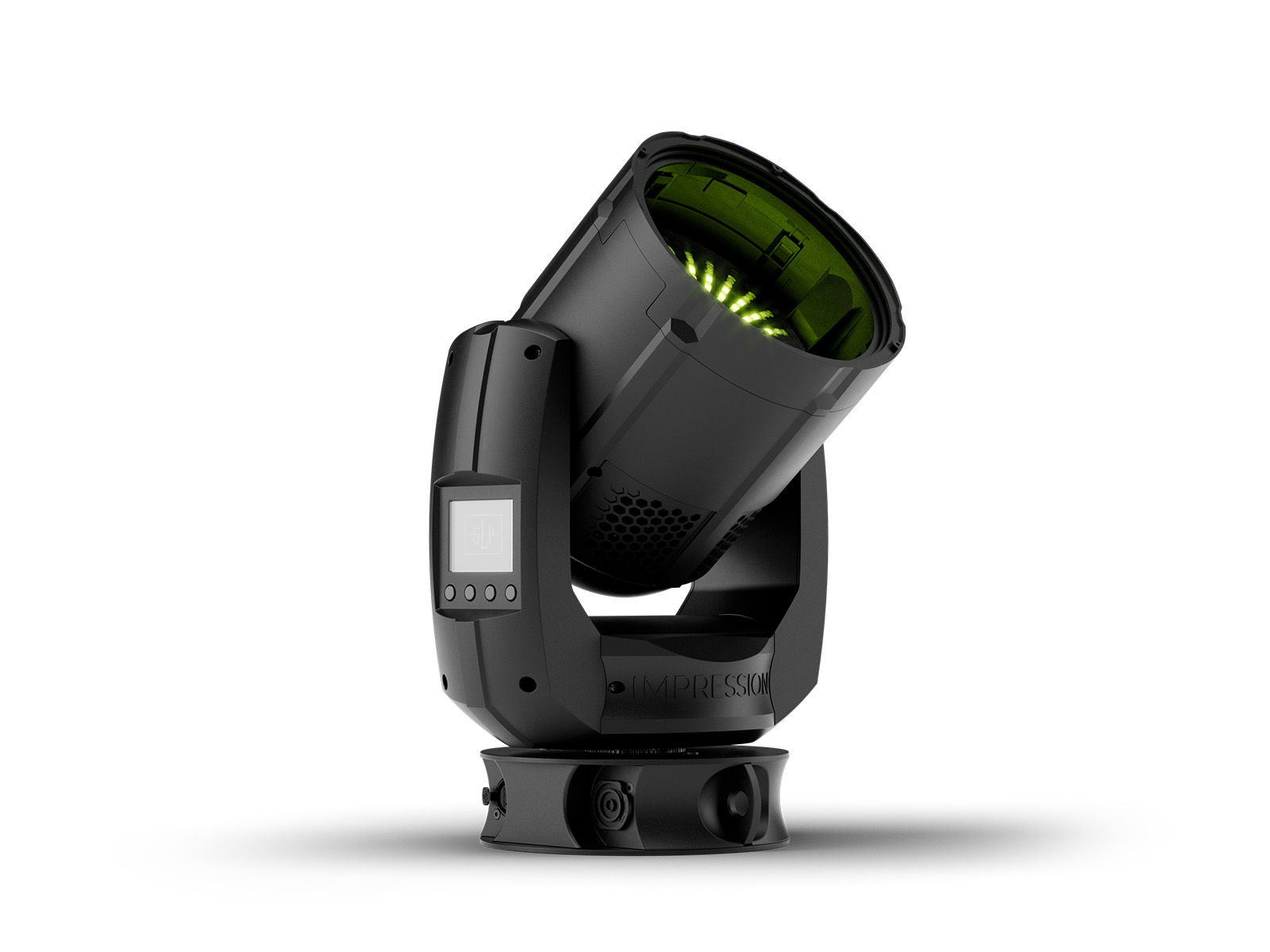

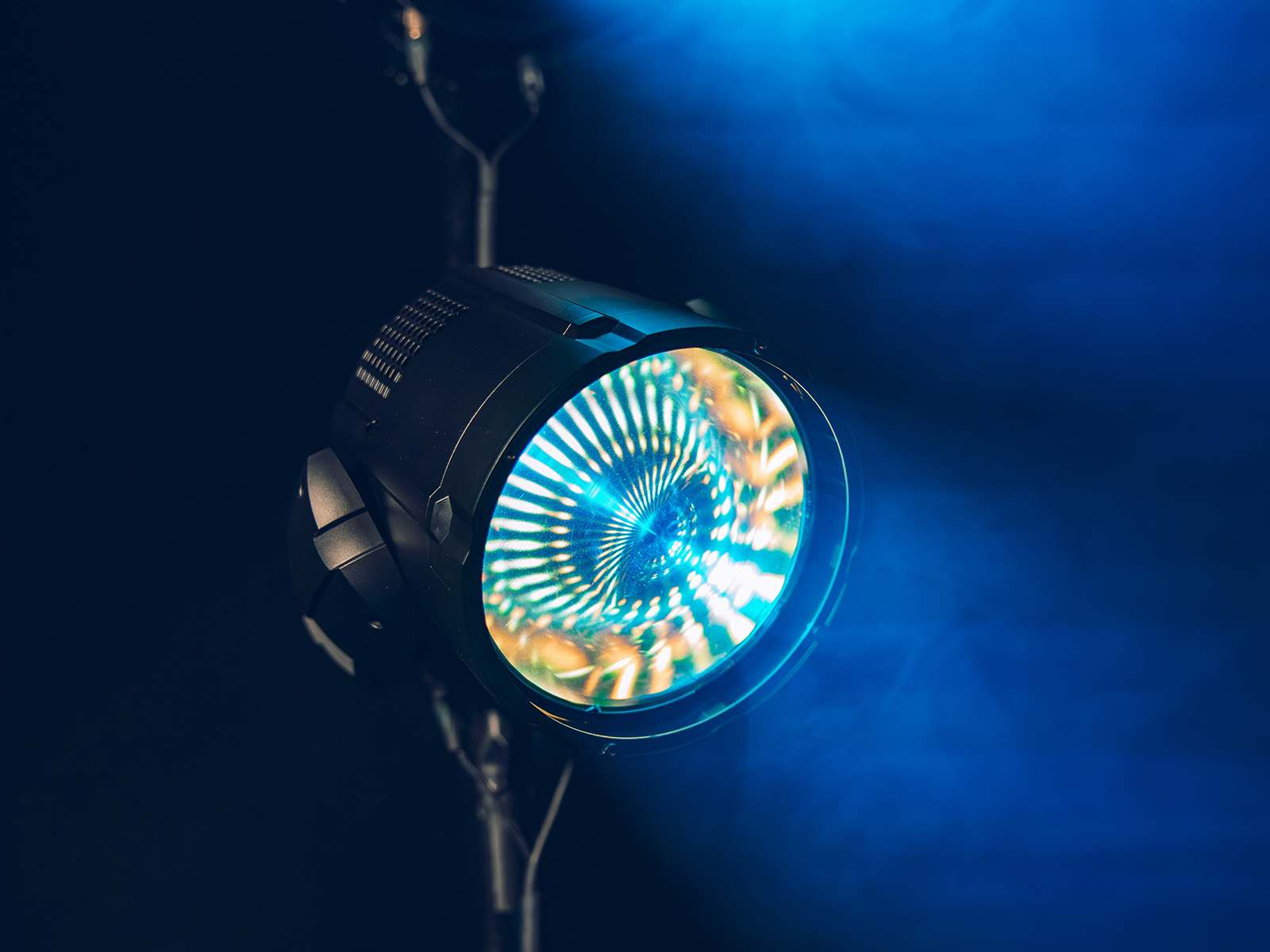

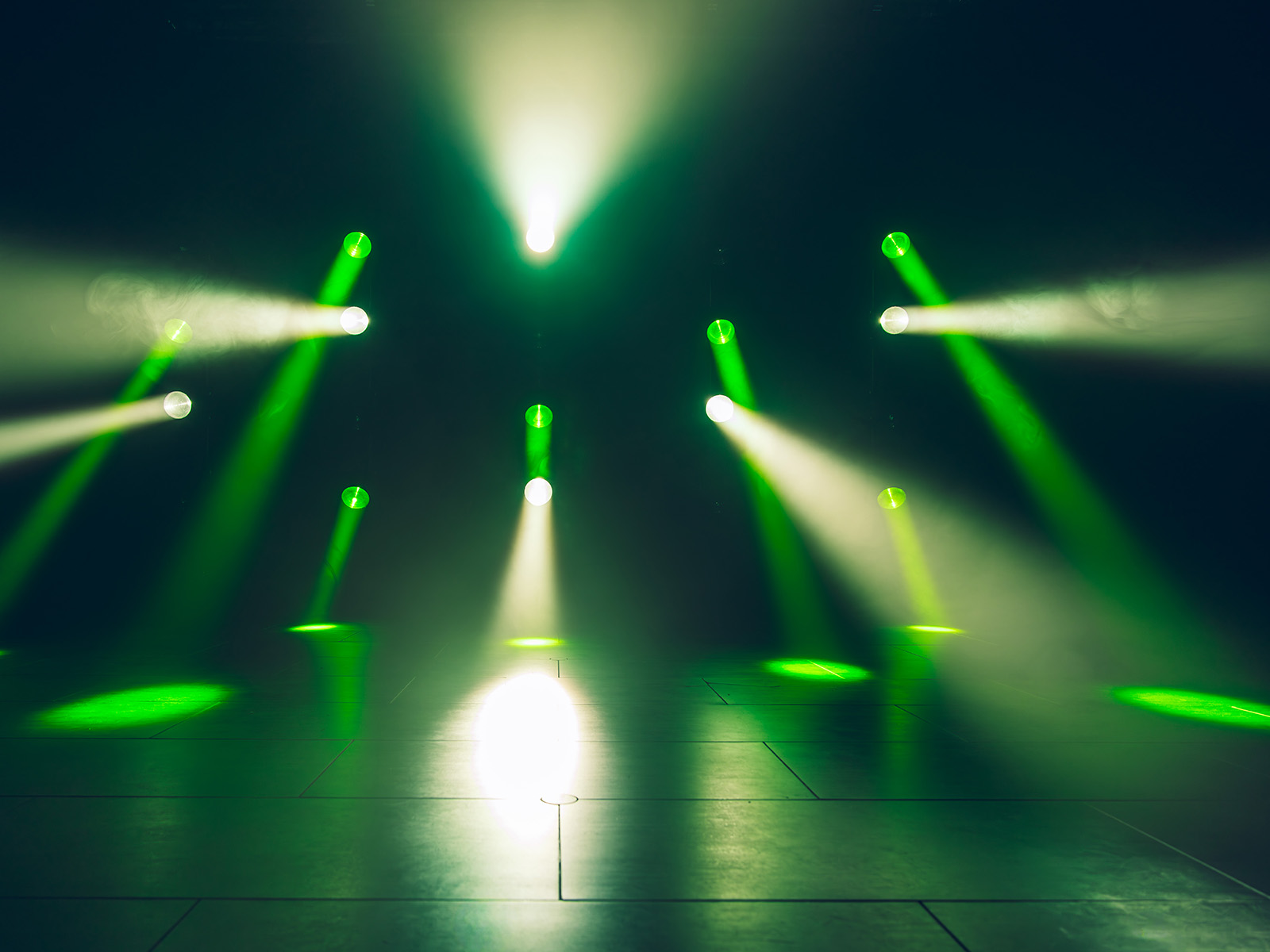

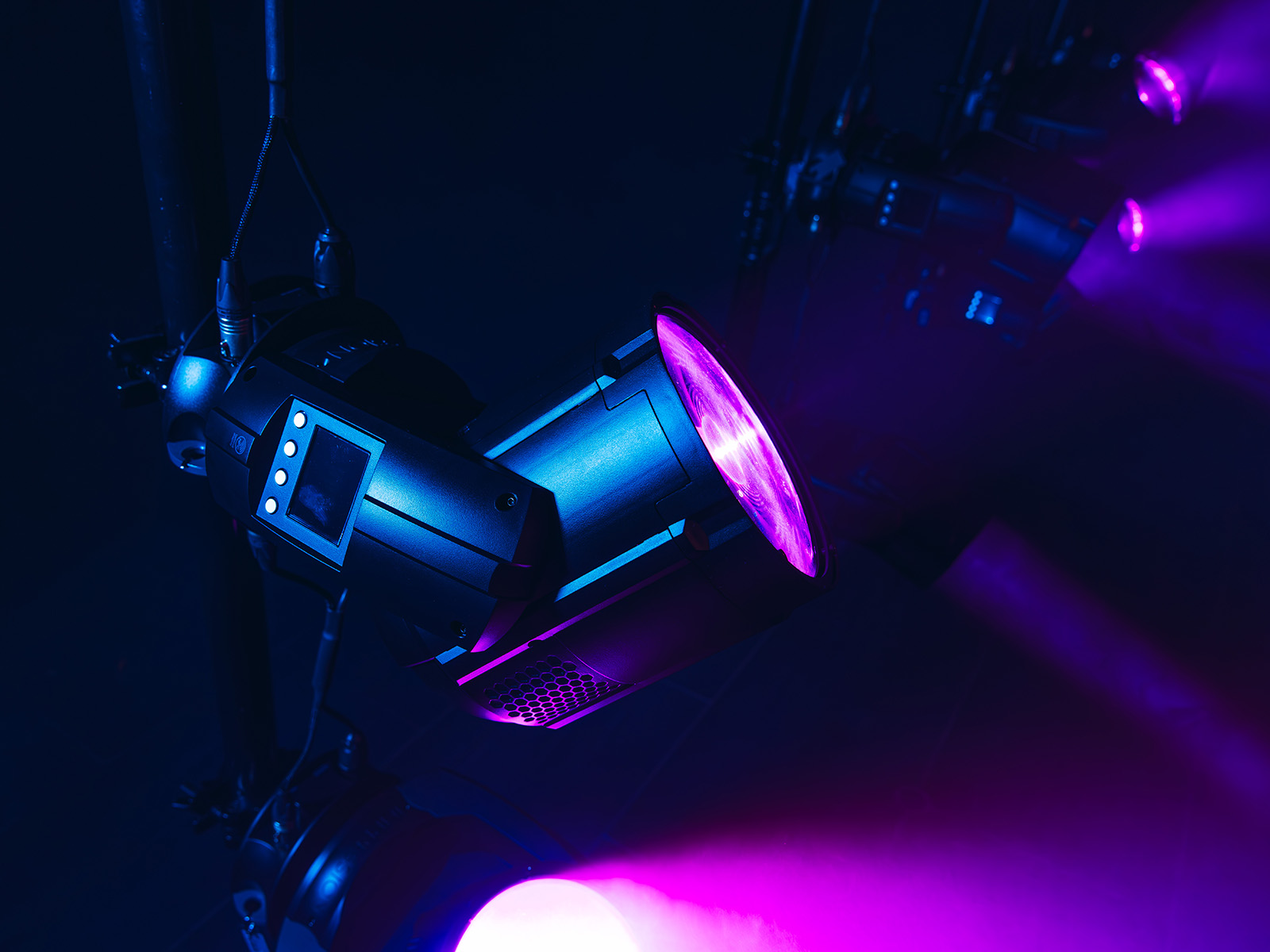

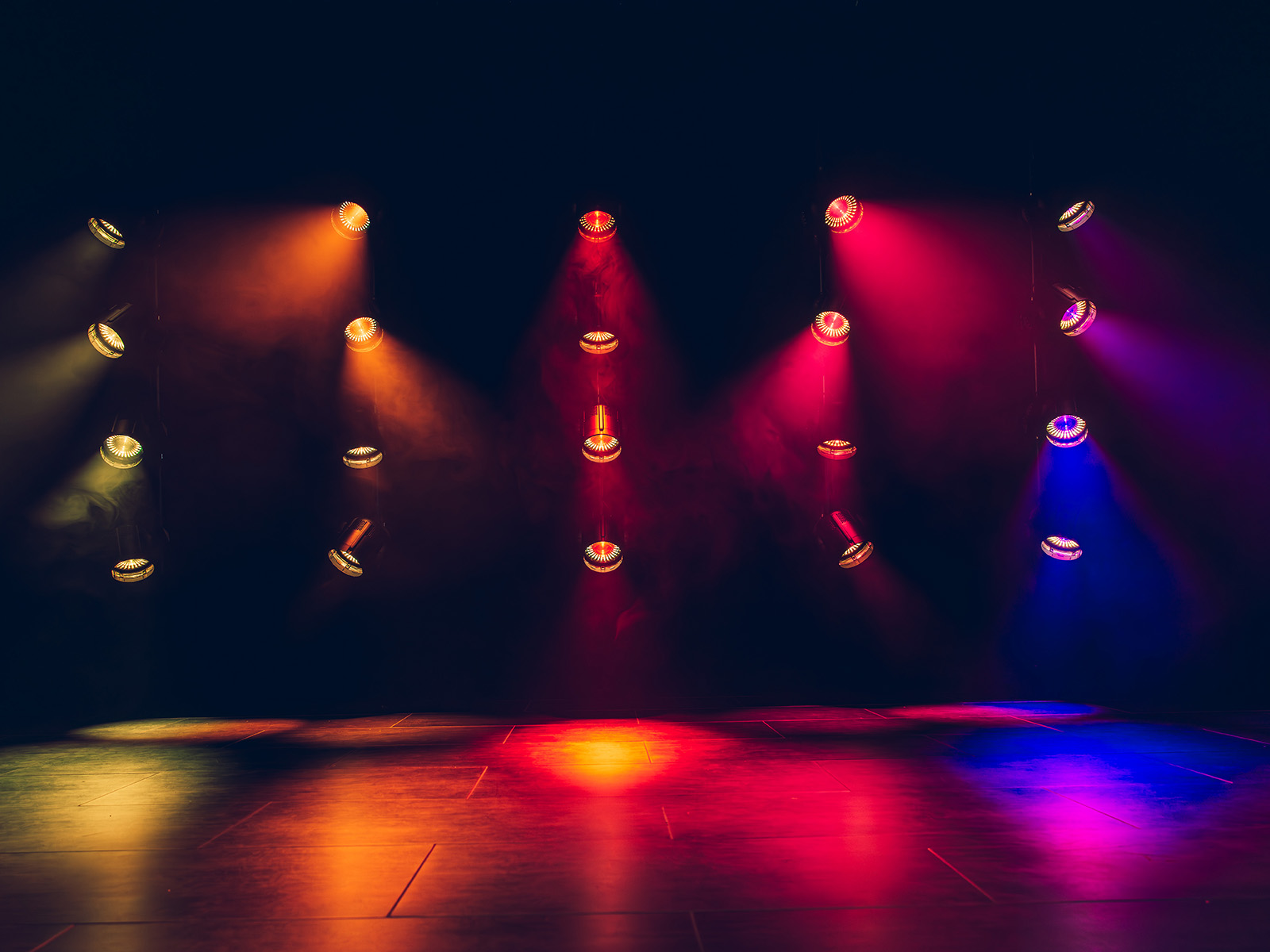

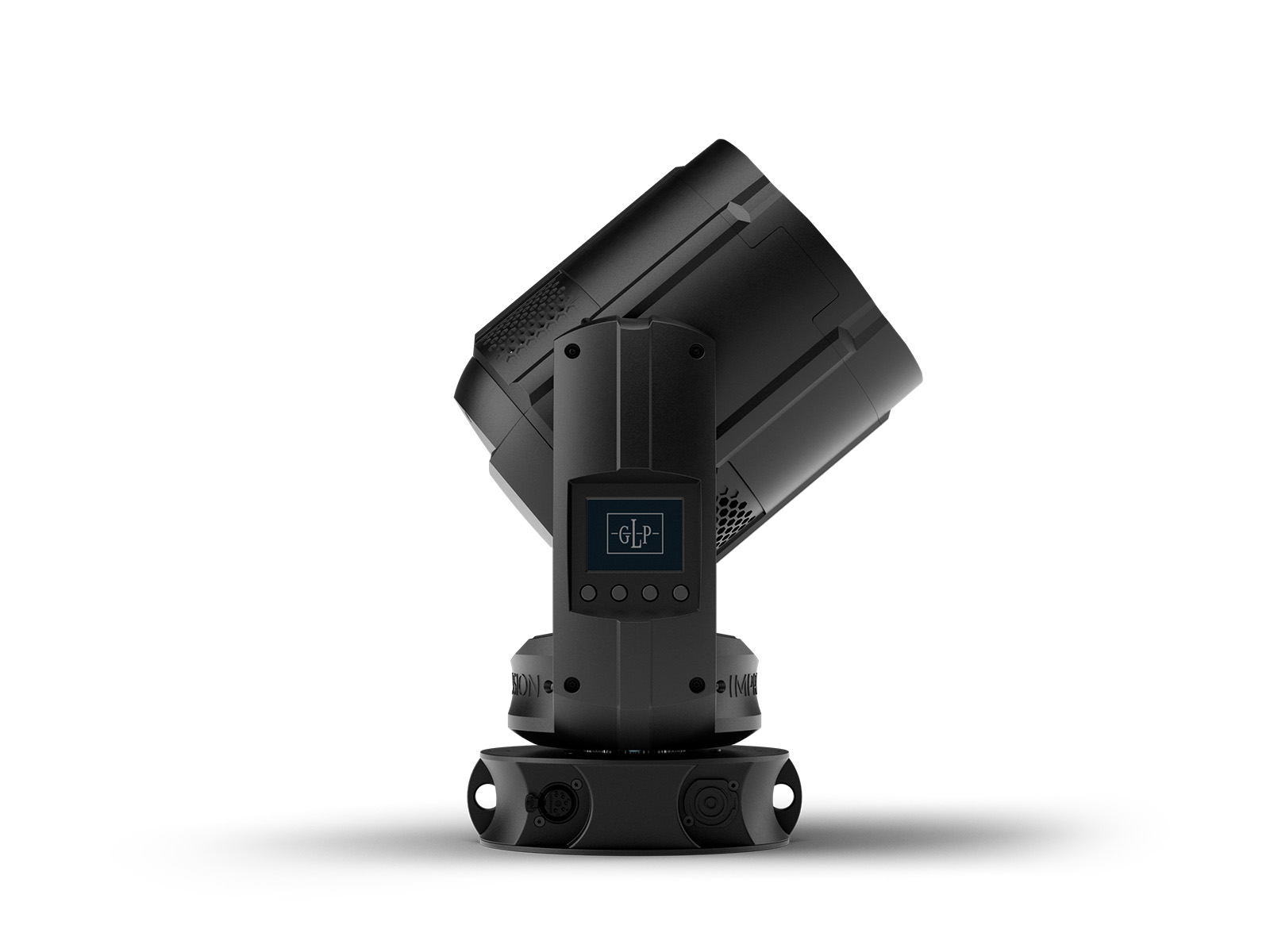

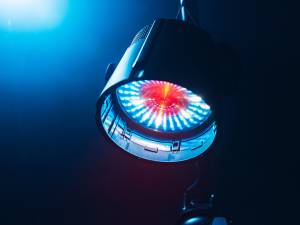

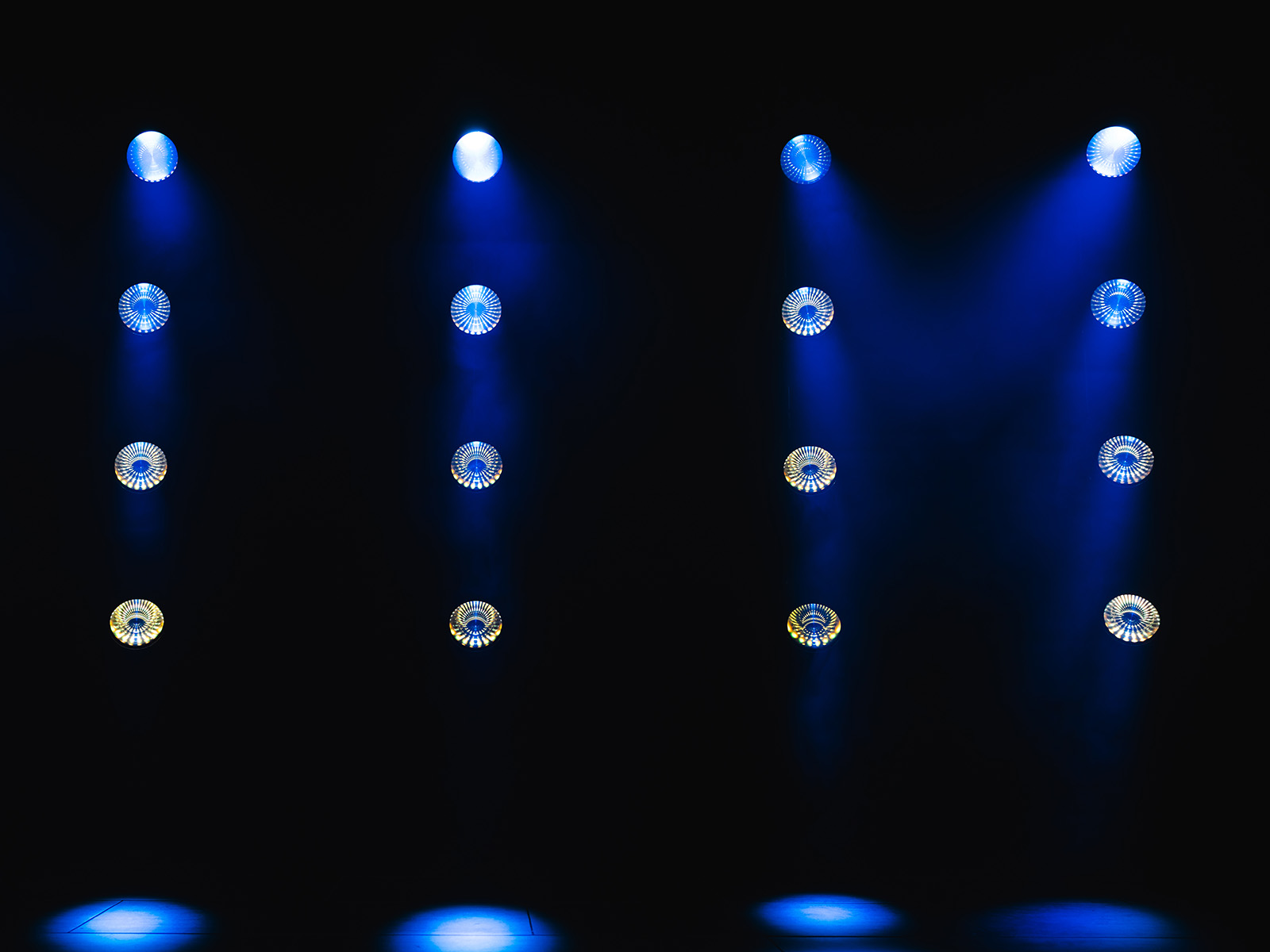

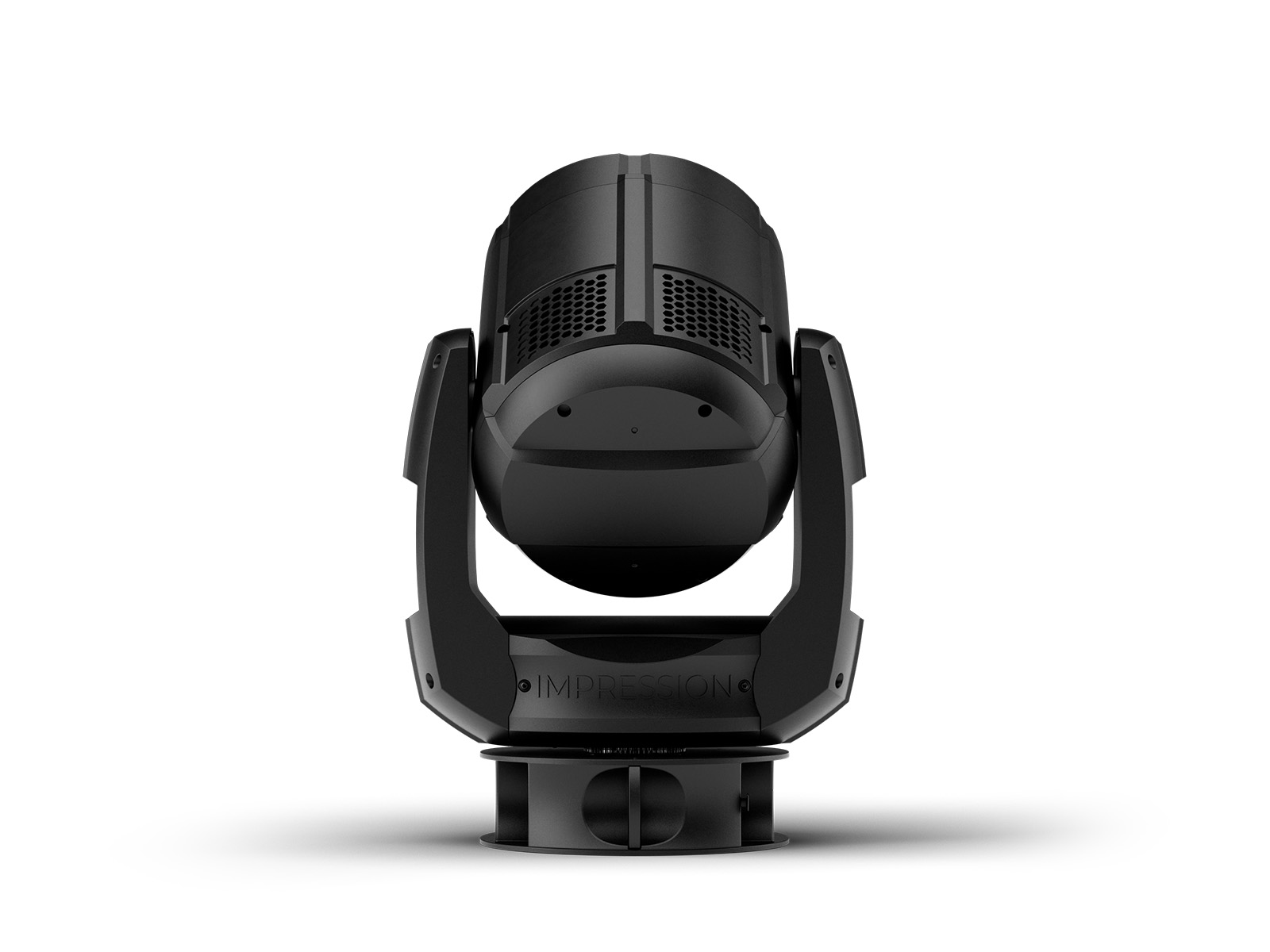

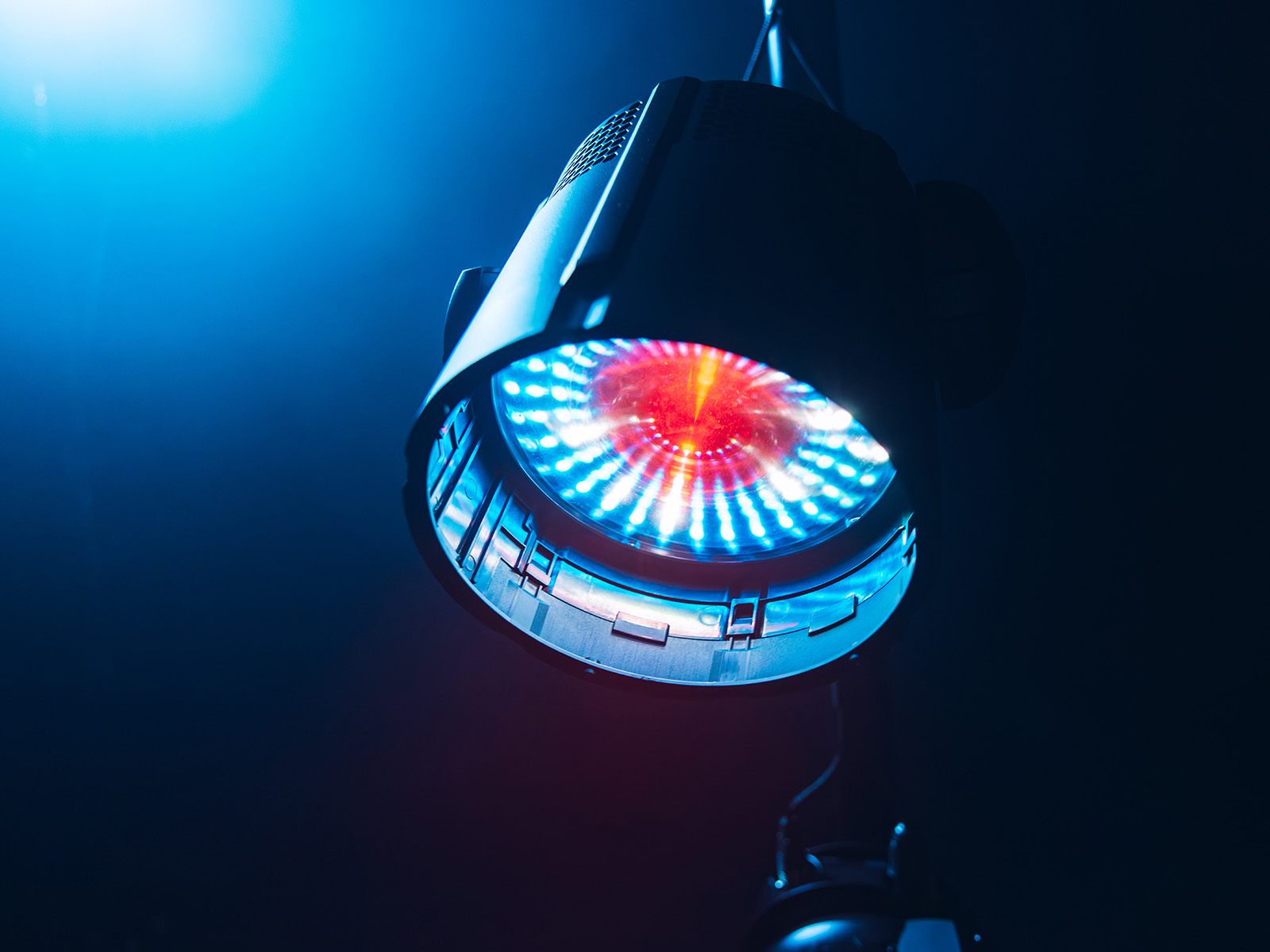

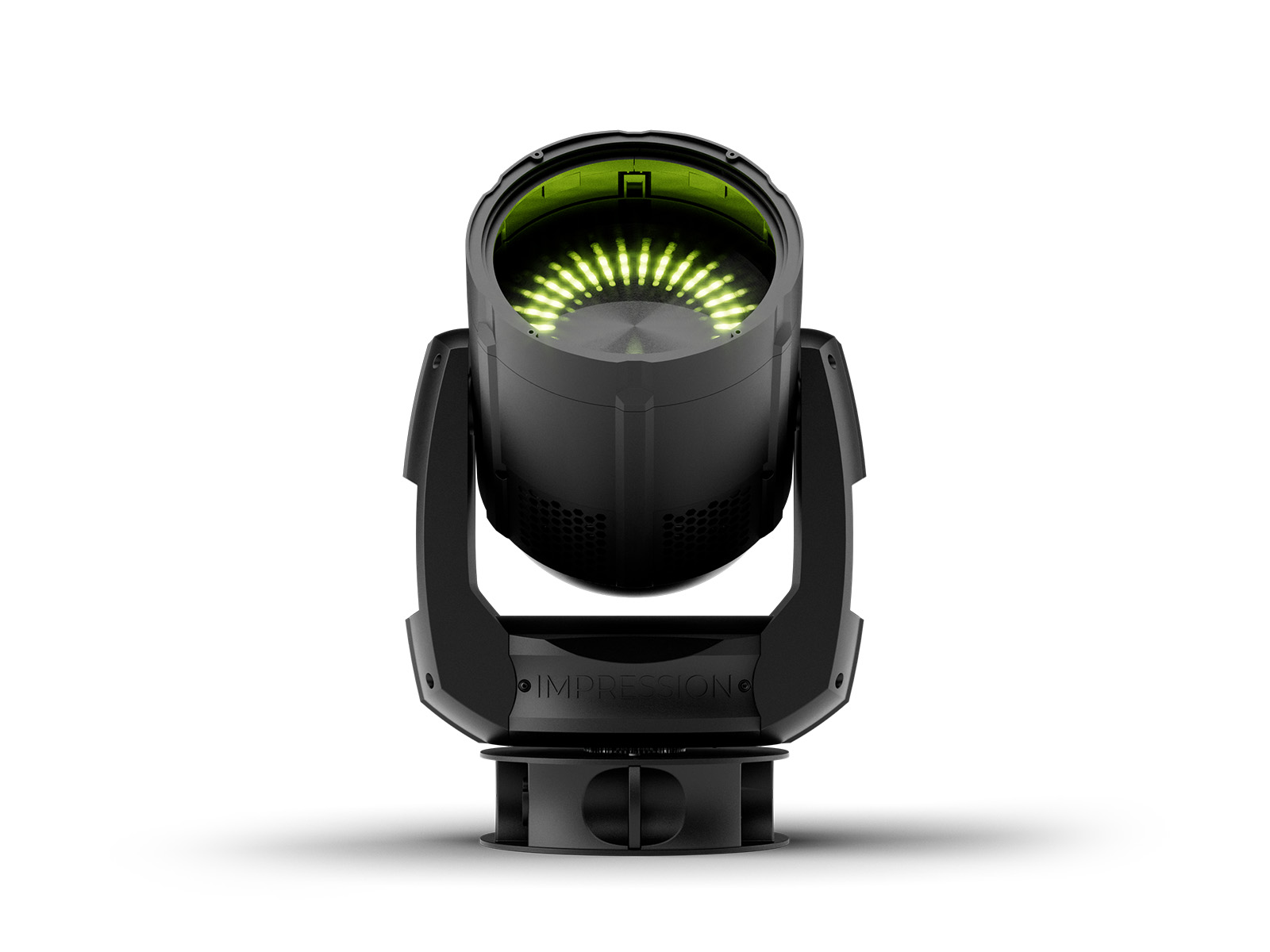

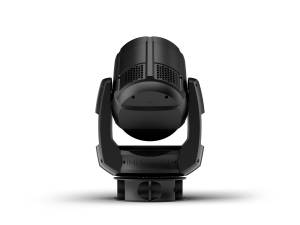

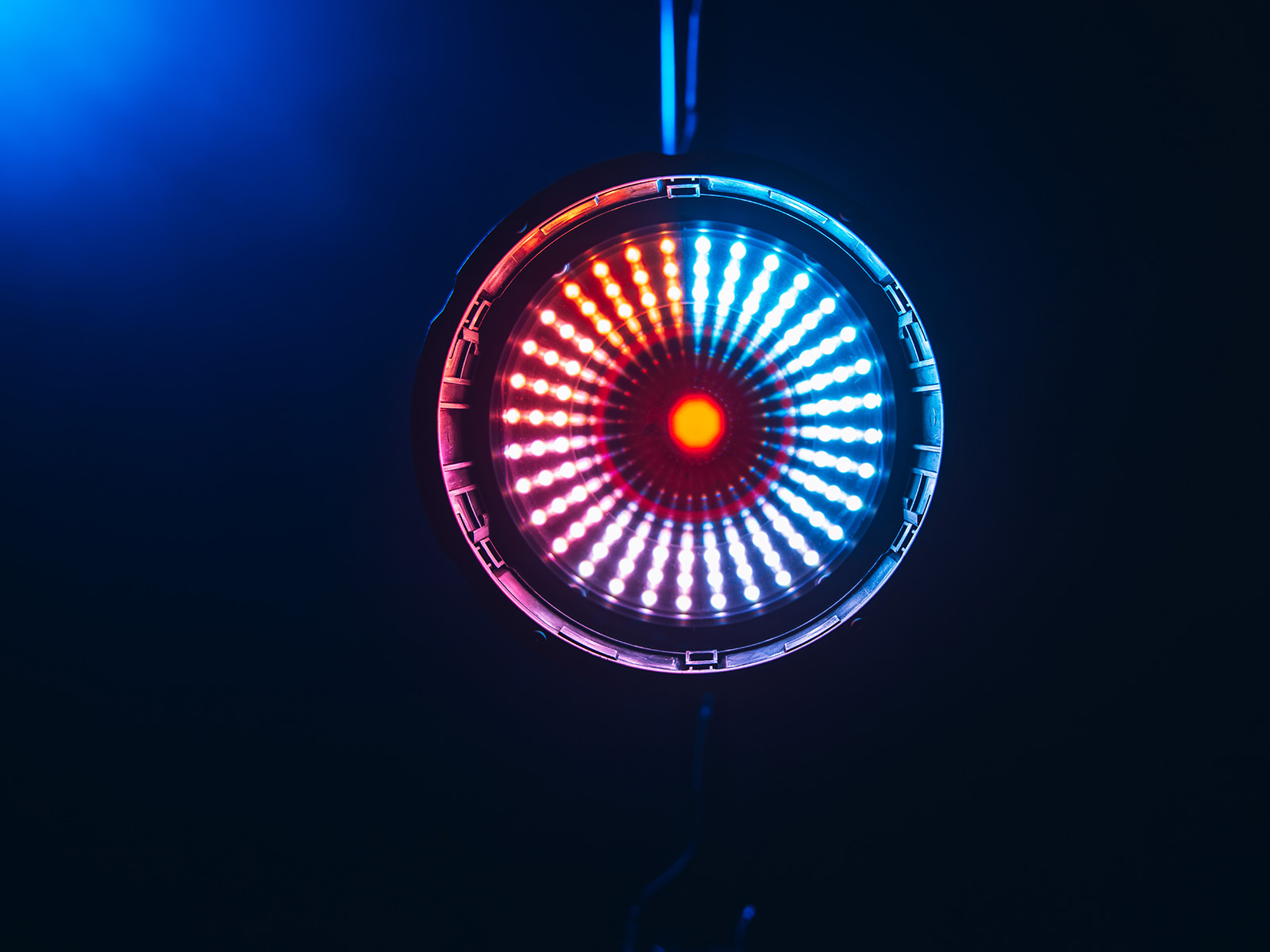

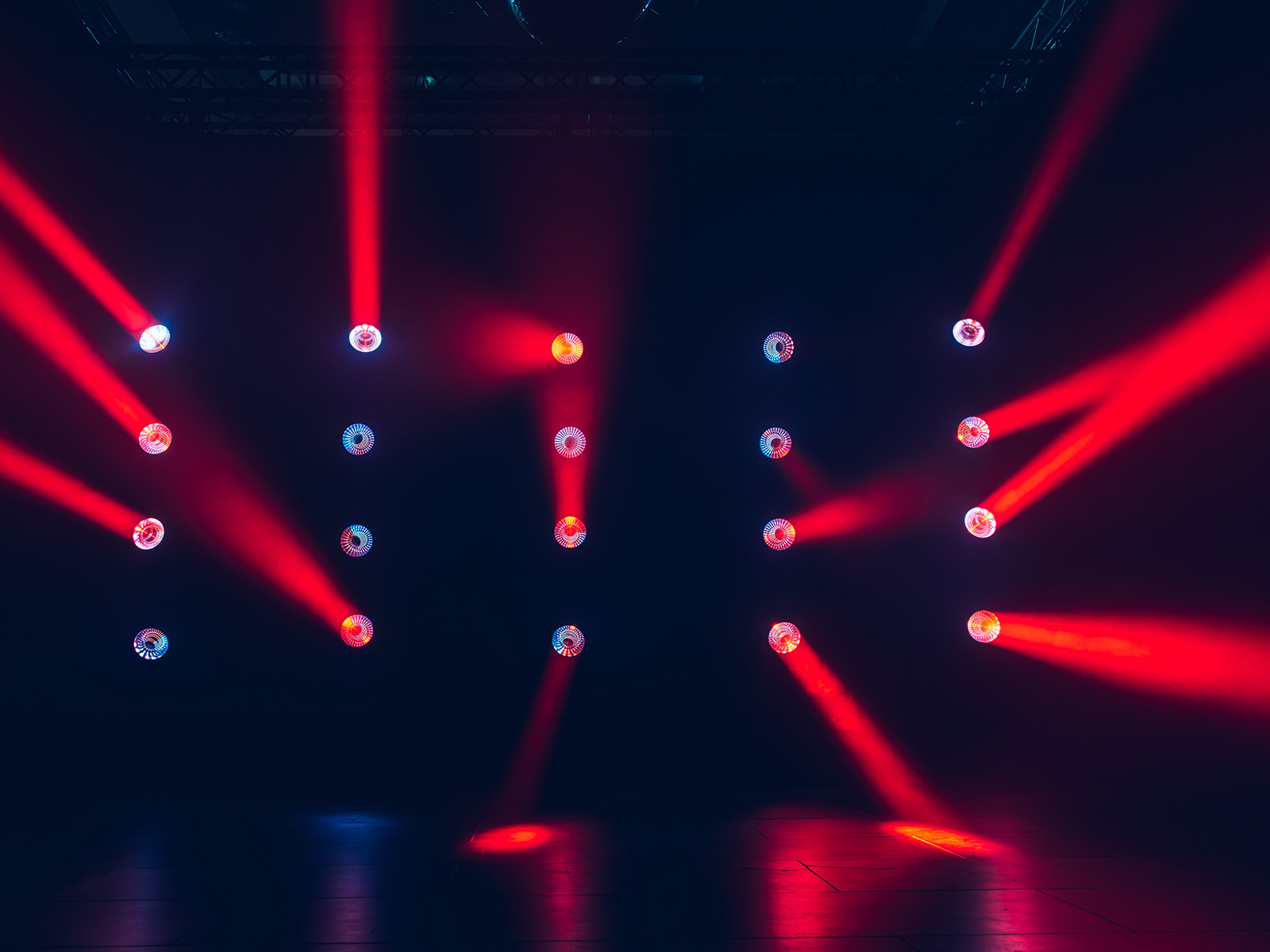

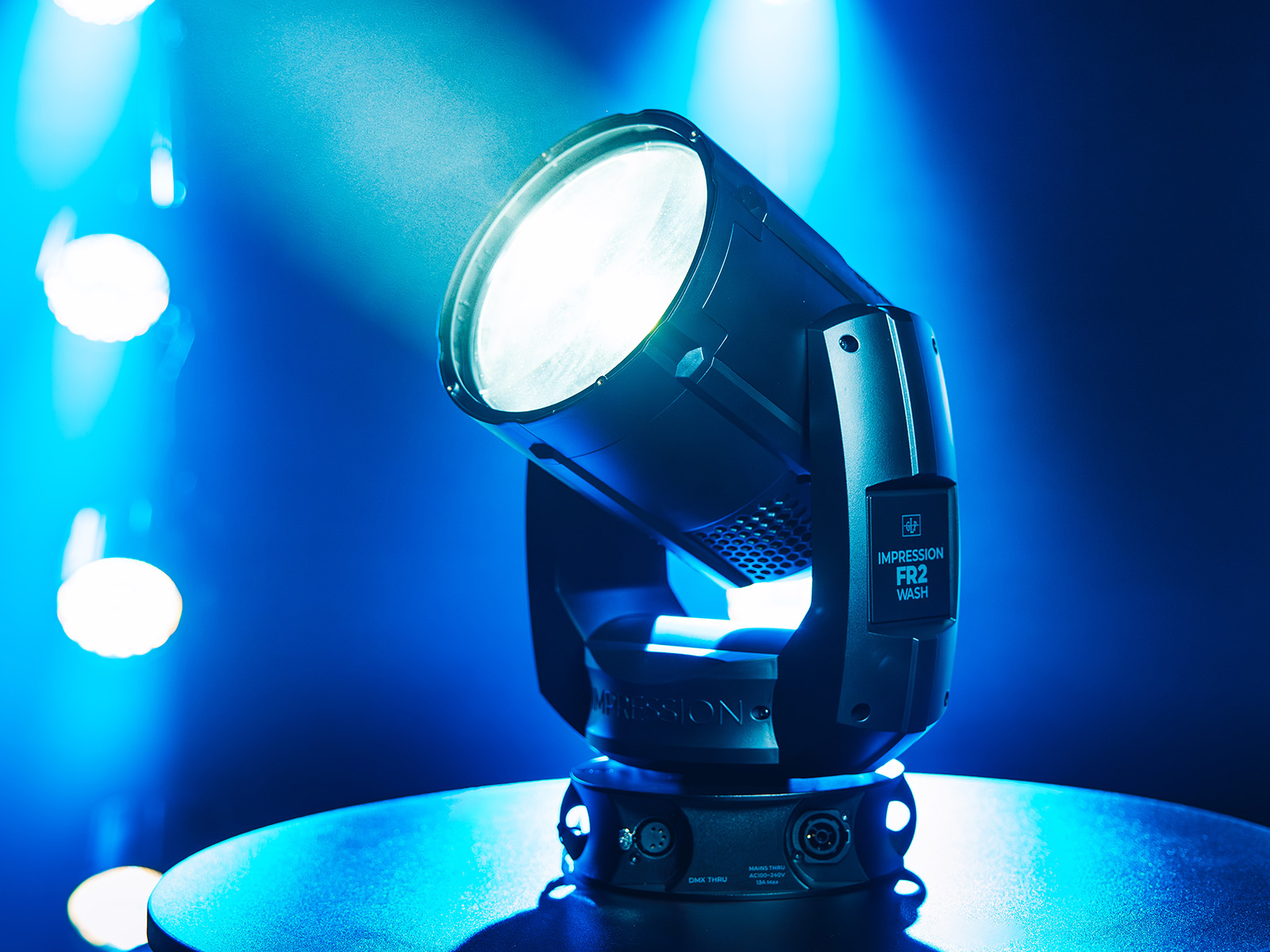

impression FR2 Wash – Product Data

  • Info Material Files: files/products/impression-fr2-product-data/impression-FR2_preliminary_Rev20260202.pdf
  • Product info:
    • Long product text (editor):

      Preliminary Data
  • Zulassungen & Klassifizierungen:
    • Daten enthalten?: Zulassungen & Klassifizierungen, Risk Group EN 62471: Risk Group 2
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out
  • Aufbau:
    • Daten enthalten?: Aufbau, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Schutzklasse: IP20
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Control Modes: 6, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, DMX Channels: 18 | 28 | 40 | 52 | 171 | 427, Dimmerkurven: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Dimmer | Tilt | Pan, Weitere Steuerungsoptionen: 3 Layer Pattern-FX-Engine, Performance Modes: Fast, Normal (Balanced), Smooth, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone, Geräte-Update: GLP iQ.Mesh, GLP iQ.Tool, GLP iQ.Control App
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Tiefe (Kopf gerade hoch): 185 mm / 7.28 in, Höhe: 311 mm / 12.24 in, Höhe (Kopf gerade hoch): 354 mm / 13.93 in, Gewicht (netto): 5.2 kg / 11.46 lbs, Breite (Arm zu Arm): 250 mm / 9.84 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Dimmer / Shutter: 0 – 100%, 16 bit
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Sicherung: T4A 250V 5x20mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 200 W, max. Anzahl Geräte auf einer Stromleitung: 8 at 100 – 120V, 60 Hz, 16A circuit breaker | 18 at 200 – 240V, 50 Hz, 16A circuit breaker
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: Main: 1 | FX Layer: 32 LEDs in 3 Ringen, Lebensdauer: 50.000 h, Leistung: Main: 150 W, Typ: Main: RGBL | FX Layer: RGBW (32 Pixel)
  • Installation:
    • Daten enthalten?: Installation, Standort: trocken, indoor, Befestigung: 1 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,1 m, Mindestabstand zu beleuchteten Oberflächen: 1,0 m
  • Bewegung:
    • Daten enthalten?: Bewegung, Pan Angle: kontinuierlich 540°, 16 bit, Tilt Angle: 208° 16 bit
  • Optisches System:
    • Daten enthalten?: Optisches System, Frontlinse: einzelne Micro-Fresnel Linse mit 165 mm Durchmesser, max. Zoom: 34°, min. Zoom: 4,6°
  • Light Source:
    • Data Category: Light Source, Count: Main: 1 | FX Layer: 32 LEDs in 3 rings, Lifetime: 50,000 h, Power: Main: 150 W, Type: Main: RGBL | FX Layer: RGBW (32 pixels)
  • Lieferung:
    • Daten enthalten?: Lieferung, einzelnes Gerät: Karton, DRX Sleeve/s (inklusive)
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Dimmer / Shutter: 0 – 100%, 16 bit
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: 5 °C | 40 °F
  • Connections:
    • Data Category: Connections, Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out
  • Construction:
    • Data Category: Construction, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, Protection Rating: IP20
  • Movement:
    • Data Category: Movement, Pan Angle: continuous 540°, 16 bit, Tilt Angle: 208°, 16 bit
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Fuse: T4A 250V 5x20mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 200 W, max. number of products per current line: 8 at 100 – 120V, 60Hz, 16 A circuit breaker | 18 at 200 – 240V, 50Hz, 16A circuit breaker
  • Installation:
    • Data Category: Installation, Location: Dry, Indoor, Mounting: 1 pair of 1/4-turn locks, 2 eyelets for safety cable, Orientation: any, min. distance to combustible materials: 0.1 m, min. distance to illuminated surfaces: 1.0 m
  • Shipping:
    • Data Category: Shipping, single fixture: carton, DRX Sleeve/s (included)
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Depth (head straight up): 185 mm / 7.28 in, Height: 311 mm / 12.24 in, Height (head straight up): 354 mm / 13.93 in, Weight (netto): 5.2 kg / 11.46 lbs, Width (across yoke): 250 mm / 9.84 in
  • Optical System:
    • Data Category: Optical System, Front lens: Single Micro-Fresnel, diameter: 165 mm, max. Zoom: 34°, min. Zoom: 4.6°
  • Control & Programming:
    • Data Category: Control & Programming, Control Modes: 6, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, DMX Channels: 18 | 28 | 40 | 52 | 171 | 427, Dimming curves: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Dimmer | Tilt | Pan, Other control options: 3 Layer Pattern-FX-Engine, Performance Modes: Fast, Normal (Balanced), Smooth, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone, Software update: GLP iQ.Mesh, GLP iQ.Tool, GLP iQ.Control App
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: combined convection and forced air, Overheating protection: automatic, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: 5 °C / 40 °F
  • Approvals & Classifications:
    • Data Category: Approvals & Classifications, Risk Group EN 62471: Risk Group 2
  • Hits: 101

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

Nexus Square – Product Data

  • CAD Files: files/products/nexus-square/GLP_Nexus_Line_Square_Circle_Vectorworks_Rev20250425-1.zip
  • Info Material Files: files/products/nexus-square-product-data/NexusLights-Shapes_datasheet-Rev20251127.pdf
  • Header Image: Nexus Square
  • Product Picture Gallery:

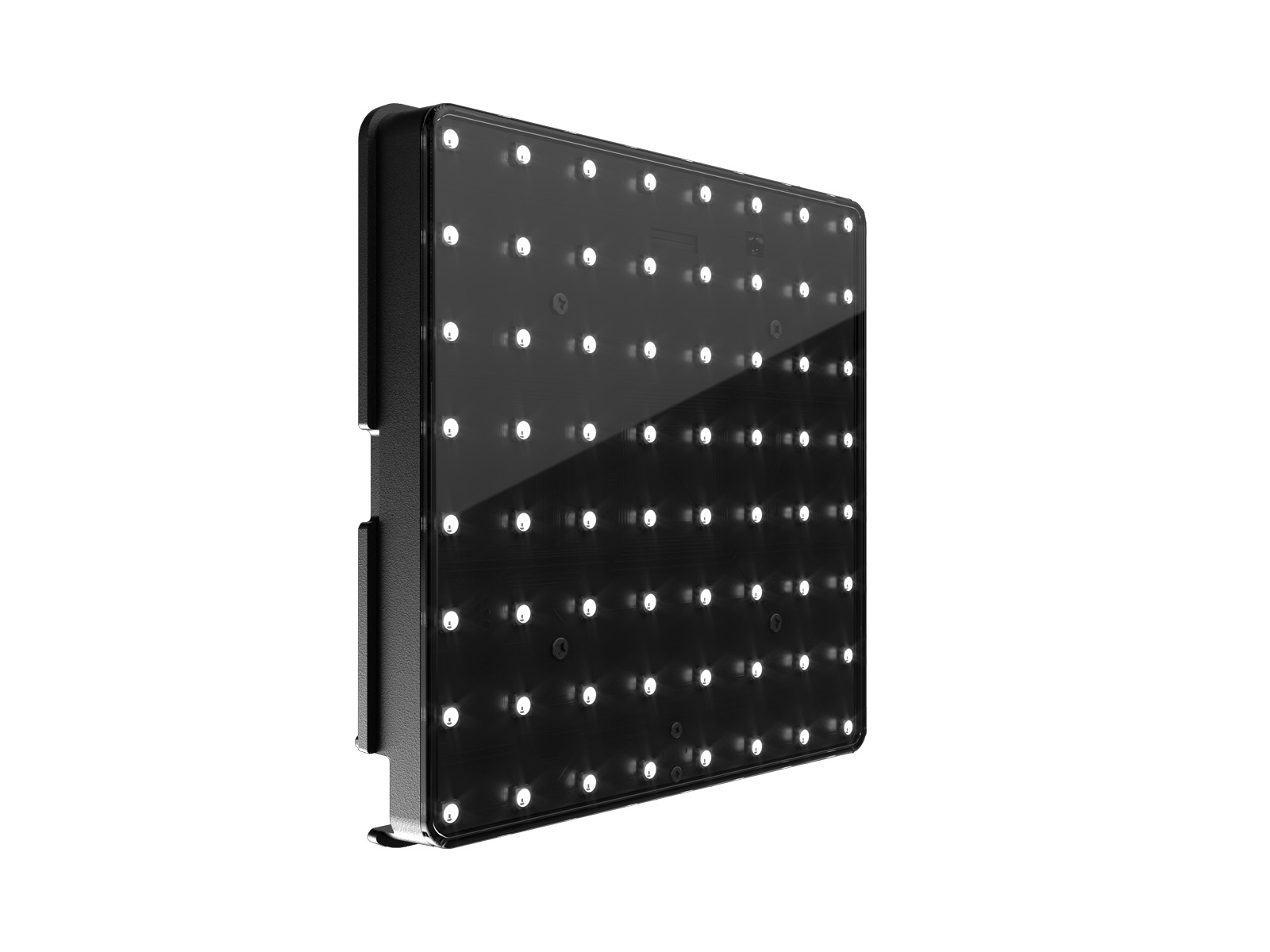

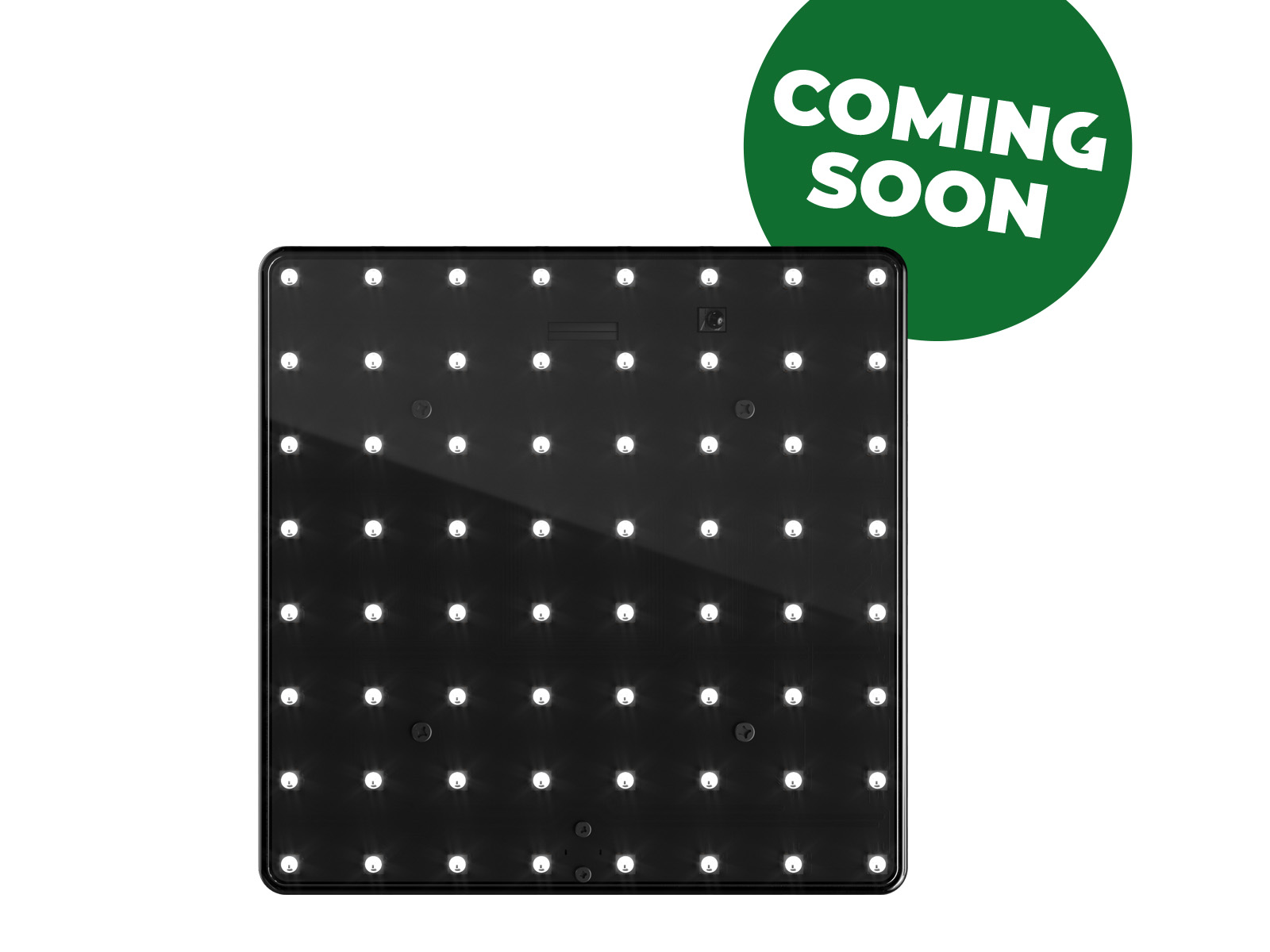

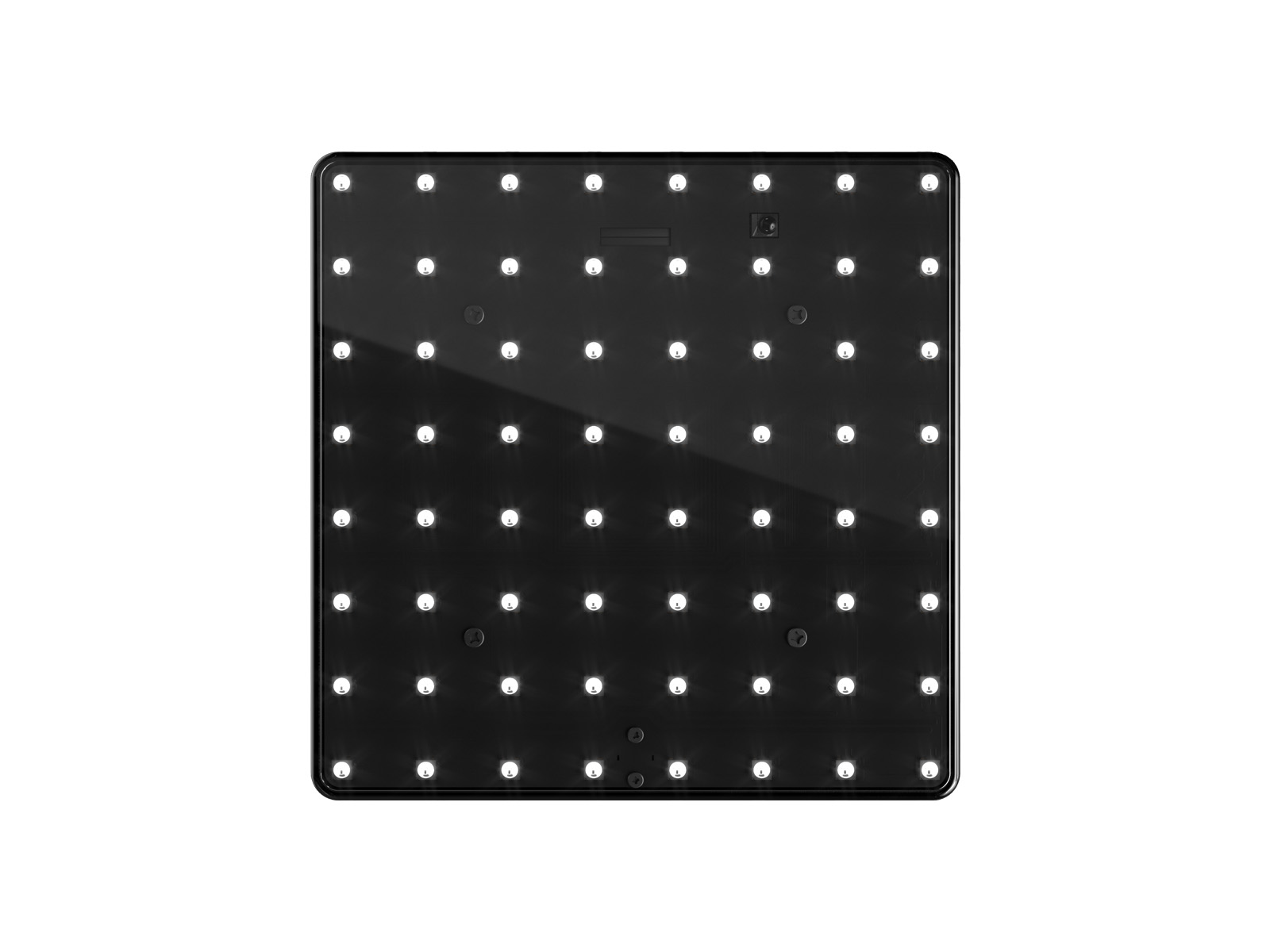

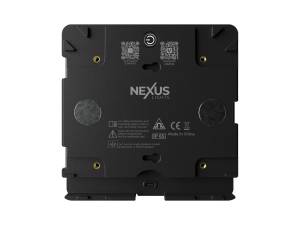

    Nexus Square
    Nexus Square
    Nexus Square
  • Product info:
    • Long product text (editor):

      The Nexus Square– a wireless, battery-powered RGBW LED panel with a size of 166.7 x 166.7mm, designed for DJs, professional users, bars, weddings, and events. Equipped with 64 individually controllable RGBW pixels, the Nexus Square enables precise pixel mapping and dynamic effect programming. Control is provided via the GLP iQ.Control app or Vision Control App for flexible and intuitive operation.

      The robust IP65-rated housing offers magnetic mounting options as well as integrated suspension points for quick and secure installation. A built-in cable channel allows neat routing of up to five USB-C power cables for continuous operation. Future expansions such as wireless DMX, Art-Net, and sACN modules ensure seamless integration into professional lighting networks. Nexus Lights combines innovative technology and modular designs – ideal for demanding lighting applications and creative installations.

      , Short product description: RGBW Creative LED, wireless, battery-powered, app-control
  • Batterie Spezifikationen:
    • Daten enthalten?: Batteriespezifikationen, Kapazität: 5.000 mAh, inkl. Ladekabel: USB C, 90° angewinkelt, Leistungsaufnahme: max. 10 W, Leistungseingang: 5 – 12 V, max. 2 A
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: USB-C, Signalverbindung: GLP iQ.Mesh
  • Aufbau:
    • Daten enthalten?: Aufbau, Eigenschaften: Installations-System | austauschbare Filter, Gehäusefarbe: schwarz, Gehäusematerial: Plastik, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Protokolle: GLP iQ.Mesh, Dimmerkurven: square, Weitere Steuerungsoptionen: Knopf an Hinterseite | App-Steuerung, Geräte-Update: GLP iQ.Control App, Vision Control App
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Tiefe: 166,7 mm / 65.63 in, Höhe: 41,2 mm / 1.62 in, Höhe (Kopf gerade hoch): 25,2 mm / 0.99 in, Höhe (mit Bracket): 0,4 kg / 0.88 lbs, Gewicht (netto): 0,52 kg / 1.15 lbs, Breite: 166,7 mm / 65.63 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Dimmer / Shutter: 0 – 100%, 8 bit
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Half-cycle RMS (@ 230 V): USB-C 90° angled, Netzanschluss Input: 5 – 12 V, max. 2 A, max. Leistung (@ 230 V): max. 10 W, max. Anzahl Geräte auf einer Stromleitung: 5.000 kAh
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: 64 Pixel, LED Refresh Rate: 2.000 Hz, Lebensdauer: 50.000 h, Typ: RGBW LED
  • Installation:
    • Daten enthalten?: Installation, Standort: indoor, outdoor, Befestigung: Montagelöcher, Magnete, Ausrichtung: beliebig
  • Optisches System:
    • Daten enthalten?: Optisches System, Lichtaustrittsfläche: 146 x 146 mm / 5.74 x 5.74 in | pro Pixel: 3.8 mm / 0.14 in
  • Light Source:
    • Data Category: Light Source, Count: 64 pixels, LED Refresh Rate: 2,000 Hz, Lifetime: 50,000 h, Type: RGBW LED
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Dimmer / Shutter: 0 – 100%, 8 bit
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: keine, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
  • Connections:
    • Data Category: Connections, Power connection: USB-C, Signal connection: GLP iQ.Mesh
  • Construction:
    • Data Category: Construction, Construction features: mounting system | changeable filter, Housing color: Black, Housing material: plastic, Protection Rating: IP65
  • Battery Specifications:
    • Data Category: Battery Specifications, Capacity: 5,000 mAh, incl. power cable: USB C, 90° angled, Power Draw: max. 10 W, Power Input: 5 – 12 V, max. 2 A
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Half-cycle RMS (@ 230 V): USB-C 90° angled, Power Input: 5 – 12 V, max. 2 A, max. Power (@ 230 V): 10 W, max. number of products per current line: 5,000 mAh
  • Installation:
    • Data Category: Installation, Location: Indoor, Indoor, Orientation: any
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Depth: 166.7 mm / 65.63 in, Height: 41.2 mm / 1.62 in, Height (head straight up): 25.2 mm / 0.99 in, Height (with bracket): 0.4 kg / 0.88 lbs, Weight (netto): 0.52 kg / 1.15 lbs, Width: 166.7 mm / 65.63 in
  • Optical System:
    • Data Category: Optical System, Light Aperature: 146 x 146 mm / 5.74 x 5.74 in | single pixel: 3.8 mm / 0.14 in
  • Control & Programming:
    • Data Category: Control & Programming, Control Protocols: GLP iQ.Mesh, Dimming curves: square, Other control options: single button on rear | control apps, Software update: GLP iQ.Control App, Vision Control App
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: no cooling, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F
  • Hits: 1305

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

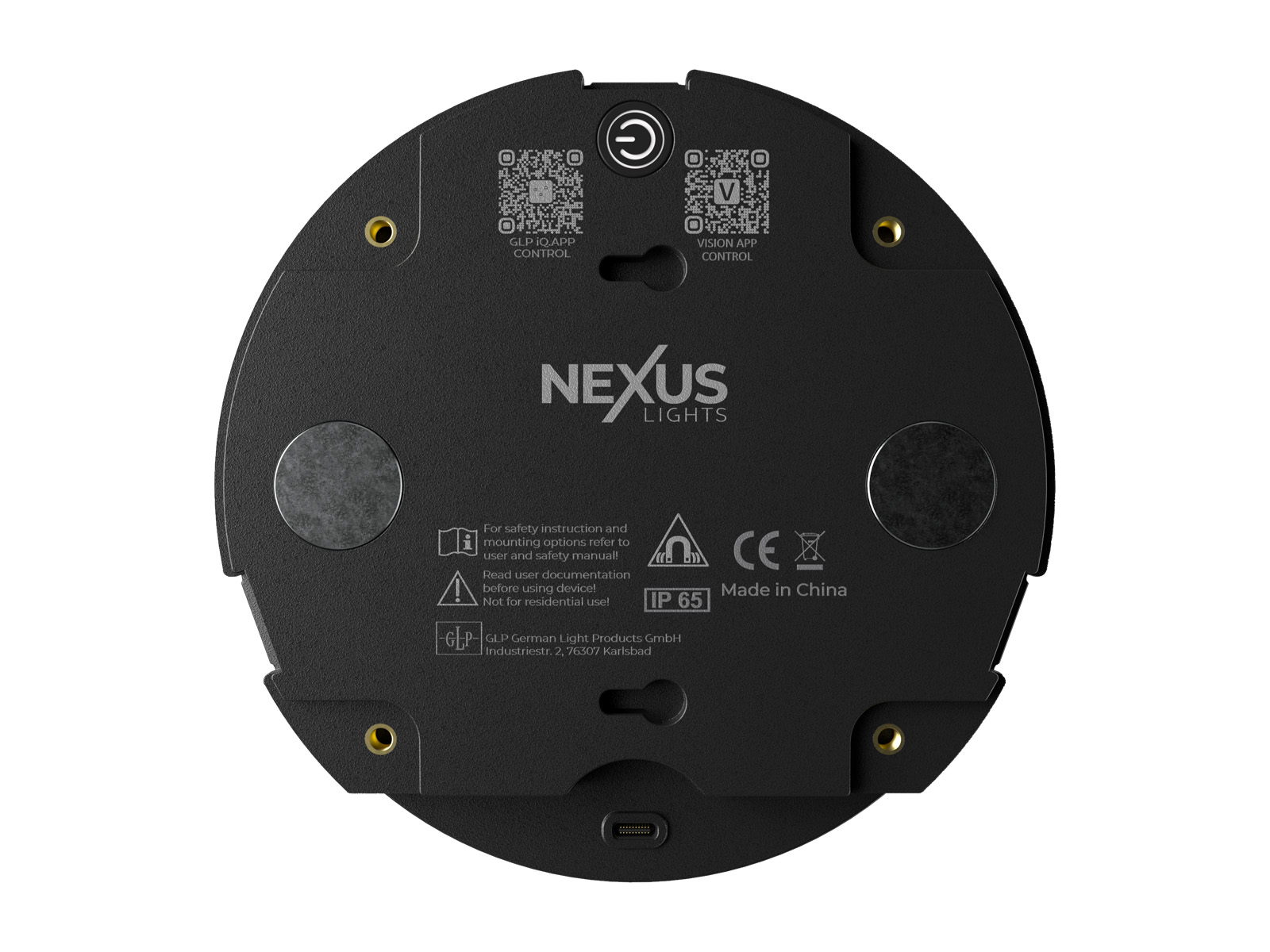

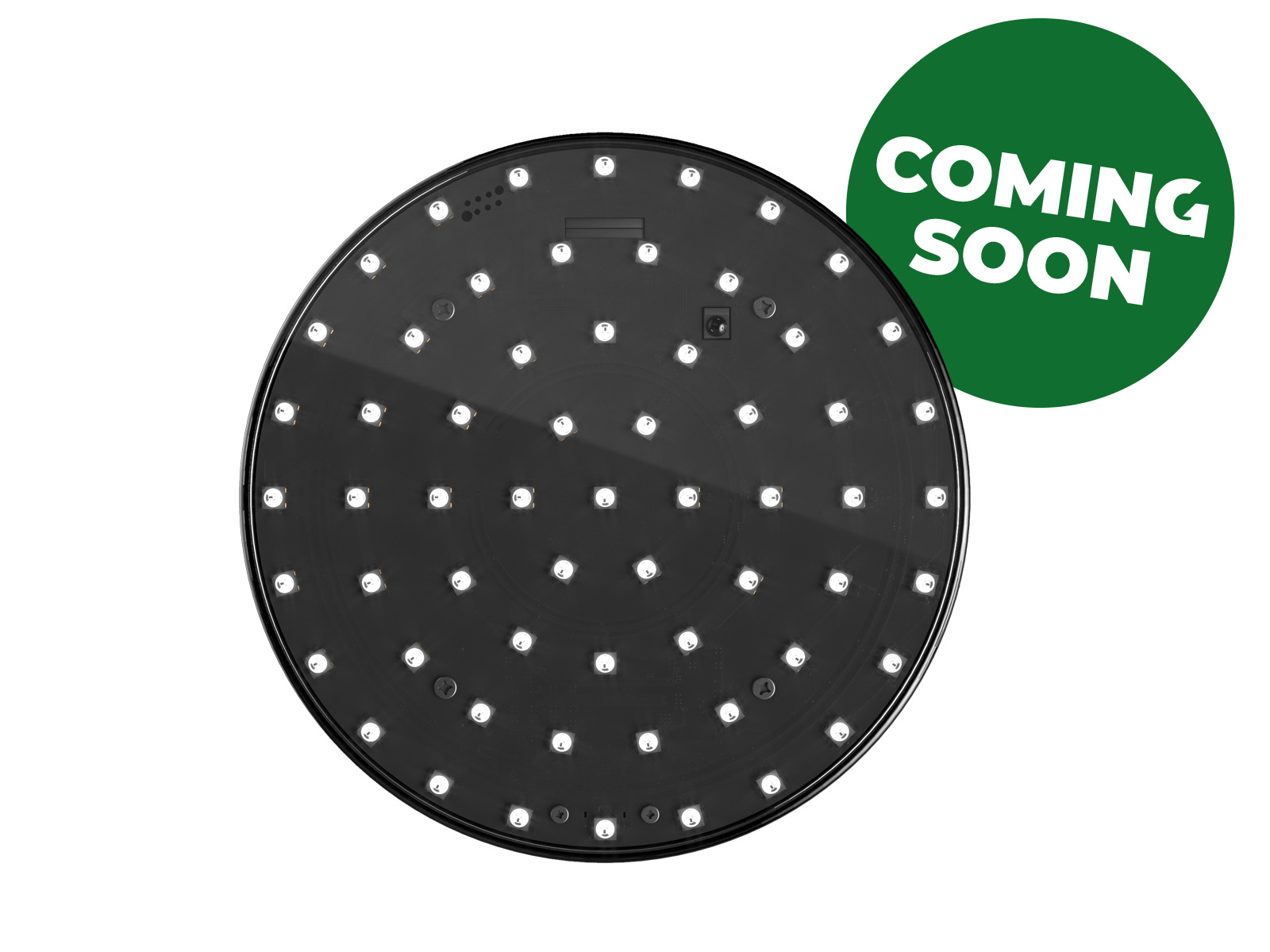

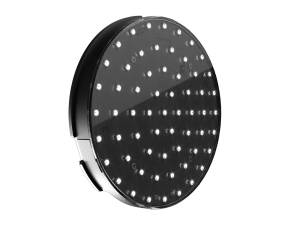

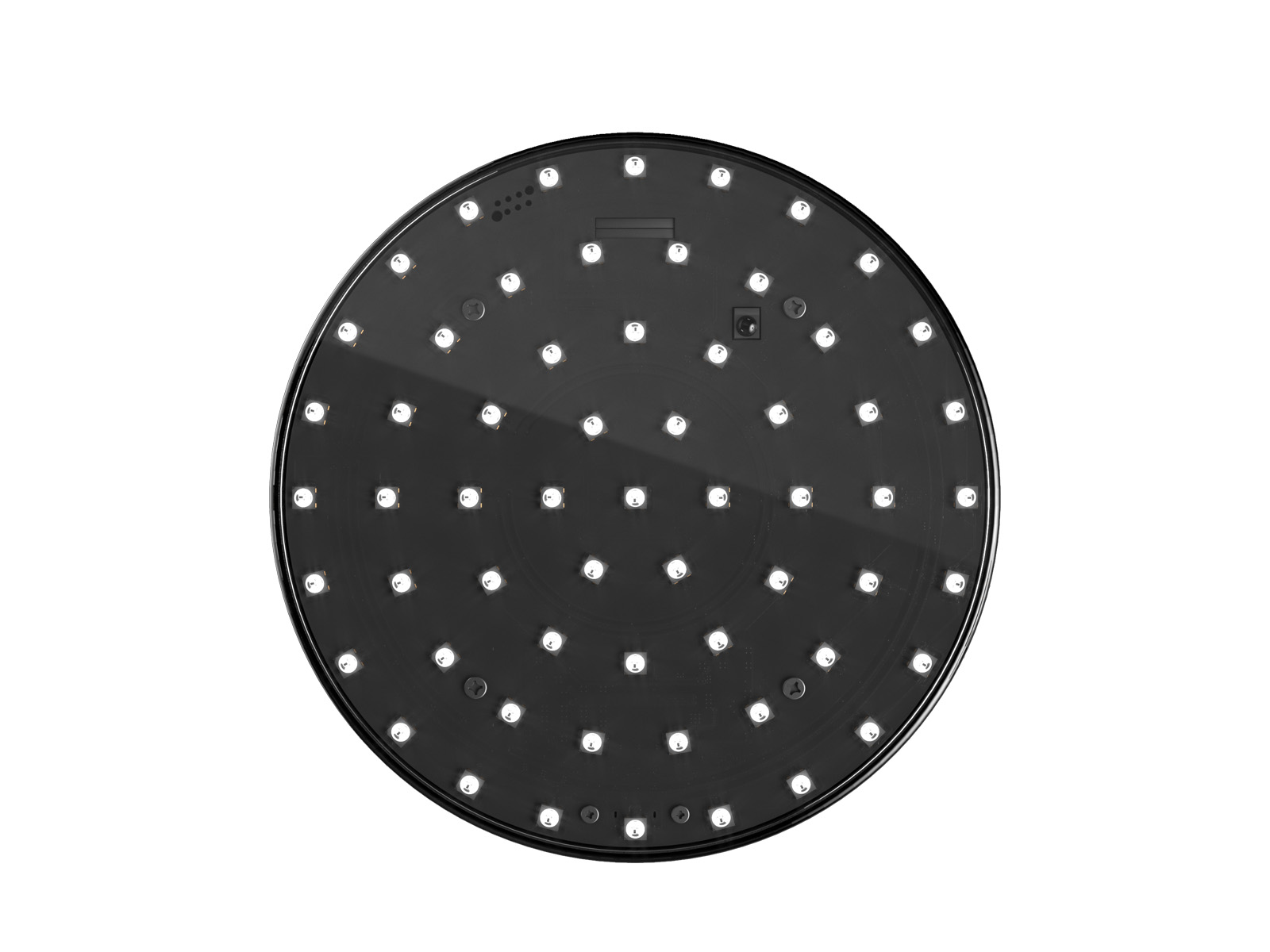

Nexus Circle – Product Data

  • CAD Files: /files/products/nexus-square/GLP_Nexus_Line_Square_Circle_Vectorworks_Rev20250425-1_copy_1.zip
  • Info Material Files: files/products/nexus-circle-product-data/NexusLights-Shapes_datasheet-Rev20251127.pdf
  • Header Image: Nexus Circle
  • Product Picture Gallery:
    Nexus Circle
    Nexus Circle
    Nexus Circle
  • Product info:
    • Long product text (editor):

      The Nexus Circle – a wireless, battery-powered RGBW LED panel with a diameter of 166.7 mm, designed for DJs, professional users, bars, weddings, and events. Equipped with 63 individually controllable RGBW pixels, the Nexus Circle enables precise pixel mapping and dynamic effect programming. Control is provided via the GLP iQ.Control app or Vision Control App for flexible and intuitive operation.

      The robust IP65-rated housing offers magnetic mounting options as well as integrated suspension points for quick and secure installation. A built-in cable channel allows neat routing of up to five USB-C power cables for continuous operation. Future expansions such as wireless DMX, Art-Net, and sACN modules ensure seamless integration into professional lighting networks. Nexus Lights combines innovative technology and modular designs – ideal for demanding lighting applications and creative installations.

      , Short product description: RGBW Creative LED, wireless, battery-powered, app-control
  • Batterie Spezifikationen:
    • Daten enthalten?: Batteriespezifikationen, Kapazität: 5.000 mAh, inkl. Ladekabel: USB C, 90° angewinkelt, Leistungsaufnahme: max. 10 W, Leistungseingang: 5 – 12 V, max. 2 A
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: USB-C, Signalverbindung: GLP iQ.Mesh
  • Aufbau:
    • Daten enthalten?: Aufbau, Eigenschaften: Installations-System | austauschbare Filter, Gehäusefarbe: schwarz, Gehäusematerial: Plastik, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Protokolle: GLP iQ.Mesh, Dimmerkurven: square, Weitere Steuerungsoptionen: Knopf an Hinterseite | App-Steuerung, Geräte-Update: GLP iQ.Control App, Vision Control App
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Tiefe: 166,7 mm / 65.63 in, Höhe: 41,2 mm / 1.62 in, Höhe (Kopf gerade hoch): 25,2 mm / 0.99 in, Höhe (mit Bracket): 0,34 kg / 0.75 lbs, Gewicht (netto): 0,43 kg / 0.95 lbs, Breite: 166,7 mm / 65.63 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Dimmer / Shutter: 0 – 100%, 8 bit
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Half-cycle RMS (@ 230 V): USB-C 90° angled, Netzanschluss Input: 5 – 12 V, max. 2 A, max. Leistung (@ 230 V): max. 10 W, max. Anzahl Geräte auf einer Stromleitung: 5.000 mAh
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: 63 Pixel, LED Refresh Rate: 2.000 Hz, Lebensdauer: 50.000 h, Typ: RGBW LED
  • Installation:
    • Daten enthalten?: Installation, Standort: indoor, outdoor, Befestigung: Montagelöcher, Magnete, Ausrichtung: beliebig
  • Optisches System:
    • Daten enthalten?: Optisches System, Durchmesser Lichtaustrittsfläche: 146 mm / 5.74 in | pro Pixel: 3.8 mm / 0.14 in
  • Light Source:
    • Data Category: Light Source, Count: 63 pixels, LED Refresh Rate: 2,000 Hz, Lifetime: 50,000 h, Type: RGBW LED
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Dimmer / Shutter: 0 – 100%, 8 bit
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: keine, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
  • Connections:
    • Data Category: Connections, Power connection: USB-C, Signal connection: GLP iQ.Mesh
  • Construction:
    • Data Category: Construction, Construction features: mounting system | changeable filter, Housing color: Black, Housing material: plastic, Protection Rating: IP65
  • Battery Specifications:
    • Data Category: Battery Specifications, Capacity: 5,000 mAh, incl. power cable: USB C, 90° angled, Power Draw: max. 10 W, Power Input: 5 – 12 V, max. 2 A
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Half-cycle RMS (@ 230 V): USB-C 90° angled, Power Input: 5 – 12 V, max. 2 A, max. Power (@ 230 V): max. 10 W, max. number of products per current line: 5,000 mAh
  • Installation:
    • Data Category: Installation, Location: Indoor, Indoor, Orientation: any
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Depth: 166.7 mm / 65.63 in, Height: 41.2 mm / 1.62 in, Height (head straight up): 25.2 mm / 0.99 in, Height (with bracket): 0.34 kg / 0.75 lbs, Weight (netto): 0.43 kg / 0.95 lbs, Width: 166.7 mm / 65.63 in
  • Optical System:
    • Data Category: Optical System, Light aperature diameter: 146 mm / 5.74 in | single pixel: 3.8 mm / 0.14 in
  • Control & Programming:
    • Data Category: Control & Programming, Control Protocols: GLP iQ.Mesh, Dimming curves: square, Other control options: single button on rear | control apps, Software update: GLP iQ.Control App, Vision Control App
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: no cooling, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F
  • Hits: 1330

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

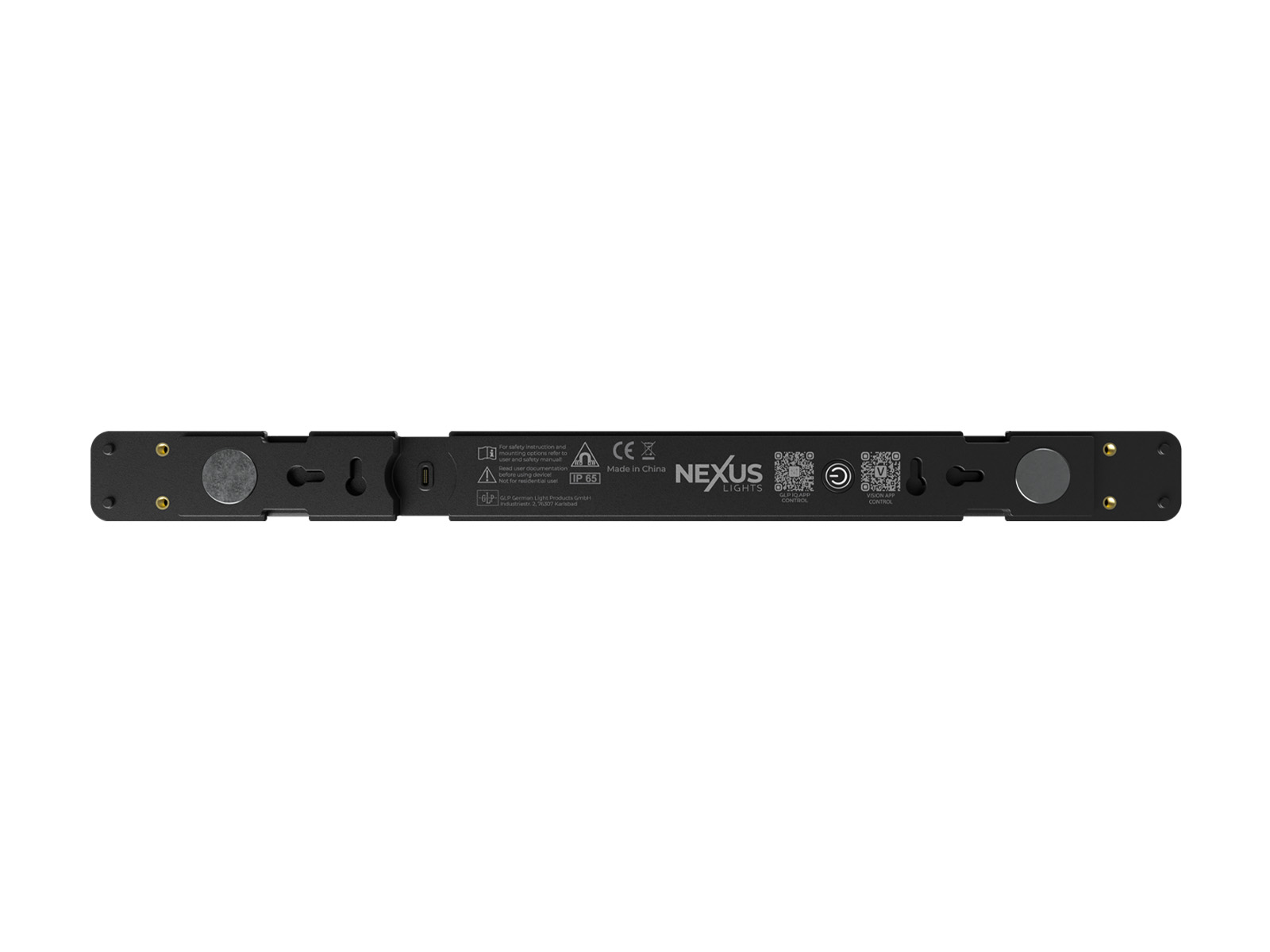

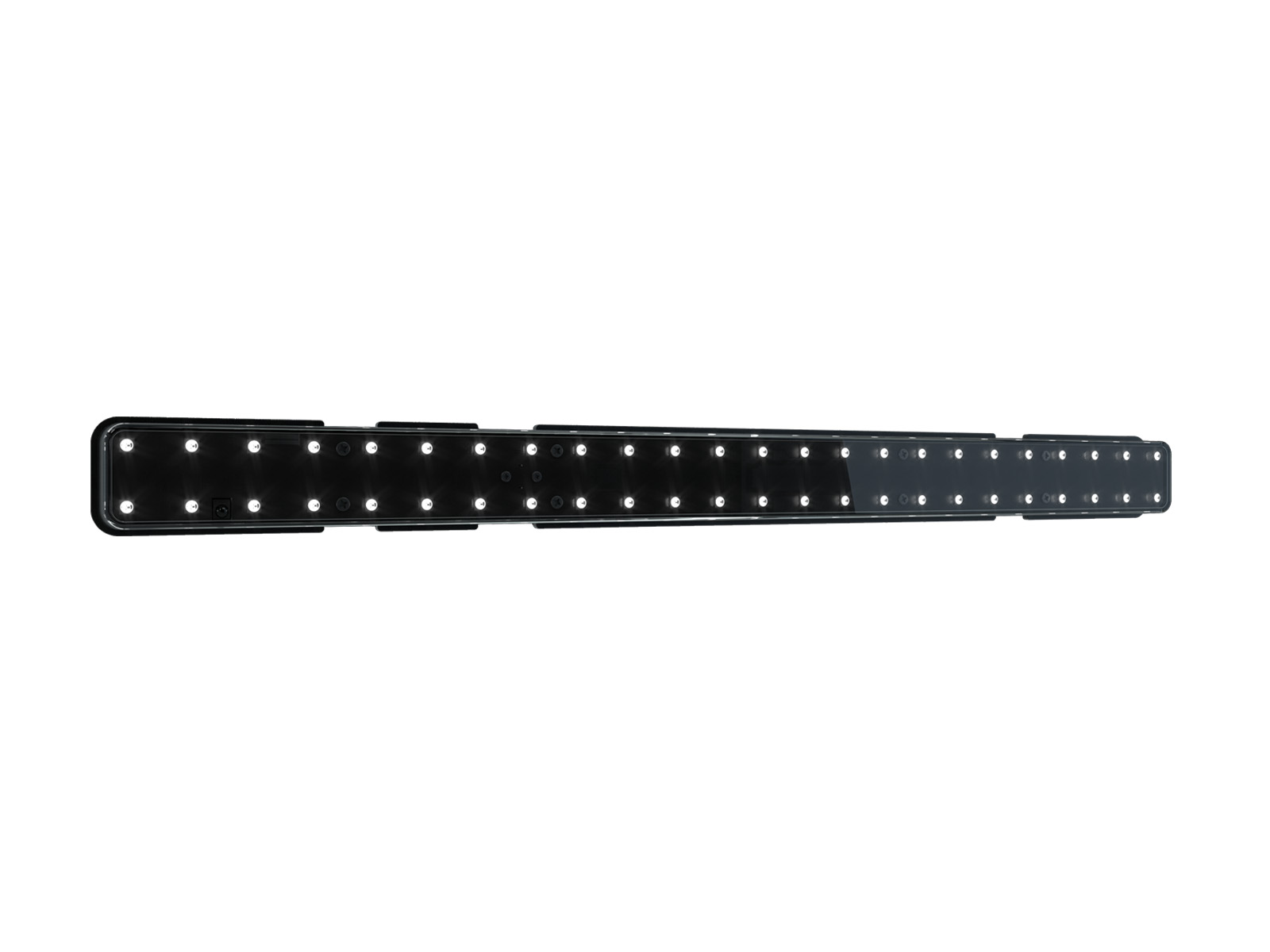

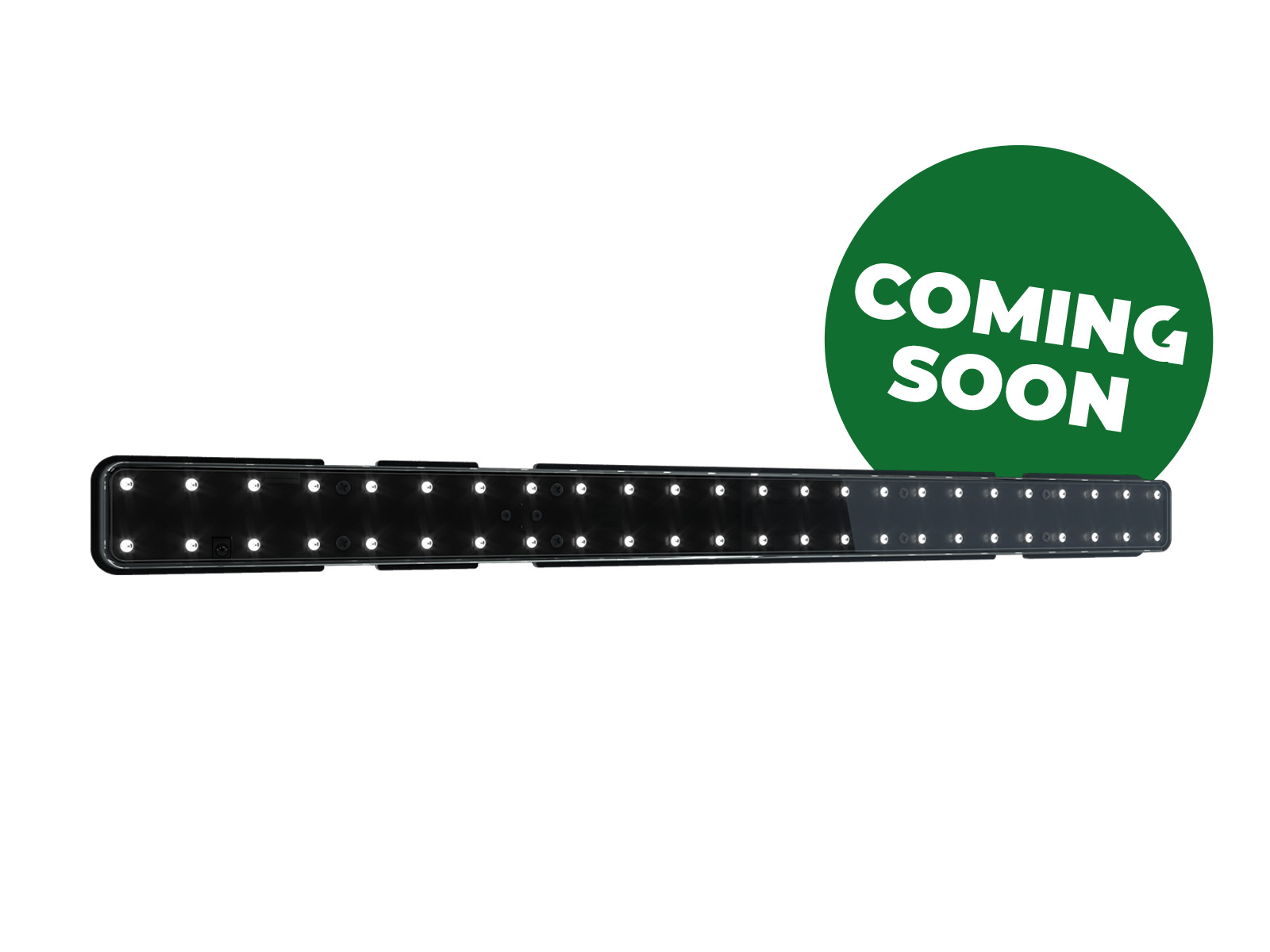

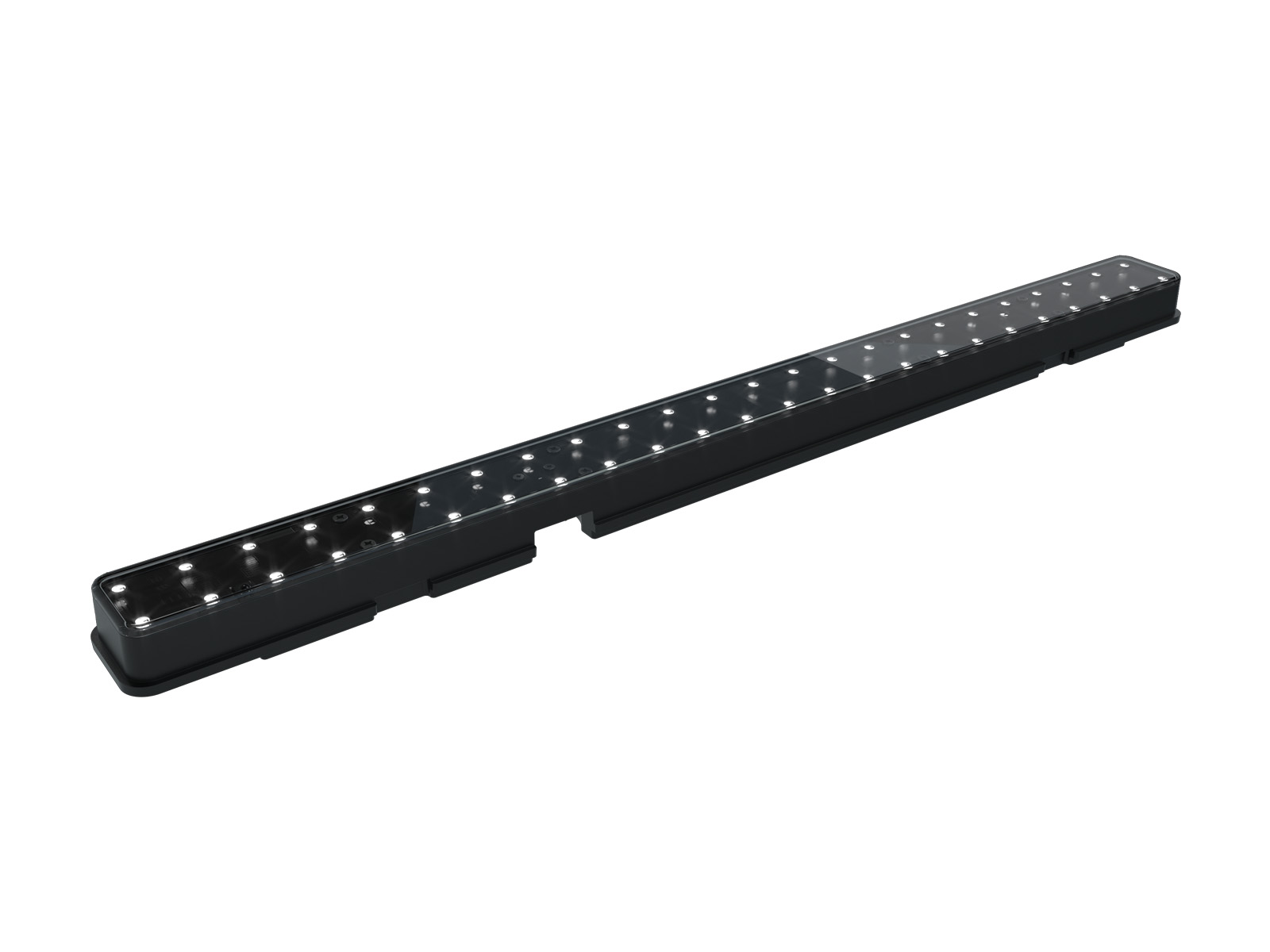

Nexus Line – Product Data

  • CAD Files: /files/products/nexus-square/GLP_Nexus_Line_Square_Circle_Vectorworks_Rev20250425-1_copy_1_copy_1.zip
  • Info Material Files: files/products/nexus-line-product-data/NexusLights-Shapes_datasheet-Rev20251127.pdf
  • Header Image: Nexus Line
  • Product Picture Gallery:
    Nexus Line
    Nexus Line
    Nexus Line
  • Product info:
    • Long product text (editor):

      The Nexus Line– a wireless, battery-powered RGBW LED panel with a size of 500 x 41.5mm, designed for DJs, professional users, bars, weddings, and events. Equipped with 48 individually controllable RGBW pixels, the Nexus Line enables precise pixel mapping and dynamic effect programming. Control is provided via the GLP iQ.Control app or Vision Control App for flexible and intuitive operation.

      The robust IP65-rated housing offers magnetic mounting options as well as integrated suspension points for quick and secure installation. A built-in cable channel allows neat routing of up to five USB-C power cables for continuous operation. Future expansions such as wireless DMX, Art-Net, and sACN modules ensure seamless integration into professional lighting networks. Nexus Lights combines innovative technology and modular designs – ideal for demanding lighting applications and creative installations.

      , Short product description: RGBW Creative LED, wireless, battery-powered, app-control
  • Batterie Spezifikationen:
    • Daten enthalten?: Batteriespezifikationen, Kapazität: 4.400 mAh, inkl. Ladekabel: USB C, 90° angewinkelt, Leistungsaufnahme: max. 10 W, Leistungseingang: 5 – 12 V, max. 2 A
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: USB-C, Signalverbindung: GLP iQ.Mesh
  • Aufbau:
    • Daten enthalten?: Aufbau, Eigenschaften: Installations-System | austauschbare Filter, Gehäusefarbe: schwarz, Gehäusematerial: Plastik, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Protokolle: GLP iQ.Mesh, Dimmerkurven: square, Weitere Steuerungsoptionen: Knopf an Hinterseite | App-Steuerung, Geräte-Update: GLP iQ.Control App, Vision Control App
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Tiefe: 41,5 mm / 1.63 in, Höhe: 41,2 mm / 1.62 in, Höhe (Kopf gerade hoch): 25,2 mm / 0.99 in, Höhe (mit Bracket): 0,36 kg / 0.79 lbs, Gewicht (netto): 0,49 kg / 1.08 lbs, Breite: 500 mm / 19.69 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Dimmer / Shutter: 0 – 100%, 8 bit
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Half-cycle RMS (@ 230 V): USB-C 90° angled, Netzanschluss Input: 5 – 12 V, max. 2 A, max. Leistung (@ 230 V): max. 10 W, max. Anzahl Geräte auf einer Stromleitung: 4.400 mAh
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: 48 Pixel, LED Refresh Rate: 2.000 Hz, Lebensdauer: 50.000 h, Typ: RGBW LED
  • Installation:
    • Daten enthalten?: Installation, Standort: indoor, outdoor, Befestigung: Montagelöcher, Magnete, Ausrichtung: beliebig
  • Optisches System:
    • Daten enthalten?: Optisches System, Lichtaustrittsfläche: 480 x 21 mm / 18.89 x 0.82 in | pro Pixel: 3.8 mm / 0.14 in
  • Light Source:
    • Data Category: Light Source, Count: 48 pixels, LED Refresh Rate: 2,000 Hz, Lifetime: 50,000 h, Type: RGBW LED
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Dimmer / Shutter: 0 – 100%, 8 bit
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: keine, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
  • Connections:
    • Data Category: Connections, Power connection: USB-C, Signal connection: Bluetooth, GLP iQ.Mesh
  • Construction:
    • Data Category: Construction, Construction features: mounting system | changeable filter, Housing color: Black, Housing material: plastic, Protection Rating: IP65
  • Battery Specifications:
    • Data Category: Battery Specifications, Capacity: 4,400 mAh, incl. power cable: USB C, 90° angled, Power Draw: max. 10 W, Power Input: 5 – 12 V, max. 2 A
  • Movement:
    • Data Category: Movement
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Half-cycle RMS (@ 230 V): USB-C 90° angled, Power Input: 5 – 12 V, max. 2 A, max. Power (@ 230 V): max. 10 W, max. number of products per current line: 4,400 mAh
  • Installation:
    • Data Category: Installation, Location: Indoor, Indoor, Orientation: any
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Depth: 41.5 mm / 1.63 in, Height: 41.2 mm / 1.62 in, Height (head straight up): 25.2 mm / 9.92 in, Height (with bracket): 0.36 kg / 0.79 lbs, Weight (netto): 0.49 kg / 1.08, Width: 500 mm / 19.69 in
  • Optical System:
    • Data Category: Optical System, Light Aperature: 480 x 21 mm / 18.89 x 0.82 in | single pixel: 3.8 mm / 0.14 in
  • Control & Programming:
    • Data Category: Control & Programming, Control Protocols: GLP iQ.Mesh, Dimming curves: square, Other control options: single button on rear | control apps, Software update: GLP iQ.Control App, Vision Control App
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: no cooling, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F
  • Hits: 1743
Matrix Eye 2

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

Matrix Eye 2 – Product Data

  • Manual Files: files/products/matrix-eye-2-product-data/GLP_Matrix_Eye_Safety_Manual_EN_Rev20250711-01.pdffiles/products/matrix-eye-2-product-data/GLP_Matrix_Eye_User_Manual_EN_Rev20250711-01.pdf
  • DMX Charts: files/products/matrix-eye-2-product-data/GLP_Matrix_Eye_DMX_Channel_Index_EN_Rev20250711-01.pdf
  • CAD Files: files/products/matrix-eye-2-product-data/GLP_Matrix_Eye_CAD_Package_Rev20250626-1_1.zipfiles/products/matrix-eye-2-product-data/GLP_Matrix_Eye_DRX_Sleeve_CAD_Package_Rev20250626-1.zip
  • Info Material Files: files/products/matrix-eye-2-product-data/GLP_Matrix_Eye_DRX_Sleeve_Information_Rev20250731-1.pdffiles/products/matrix-eye-2-product-data/GLP_Matrix-Eye-2_datasheet-20251118.pdf
  • Header Image: Matrix Eye 2
  • Product Picture Gallery:
    Matrix Eye 2
    Matrix Eye 2
    Matrix Eye 2
    Matrix Eye 2
  • Tender Text Files: files/products/matrix-eye-2-product-data/GLP_MATRIX_Eye_Series_Tendertext_EN_DE_Rev_20250901-1.zip
  • Product info:
    • Long product text (editor):

      The GLP MATRIX Eye is the first fixture in the groundbreaking new MATRIX Series - a smart cluster system that allows you to mechanically link multiple frame fixtures into one seamless lighting unit. Build your own custom lighting system with LED Blinders and more, with additional MATRIX products coming soon.

      Powered by high-efficiency RGBAL LEDs and the innovative GLP iQ.Gamut Color Algorithm, the MATRIX Eye delivers intense color output and high-quality white light with superior color rendering. It faithfully replicates the classic tungsten behavior of traditional DWE Blinders, offering an authentic, warm dimming curve with all the benefits of LED technology.

      Designed for maximum performance and affordability, the MATRIX Eye features a smart yet cost-effective construction. This ensures a low investment price, rapid ROI, and competitive rental rates-making it the perfect choice for lighting professionals who demand reliability, versatility, and cost efficiency.

      Elevate your lighting game with the GLP MATRIX Eye - where innovation meets tradition.
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: Seetronic powerCon TRUE1, Signalverbindung: Seetronic 5-Pin XLR
  • Aufbau:
    • Daten enthalten?: Aufbau, Eigenschaften: Alignment & Linking System | +/- 20° horizontale Ausrichtung der einzelnen Heads, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Color Mix Mode: Snap, Fade, Control Modes: 4, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, DMX Channels: 2 | 19 | 38 | 6, Dimmerkurven: linear, S-Curve, square, Duration Control: Normal, Percentage, Fan Modes: regulated, high, medium, low, Hibernation: vorhanden, High-Res Channels: Dimmer, Output Modes: Boost, Constant, PWM: Optimal | High 1 | High 2 | Max, Pixel Mirror: x-mirror, y-mirror, xy-mirror, Off, DE.Control&Programming.PixelRotation: Off, 90°, 180°, 270°, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool, Weißpunkte: 8.000 K | 6.500 K | 5.600 K | 4.200 K | 3.200 K | Off
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Tiefe: 246 mm / 9.69 in, Tiefe (Kopf gerade hoch): 303 mm / 11.92 in, Höhe: 200 mm / 7.87 in, Höhe (mit Bracket): 11,1 kg / 24.5 lbs, Gewicht (netto): 9,5 kg / 20.94 lbs, Breite: 200 mm / 7.87 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Farbmischung: RGB, RGBAL, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, elektronisch, 8 bit / 16 bit, Shutter-Frequenz: Duration Control, Rate Control, IntensityFX Control, Tungsten Simulation: 8x verknüpft mit festem CCT | 8x relativ zu Colormix
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 700 W
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: 2 Heads, Lebensdauer: 50.000 h, Leistung: pro Head: max. 350 W, Typ: RGBAL LED
  • Installation:
    • Daten enthalten?: Installation, Standort: indoor, outdoor, Ausrichtung: beliebig, vertikal hängend, horizontal seitwärts
  • Optisches System:
    • Daten enthalten?: Optisches System, max. field angle: 100°, min. beam angle: 60°, Licht-Output: bis zu 22.600 lm, Zoomverhältnis: bis zu 13.100 lm
  • Light Source:
    • Data Category: Light Source, Count: 2 Heads, Lifetime: 50,000 h, Power: each Head: max. 350 W, Type: RGBAL LED
  • Lieferung:
    • Daten enthalten?: Lieferung, Tourpack: 4-fach, 6-fach, Flightcase, DRX Sleeve/s (inklusive)
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Color Mixing: RGB, RGBAL, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, electronical, 8 bit / 16 bit, Shutter Frequency: Duration Control, Rate Control, IntensityFX Control, Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: aktive Lüfterkühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 2.600 BTU/hr, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: -10 °C / 14 °F
  • Connections:
    • Data Category: Connections, Power connection: Seetronic powerCon TRUE1, Signal connection: Seetronic 5-Pin XLR
  • Construction:
    • Data Category: Construction, Construction features: Alignment & Linking System | +/-20° horizontal alignment of individual Heads, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP65
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 700 W
  • Installation:
    • Data Category: Installation, Location: Indoor, Outdoor, Orientation: any, vertical hanging, horizontal sideway
  • Shipping:
    • Data Category: Shipping, Tourpack: 4-way, 6-way, Flightcase, DRX Sleeve/s (included)
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Depth: 246 mm / 9.69 in, Depth (head straight up): 303 mm / 11.92 in, Height: 200 mm / 7.87 in, Height (with bracket): 11.1 kg / 24.5 lbs, Weight (netto): 9.5 kg / 20.94 lbs, Width: 200 mm / 7.87 in
  • Optical System:
    • Data Category: Optical System, max. field angle: 100°, min. beam angle: 60°, Total Output: up to 22,600 lm, Zoom ratio: up to 13,100 lm
  • Control & Programming:
    • Data Category: Control & Programming, Control Modes: 4, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, Color Mix Mode: Snap, Fade, DMX Channels: 2 | 19 | 38 | 6, Dimming curves: linear, S-Curve, square, Duration Control: Normal, Percentage, Fan Modes: regulated, high, medium, low, Hibernation: yes, High-Res Channels: Dimmer, Output Modes: Boost, Constant, PWM: Optimal | High 1 | High 2 | Max, Pixel Mirror: x-mirror, y-mirror, xy-mirror, Off, EN.Control&Programming.PixelRotation: Off, 90°, 180°, 270°, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone, Software update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool, White Points: 8,000 K | 6,500 K | 5,600 K | 4,200 K | 3,200 K | Off
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: active fan cooling, Overheating protection: automatic, Total heat dissipation: 2,600 BTU/h, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: -10 °C / 14 °F
  • Hits: 933
Matrix Eye 4

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

Matrix Eye 4 – Product Data

  • Manual Files: files/products/matrix-eye-4-product-data/GLP_Matrix_Eye_Safety_Manual_EN_Rev20250711-01.pdffiles/products/matrix-eye-4-product-data/GLP_Matrix_Eye_User_Manual_EN_Rev20250711-01.pdf
  • DMX Charts: files/products/matrix-eye-4-product-data/GLP_Matrix_Eye_DMX_Channel_Index_EN_Rev20250711-01.pdf
  • Photometric Files: files/products/matrix-eye-4-product-data/GLP_Matrix_Eye_4_Photometrics_Rev20250901-1.zip
  • CAD Files: files/products/matrix-eye-4-product-data/GLP_Matrix_Eye_CAD_Package_Rev20250626-1_1.zipfiles/products/matrix-eye-4-product-data/GLP_Matrix_Eye_DRX_Sleeve_CAD_Package_Rev20250626-1.zip
  • Info Material Files: files/products/matrix-eye-4-product-data/GLP_Matrix_Eye_DRX_Sleeve_Information_Rev20250731-1.pdffiles/products/matrix-eye-4-product-data/GLP_Matrix-Eye-4_datasheet-20251118.pdf
  • Header Image: Matrix Eye 4
  • Product Picture Gallery:
    Matrix Eye 4
    Matrix Eye 4
    Matrix Eye 4
    Matrix Eye 4
    Matrix Eye 4
  • Tender Text Files: files/products/matrix-eye-4-product-data/GLP_MATRIX_Eye_Series_Tendertext_EN_DE_Rev_20250901-1.zip
  • Product info:
    • Long product text (editor):

      The GLP MATRIX Eye is the first fixture in the groundbreaking new MATRIX Series – a smart cluster system that allows you to mechanically link multiple frame fixtures into one seamless lighting unit. Build your own custom lighting system with LED Blinders and more, with additional MATRIX products coming soon.

      Powered by high-efficiency RGBAL LEDs and the innovative GLP iQ.Gamut Color Algorithm, the MATRIX Eye delivers intense color output and high-quality white light with superior color rendering. It faithfully replicates the classic tungsten behavior of traditional DWE Blinders, offering an authentic, warm dimming curve with all the benefits of LED technology.

      Designed for maximum performance and affordability, the MATRIX Eye features a smart yet cost-effective construction. This ensures a low investment price, rapid ROI, and competitive rental rates—making it the perfect choice for lighting professionals who demand reliability, versatility, and cost efficiency.

      Elevate your lighting game with the GLP MATRIX Eye – where innovation meets tradition.
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: Seetronic powerCon TRUE1, Signalverbindung: Seetronic 5-Pin XLR
  • Aufbau:
    • Daten enthalten?: Aufbau, Eigenschaften: Alignment & Linking System | +/- 20° horizontale Ausrichtung der einzelnen Heads, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Color Mix Mode: Snap, Fade, Control Modes: 4, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, DMX Channels: 4 | 19 | 76 | 12, Dimmerkurven: linear, S-Curve, square, Duration Control: Normal, Percentage, Fan Modes: regulated, high, medium, low, Hibernation: vorhanden, High-Res Channels: Dimmer, Output Modes: Boost, Constant, PWM: Optimal | High 1 | High 2 | Max, Pixel Mirror: x-mirror, y-mirror, xy-mirror, Off, DE.Control&Programming.PixelRotation: Off, 90°, 180°, 270°, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool, Weißpunkte: 8.000 K | 6.500 K | 5.600 K | 4.200 K | 3.200 K | Off
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Tiefe: 246 mm / 9.69 in, Tiefe (Kopf gerade hoch): 353 mm / 13.89, Höhe: 400 mm / 15.74 in, Höhe (mit Bracket): 15,3 kg / 33.7 lbs, Gewicht (netto): 13,5 kg / 29.76 lbs, Breite: 400 mm / 15.74 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Farbmischung: RGB, RGBAL, CTC: offen, variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, elektronisch, 8 bit / 16 bit, Shutter-Frequenz: Duration Control, Rate Control, IntensityFX Control, Tungsten Simulation: 8x verknüpft mit festem CCT | 8x relativ zu Colormix
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 1.400 W
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, Anzahl: 4 Heads, Lebensdauer: 50.000 h, Leistung: pro Head: max. 350 W, Typ: RGBAL LED
  • Installation:
    • Daten enthalten?: Installation, Standort: indoor, outdoor, Ausrichtung: beliebig, vertikal hängend, horizontal seitwärts
  • Optisches System:
    • Daten enthalten?: Optisches System, max. field angle: 100°, min. beam angle: 60°, Licht-Output: bis zu 45.200 lm, Zoomverhältnis: bis zu 26.200 lm
  • Light Source:
    • Data Category: Light Source, Count: 4 Heads, Lifetime: 50,000 h, Power: each Head: max. 350 W, Type: RGBAL LED
  • Lieferung:
    • Daten enthalten?: Lieferung, Tourpack: 3-fach, 4-fach, Flightcase, DRX Sleeve/s (inklusive)
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Color Mixing: RGB, RGBAL, CTC: open, variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, electronical, 8 bit / 16 bit, Shutter Frequency: Duration Control, Rate Control, IntensityFX Control, Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: aktive Lüfterkühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 4.800 BTU/hr, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: -10 °C / 14 °F
  • Connections:
    • Data Category: Connections, Power connection: Seetronic powerCon TRUE1, Signal connection: Seetronic 5-Pin XLR
  • Construction:
    • Data Category: Construction, Construction features: Alignment & Linking System | +/-20° horizontal alignment of individual Head, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP65
  • Electrical Specifications:
    • Data Category: Electrical Specifications, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 1,400 W
  • Installation:
    • Data Category: Installation, Location: Indoor, Outdoor, Orientation: any, vertical hanging, horizontal sideway
  • Shipping:
    • Data Category: Shipping, Tourpack: 3-way, 4-way, Flightcase, DRX Sleeve/s (included)
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Depth: 246 mm / 9.69 in, Depth (head straight up): 353 mm / 13.89 in, Height: 400 mm / 15.75 in, Height (with bracket): 15.3 kg / 33.7 lbs, Weight (netto): 13.5 kg / 29.76 lbs, Width: 400 mm / 15.75 in
  • Optical System:
    • Data Category: Optical System, max. field angle: 100°, min. beam angle: 60°, Total Output: up to 45,200 lm, Zoom ratio: up to 26,200 lm
  • Control & Programming:
    • Data Category: Control & Programming, Control Modes: 4, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), GLP iQ.Mesh, Color Mix Mode: Snap, Fade, DMX Channels: 4 | 19 | 76 | 12, Dimming curves: linear, S-Curve, square, Duration Control: Normal, Percentage, Fan Modes: regulated, high, medium, low, Hibernation: yes, High-Res Channels: Dimmer, Output Modes: Boost, Constant, PWM: Optimal | High 1 | High 2 | Max, Pixel Mirror: x-mirror, y-mirror, xy-mirror, Off, EN.Control&Programming.PixelRotation: Off, 90°, 180°, 270°, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone, Software update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool, White Points: 8,000 K | 6,500 K | 5,600 K | 4,200 K | 3,200 K | Off
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: active fan cooling, Overheating protection: automatic, Total heat dissipation: 4,800 BTU/hr, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: -10 °C / 14 °F
  • Hits: 434

Written by Elisabeth Riemesch on . Posted in PD Event Lighting.

X5 atom – Product Data

  • Manual Files: files/products/x5-atom-product-data/GLP_X5_Atom_IP_User_Safety_Manual_EN_Rev20250825-01.pdf
  • DMX Charts: files/products/x5-atom-product-data/GLP_X5_Atom_IP_DMX_Channel_Index_EN_Rev20250825-1.pdf
  • Photometric Files: files/products/x5-atom-product-data/GLP_X5_Atom_Head_PSU_Photometric_Report_Rev20241028-1.zip
  • Info Material Files: files/products/x5-atom-product-data/X5-atom_datasheet-Rev20250902.pdf
  • Product Picture Gallery:
    X5 atom
    X5 atom
    X5 atom
  • Product info:
    • Long product text (editor):

      Big performance, compact form – the GLP X5 Atom delivers unmatched versatility for any project, anywhere.

      The GLP X5 Atom takes the legacy of the X4 Atom to new heights, designed to be as versatile, powerful, and as lightweight as possible. This compact fixture seamlessly fits into the tightest spaces while delivering big, dynamic coverage, making it an essential tool across industries – from TV, film, and corporate events to stage design, architecture, and concert touring.

      Equipped with high-output RGBL-LEDs, the X5 Atom ensures perfectly calibrated, full-spectrum white outputs within its small frame. The powerful 9:1 zoom ratio transitions smoothly from a 32° wash to a tight 3.5° beam, ideal for pinpoint accuracy and stunning mid-air effects, with even color and light intensity distribution.

      The X5 Atom runs from an external PSU via a 4 pin XLR cable, enabling the head unit to be tucked into small spaces and still deliver a big impact.

      Ready for all environments, the IP65-rated housing allows year-round indoor or outdoor use. The X5 Atom also features a smart interlock system for quick connection, enabling flexible configurations – from singles to grids – while keeping individual control for each head. With compatibility for X4 Atom accessories, a removable yoke, and compatibility with industry-standard power infrastructure, the X5 Atom streamlines setup and reduces environmental impact.

      From one-of-a-kind visuals to effortless adaptability, the GLP X5 Atom is your go-to fixture for any project, anywhere.

      , Short product description: Compact Beam head with 32° wash to a tight 3.5° beam
  • Anschlüsse:
    • Daten enthalten?: Anschlüsse, Netzanschluss: Neutrik XLR 4-Pin In
  • Aufbau:
    • Daten enthalten?: Aufbau, Eigenschaften: klappbares Bracket zur Aufhängung und Aufstellung auf dem Boden | 4 GLP Slide In Anschlüsse, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: Steuerung & Programmierung, Control Modes: 3, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: 17 | 60 | 84, Dimmerkurven: linear, soft, S-Curve, High-Res Channels: Dimmer, kein Signal: Blackout, Hold, Houselight, Stand Alone Scene, Weitere Steuerungsoptionen: Display-Modi: Auto, On, Off, PWM: variabel, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, 1 Scene Stand Alone, Weißpunkte: 8.000 K | 6.500 K | 5.600 K | 4.200 K | 3.200 K
  • Maße & Gewicht:
    • Daten enthalten?: Maẞe & Gewicht, Höhe: 178 mm / 7 in, Höhe (Kopf gerade hoch): 0,4 kg / 0.9 lbs, Höhe (mit Bracket): 2,5 kg / 5 lbs, Gewicht (netto): 2,1 kg / 4.6 lbs, Breite: 127 mm / 5 in
  • Dynamische Effekte:
    • Daten enthalten?: Dynamische Effekte, Farbmischung: RGB, RGBL, x;y, Dimmer / Shutter: 0 – 100%, 16 bit, iQ.Gamut: Full, Rec.709, Rec.2020, DCI P3.65
  • Elektrische Spezifikationen:
    • Daten enthalten?: Elektrische Spezifikationen, max. Leistung (@ 230 V): Head einzeln: 40 W | PSU mit 6 Heads: 300 W
  • Lichtquelle:
    • Daten enthalten?: Lichtquelle, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4.600 Hz, High 2: 13.000 Hz, alle Werte gerundet; für genauere Informationen GLP Support kontaktieren, Leistung: 40 W, Typ: RGBL LED
  • Installation:
    • Daten enthalten?: Installation, Befestigung: 1 Öse für Sicherungskabel, Bracket für Deckenaufhängung und Aufstellung auf dem Boden, Ausrichtung: beliebig
  • Optisches System:
    • Daten enthalten?: Optisches System, max. Zoom: 32°, min. Zoom: 3,5°, Licht-Output: bis zu 430 lm, Zoomverhältnis: 1:9
  • Light Source:
    • Data Category: Light Source, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; for detailed information, contact GLP Supprt, Power: 40 W, Type: RGBL LED
  • Lieferung:
    • Daten enthalten?: Lieferung, einzelnes Gerät: Karton, Tourpack: 6-fach, Flightcase, Omega Brackets
  • Dynamic Effects:
    • Data Category: Dynamic Effects, Color Mixing: RGB, RGBL, x;y, Dimmer / Shutter: 0 – 100%, 16 bit, iQ.Gamut: Full, Rec.709, Rec.2020, DCI P3.65, Zoom: 8 bit
  • Thermische Spezifikationen:
    • Daten enthalten?: Thermische Spezifikationen, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 140 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: -10 °C / 14 °F
  • Connections:
    • Data Category: Connections, Power connection: Neutrik XLR 4-Pin In
  • Construction:
    • Data Category: Construction, Construction features: Foldable floorstand- and hanging bracket | 4 GLP slide In connectors, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP65
  • Electrical Specifications:
    • Data Category: Electrical Specifications, max. Power (@ 230 V): per Head: 40 W | PSU with 6 Heads: 300 W, max. number of products per current line: 1
  • Installation:
    • Data Category: Installation, Location: Indoor, Outdoor, Mounting: 1 eyelet for safety cable, installation Bracket for surface and ceiling mount, Orientation: any
  • Shipping:
    • Data Category: Shipping, single fixture: carton, Tourpack: 6-way, Flightcase
  • Dimensions & Weight:
    • Data Category: Dimensions & Weight, Height: 178 mm / 7 in, Height (head straight up): 0.4 kg / 0.9 lbs, Height (with bracket): 2.5 kg / 5 lbs, Weight (netto): 2.1 kg / 4.6 lbs, Width: 127 mm / 5 in
  • Optical System:
    • Data Category: Optical System, max. Zoom: 32°, min. Zoom: 3.5°, Total Output: up to 430 lm, Zoom ratio: 1:9
  • Control & Programming:
    • Data Category: Control & Programming, Control Modes: 3, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: 17 | 60 | 84, Dimming curves: linear, soft, S-Curve, Hibernation: yes, High-Res Channels: Dimmer, No signal: Blackout, Hold, Houselight, Stand Alone Scene, Other control options: Display Mode: Auto, On, Off, PWM: variable, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, 1 Scene Stand Alone, Software update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool, White Points: 8,000 K | 6,500 K | 5,600 K | 4,200 K | 3,200 K
  • Thermal Specifications:
    • Data Category: Thermal Specifications, Cooling Type: combined convection and forced air, Overheating protection: automatic, Total heat dissipation: 140 BTU/h, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: -10 °C / 14 °F
  • Approvals & Classifications:
    • Risk Group EN 62471: Risk Group 2
  • Hits: 497
GLP – German Light Products
Links
Applications
Products
Company
Contact
©2026 GLP German Light Products GmbH. All rights reserved.
