WildBar 8
WildBar 8

WildBar 8

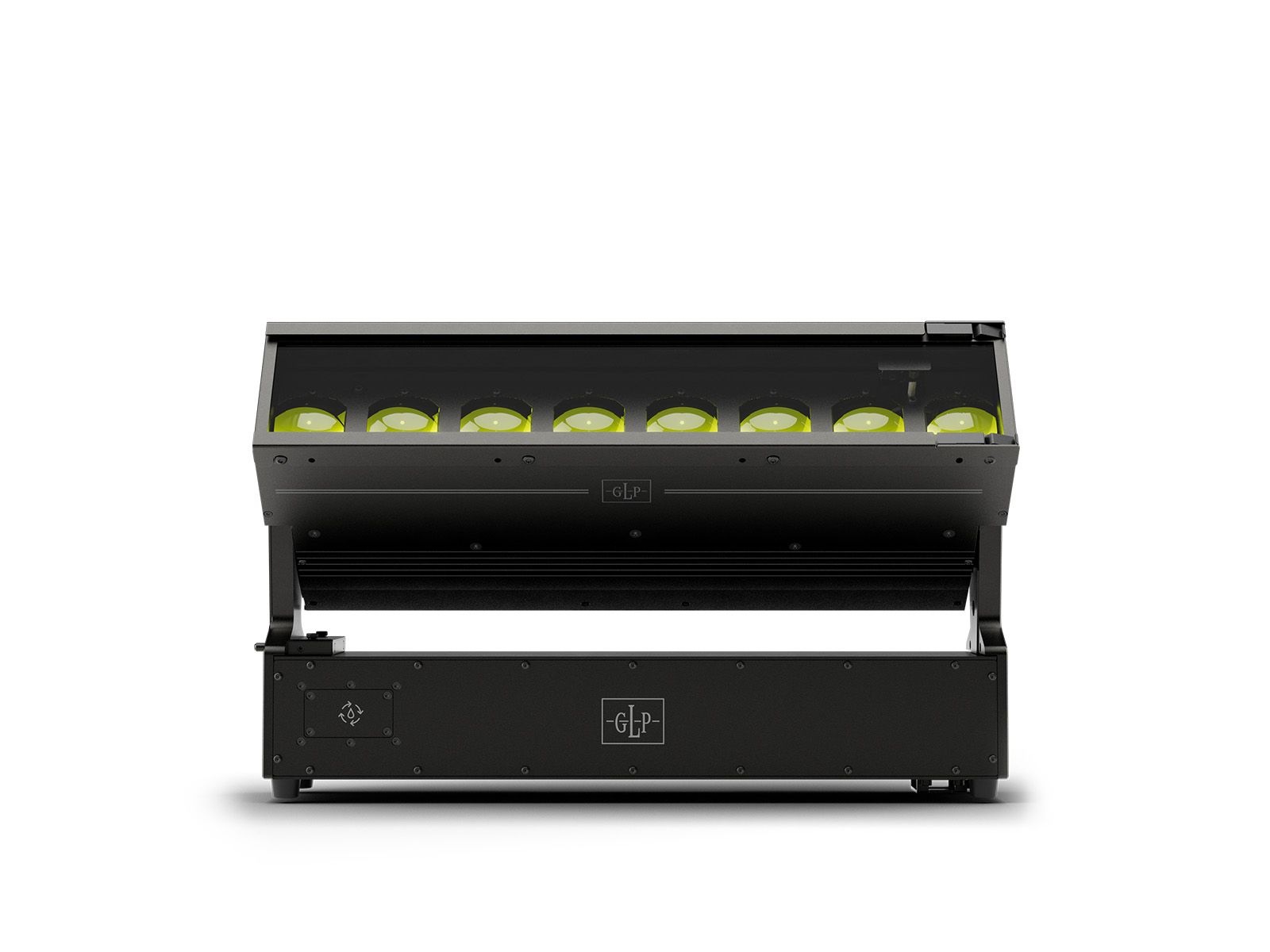

The WildBar 8 brings the proven performance and creative flexibility of the WildBar family into a compact new format.

Developed in response to strong demand from lighting designers and production professionals, it combines eight powerful RGBLime LEDs with a fast motorized tilt and an extensive zoom range. Its shorter housing makes it ideal for tighter spaces, smaller stages, scenic integration and applications where the WildBar 16 would simply be too large.

Thanks to GLP’s patented seamless pixel pitch technology, the WildBar 8 can be combined directly with the WildBar 16 while maintaining perfectly consistent spacing between every LED. Different fixture lengths can therefore be mixed freely to create one continuous visual line without visible interruptions.

With its slim design, IP65-rated construction and signature GLP color performance, the WildBar 8 delivers the full WildBar experience in a more compact and versatile package.

Different sizes. One seamless WildBar family.

WildBar 8
Pictures

Technical Data

Technical Data
Type
RGBL LED
Count
16
Power
per pixel: 40 W
Light Source Lifetime
50,000 h
CRI (Ra)
76
TLCI
67
TM-30-15
79 / 110
Total Output
up to 4,500 lm
Peak Luminous Intensity
383 kcd
min. Zoom
max. Zoom
44°
Zoom Ratio
1:11
Color Mixing
RGBL
Dimmer / Shutter
0 – 100%, 16 bit
Shutter Frequency
3 Hz to 24 Hz
Protocols
DMX (USITT DMX512-A) | RDM (ANSI/ESTA E1.20) | Art-Net | sACN | GLP iQ.Mesh
High-Res Channels
Dimmer | Tilt
Dimming Curves
linear | soft | S-Curve
Performance Modes
Fast | Normal (Balanced) | Smooth
Fan Modes
regulated | high | medium | low
PWM
Low | Optimal | High 1 | High 2
Setting and Addressing
backlit graphic LCD | 4 Button Menu Navigation | DMX | RDM | 1 Scene Stand Alone
Other Control Options
Pattern-FX-Engine
Software Update
DMX Link via Dprog | GLP iQ.Mesh | GLP iQ.Tool
Power Connection
seetronic-powercon-true1-inout
Signal Connection
seetronic-xlr-5-pin-in | seetronic-ethercon-porta-b-failsafe
Housing Color
Black
Housing Material
high-impact flame-retardand thermoplastic | aluminum | steel metal plates
Protection Rating
IP65
Construction Features
Tilt-Lock-System | Alignment System | optional: Frontfilter Adapter
Height
321 mm / 13 in
Height (head straight up)
306 mm / 12 in
Width (across head)
500 mm / 20 in
Depth
112.7 mm / 4.5 in
Weight (netto)
13.5 kg / 30 lbs
Power Input
100 – 240 VAC / 50 – 60 Hz
Power Supply Unit
auto-ranging electronic switch-mode
max. Power (@ 230 V)
350 W
Mounting
4 pairs of 1/4-turn locks | eyelets for safety cable
Orientation
any
Location
Indoor temporary | Outdoor temporary
min. Distance to Combustible Materials
0.1 m
min. Distance to Illuminated Surfaces
1.0 m
Tilt
200°, 16 bit
Cooling
combined convection and forced air
min. Ambient Temperature
-10 °C / 14 °F
max. Ambient Temperature
45 °C / 113 °F

Downloads

Downloads
Safety and warranty information outdoor fixtures
Rev: 2023-12-13
183 kB
Download
GDTF Fixture
GDTF-Share
GLP WildBar 8 Datasheet
Rev: 2026-09-02
0.22 MB
Download
