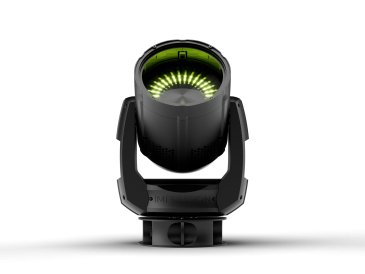

impression FR1

The new GLP impression FR1 is the latest compact LED moving head which offers a soft pencil beam and super fast movement and continuous pan rotation for amazing 3D multi beam designs.

But that's not all – the optical system can move from a 3.7° soft narrow beam to a 35°soft wide wash light. Optionally it is possible to remove the soft front diffusor to get a more hard edge beam in 3,7°. The high quality OsramRGBW Quad LED emits saturated colors and white light of all relevant color temperatures – selectable via RGBW-or CTO-Control. The new micro Fresnel front lens has a homogeny round image and visibility at plan view – which is needed for TV applications.

The GLP impression FR1 has been designed with the famous baseless design and an extremely and compact body easily fitting into the tightest spaces of set designs from concert and touring stages, television and film, corporate events, set lighting to special events.

Art. No.NameDescription
7686
impression FR1
Housing color: black
7684
impression FR1 White
Housing color: white
impression FR1
Pictures

Technical Data

Technical Data
Type
RGBW LED
Count
1
Power
60 W
Lifetime
50,000 h
CRI (Ra)
80+
TLCI
80+
TM-30-15
77 / 106
Output
790 lm
Peak Luminous Intensity
105 kcd
min. Zoom
3.7°
max. Zoom
35°
Zoom Ratio
1:10
Front Lens
100 mm / 3.94 in
Color Mixing
RGBW
CTC
variable 2,500 – 10,000 K
Dimmer / Shutter
0 – 100%, electronical
DMX Channels
16
Control Modes
1
High-Res Channels
Intensity | Pan | Tilt
Dimming Curves
linear, soft
Fan Modes
regulated, high, medium, low
Setting & Addressing
backlit graphic LCD | 4 Button Menu Navigation | DMX | RDM
Power Input
Neutrik powerCON TRUE1 In/Out
Signal Connection
Neutrik XLR 5-Pin In/Out
Housing Color
Black | White
Housing Material
high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating
IP20
Construction Features
baseless Design
Height
264 mm / 10.4 in
Width
190 mm / 7.5 in
Depth
140 mm / 5.5 in
Weight (netto)
4 kg / 8.8 lbs
Power Input
100 – 240 VAC / 50 – 60 Hz
Power Supply Unit
auto-ranging electronic switch-mode
max. Power (@ 230 V)
85 W
Fuse
T5A 20mm
max. number of devices on one power line
at 230 V: 40 | at 110 V: 20
EEC
E
EEI
1.193
Ec
68
Mounting
1 eyelet for safety cable | M10 thread | rubber feet
Orientation
any
Location
trocken
min. distance to combustible materials
0.1 m
min. distance to illuminated surfaces
1.0 m
Pan Angle
629° continuous
Tilt Angle
210°
Single Fixture
carton
Tourpack
6-way | 12-way | Flightcase
Cooling
combined convection and forced air
Overheating Protection
automatic
min. Ambient Temperature
5 °C / 40 °F
max. Ambient Temperature
45 °C / 113 °F
Total Heat Dissipation
290 BTU/h
