impression X4 S – Product Data

• Manual Files: files/products/impression-x4-s-product-data/impression_X4_S_v1.5_DE.pdffiles/products/impression-x4-s-product-data/impression_X4_S_v1.5_EN.pdf
• DMX Charts: files/products/impression-x4-s-product-data/impression_X4_S_DMX_DE.pdffiles/products/impression-x4-s-product-data/impression_X4_S_DMX_EN.pdffiles/products/impression-x4-s-product-data/impression_X4_S_DMX_Pattern_Appendix_A_V1.00.PDF
• Photometric Files: files/products/impression-x4-s-product-data/impression_X4_S_Photometric_Data.pdf
• CAD Files: files/products/impression-x4-s-product-data/GLP_impression_X4S_CAD_Rev20210216.zip
• Info Material Files: files/products/impression-x4-s-product-data/20220514_-_GLP_impression_X4_Series_Tech_Note-v4-20221213_082258_copy_4.pdffiles/products/impression-x4-s-product-data/GLP_X4S.pdffiles/products/impression-x4-s-product-data/impression_X4_S_Flyer_EN.pdf
• Header Image:
• Product Picture Gallery:

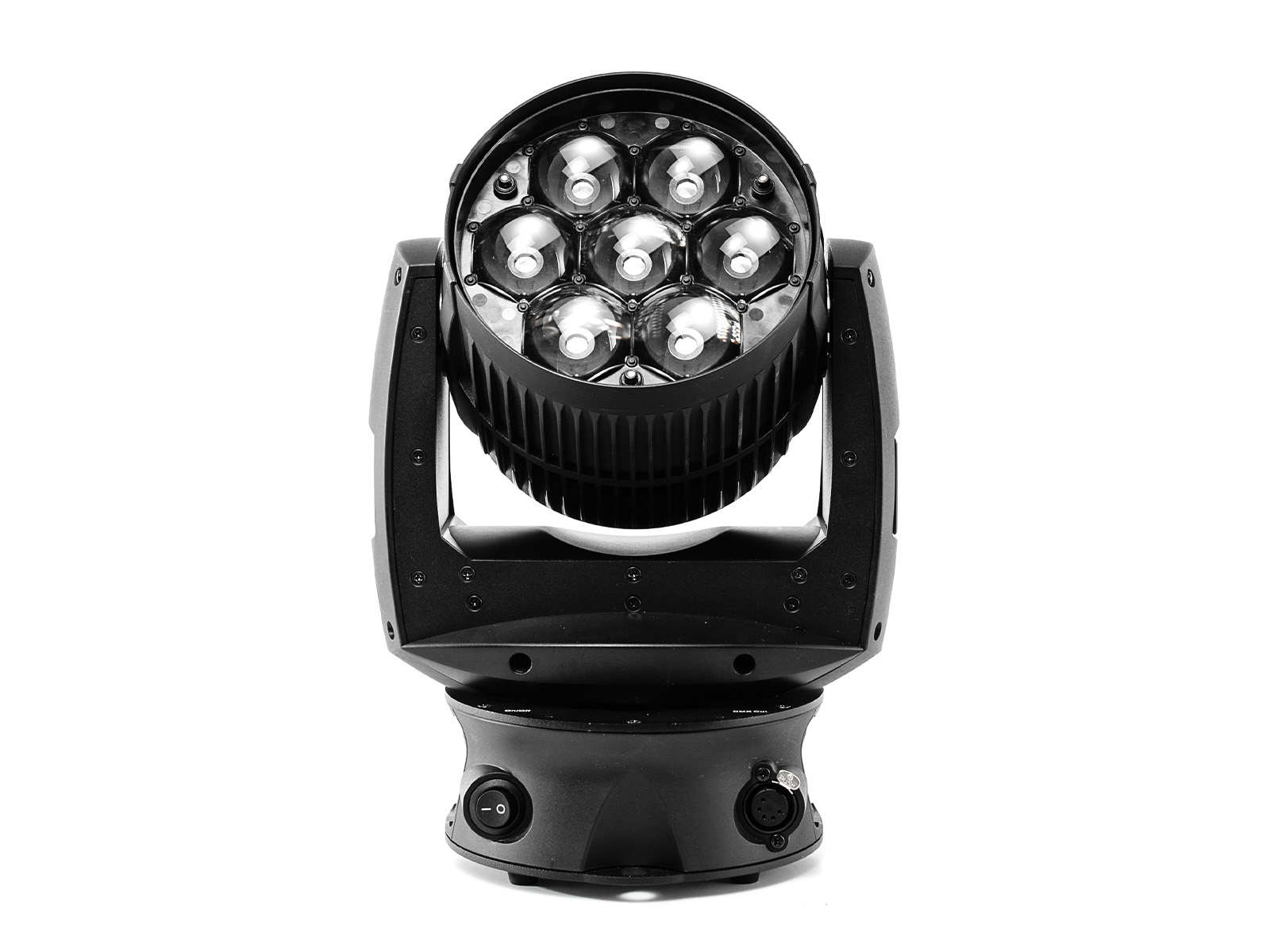

  impression X4 S

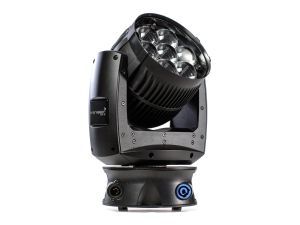

  impression X4 S

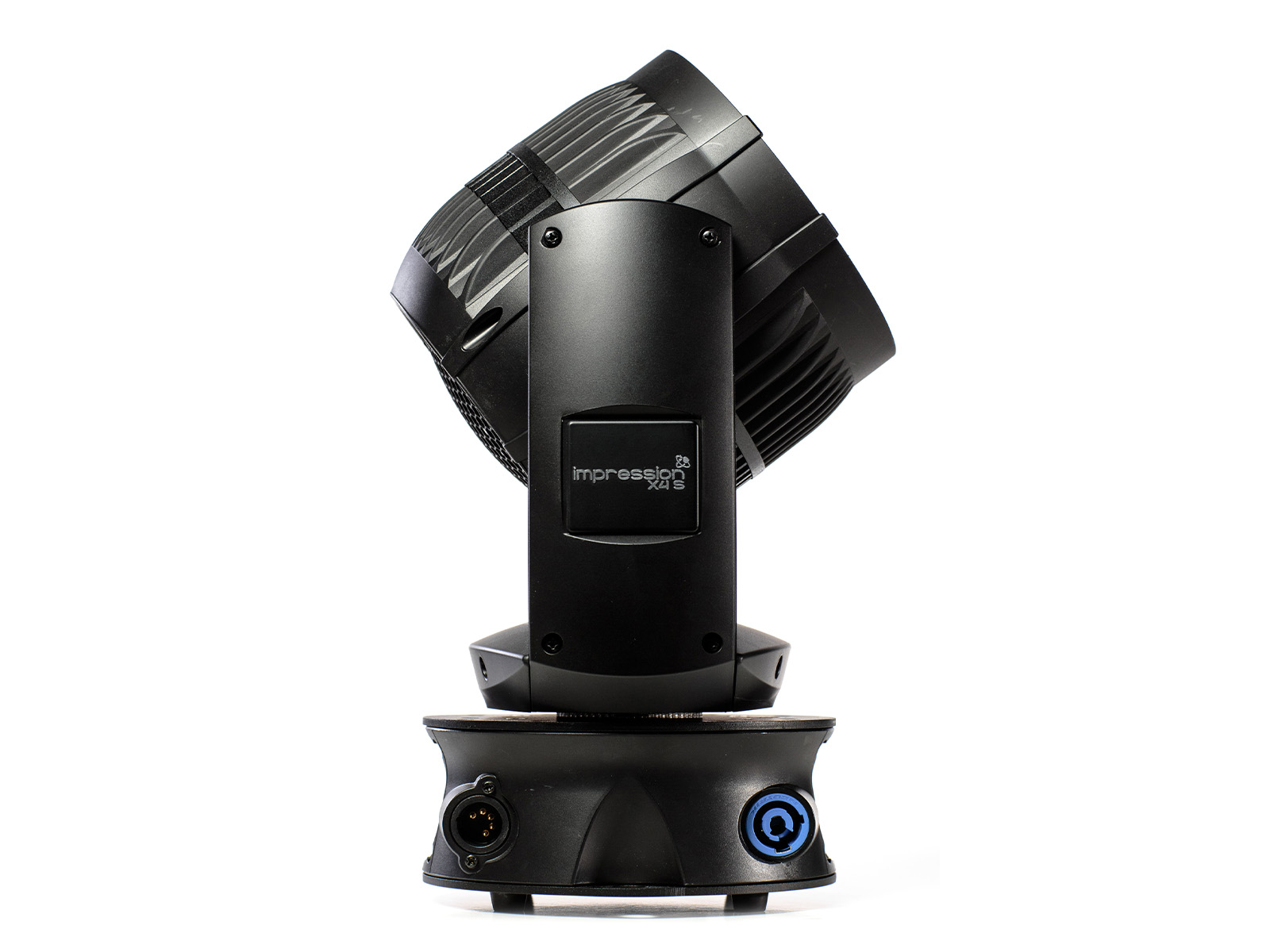

  impression X4 S

• Product info:
  • Long product text (editor):

    The impression X4S features 7 RGBW high power LEDs (each 15 watts) and a 7° – 50° zoom optics. The optics, originally from the impression X4 has the same characteristics as a well-defined hard beam in the lower zoom range and in the middle and upper range zoom absolutely homogeneous and soft. All this without disturbing scattered light.

    Emphasis was placed on the X4S for a compact body and a quick pan / tilt movement.

    , Short product description: The impression X4 S features 7 RGBW high power LEDs (each 15 W) and a 7° – 50° zoom optics
• Anschlüsse:
  • Daten enthalten?: Anschlüsse, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: Aufbau, Gehäusefarbe: schwarz, Sonderfarben auf Anfrage
• Steuerung & Programmierung:
  • Daten enthalten?: Steuerung & Programmierung, Control Modes: Normal | Compressed | HighRes, Protokolle: DMX (USITT DMX512-A), Einstellung und Adressierung: beleuchtetes Grafik-LCD
• Maße & Gewicht:
  • Daten enthalten?: Maße & Gewicht, Tiefe (Kopf gerade hoch): 165,5 mm / 6.5 in, Höhe (Kopf gerade hoch): 324 mm / 12.7 in, Gewicht (netto): 5,5 kg / 12.1 lbs, Breite (Arm zu Arm): 224 mm / 8.8 in
• Dynamische Effekte:
  • Daten enthalten?: Dynamische Effekte, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, elektronisch
• Elektrische Spezifikationen:
  • Daten enthalten?: Elektrische Spezifikationen, Sicherung: T5A 250V 20mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, max. Leistung (@ 230 V): 200 W
• Lichtquelle:
  • Daten enthalten?: Lichtquelle, CRI: 69, Anzahl: 7, Lebensdauer: 50.000 h, Leistung: 15 W, Typ: RGB LED
• Installation:
  • Daten enthalten?: Installation, Befestigung: 2 Ösen für Sicherungskabel, M10 Gewinde, Gummistandfüße, Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: Bewegung, Pan Angle: 660°, 16 bit, Tilt Angle: 230°, 16 bit
• Optisches System:
  • Daten enthalten?: Optisches System, max. Zoom: 50°, min. Zoom: 7°
• Light Source:
  • Data Category: Light Source, CRI: 69, Count: 7, Lifetime: 50,000 h, Power: 15 W, Type: RGB LED
• Lieferung:
  • Daten enthalten?: Lieferung, einzelnes Gerät: Karton, Tourpack: 4-fach, 8-fach, Flightcase
• Dynamic Effects:
  • Data Category: Dynamic Effects, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, electronical
• Thermische Spezifikationen:
  • Daten enthalten?: Thermische Spezifikationen, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 685 BTU/h
• Connections:
  • Data Category: Connections, Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Construction:
  • Data Category: Construction, Housing color: Black, special colors on request
• Movement:
  • Data Category: Movement, Pan Angle: 660°, 16 bit, Tilt Angle: 230°, 16 bit
• Electrical Specifications:
  • Data Category: Electrical Specifications, Fuse: T5A 250V 20mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, max. Power (@ 230 V): 200 W
• Installation:
  • Data Category: Installation, Mounting: 2 eyelets for safety cable, M10 thread, rubber feet, Orientation: any
• Shipping:
  • Data Category: Shipping, single fixture: carton, Tourpack: 4-way, 8-way, Flightcase
• Dimensions & Weight:
  • Data Category: Dimensions & Weight, Depth (head straight up): 165.5 mm / 6.5 in, Height (head straight up): 324 mm / 12.7 in, Weight (netto): 5.5 kg / 12.1 lbs, Width (across yoke): 224 mm / 8.8 in
• Optical System:
  • Data Category: Optical System, max. Zoom: 50°, min. Zoom: 7°
• Control & Programming:
  • Data Category: Control & Programming, Control Modes: Normal | Compressed | HighRes, Control Protocols: DMX (USITT DMX512-A), Setting and addressing: backlit graphic LCD
• Thermal Specifications:
  • Data Category: Thermal Specifications, Overheating protection: automatic, Total heat dissipation: 685 BTU/h
