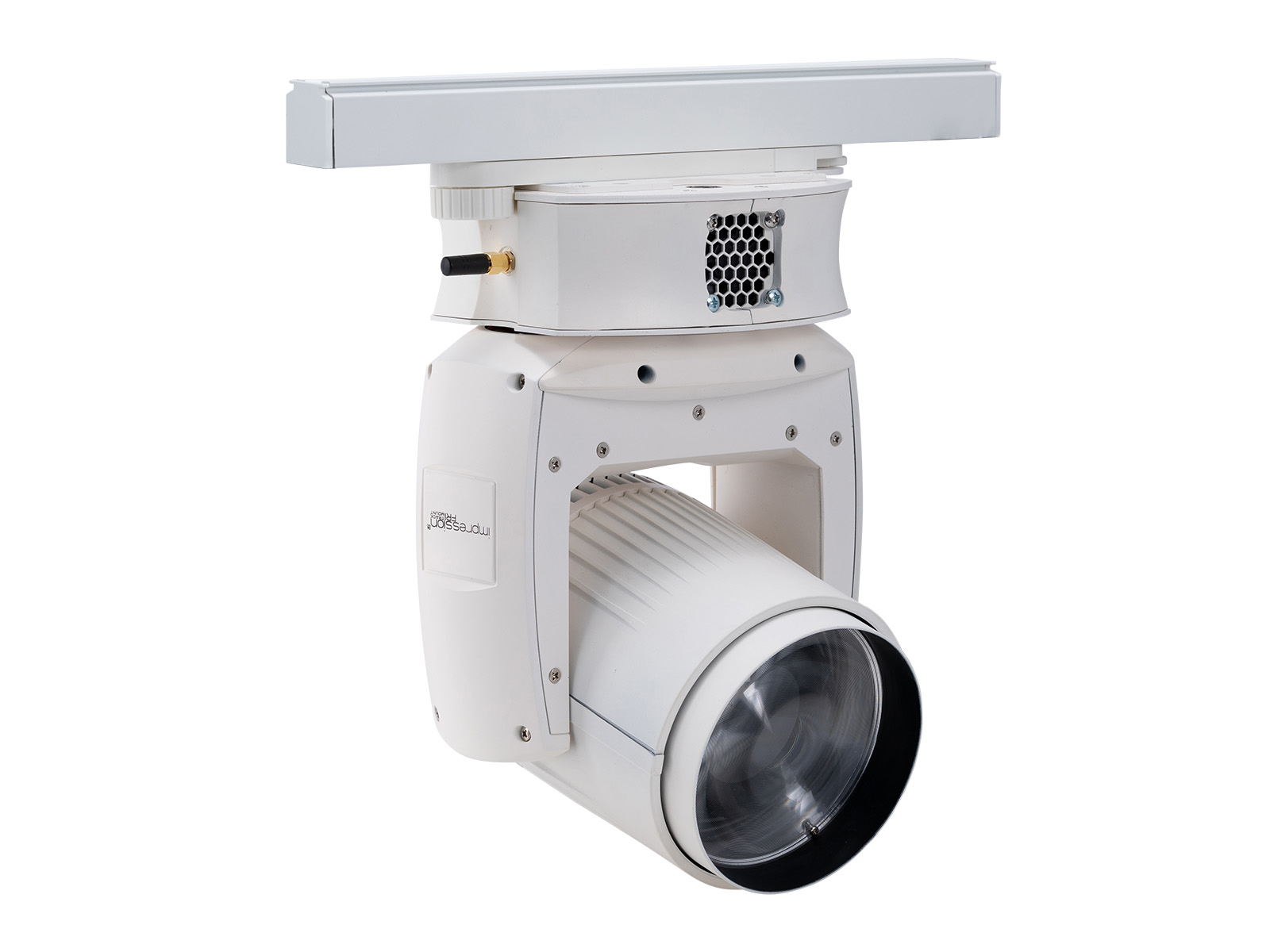

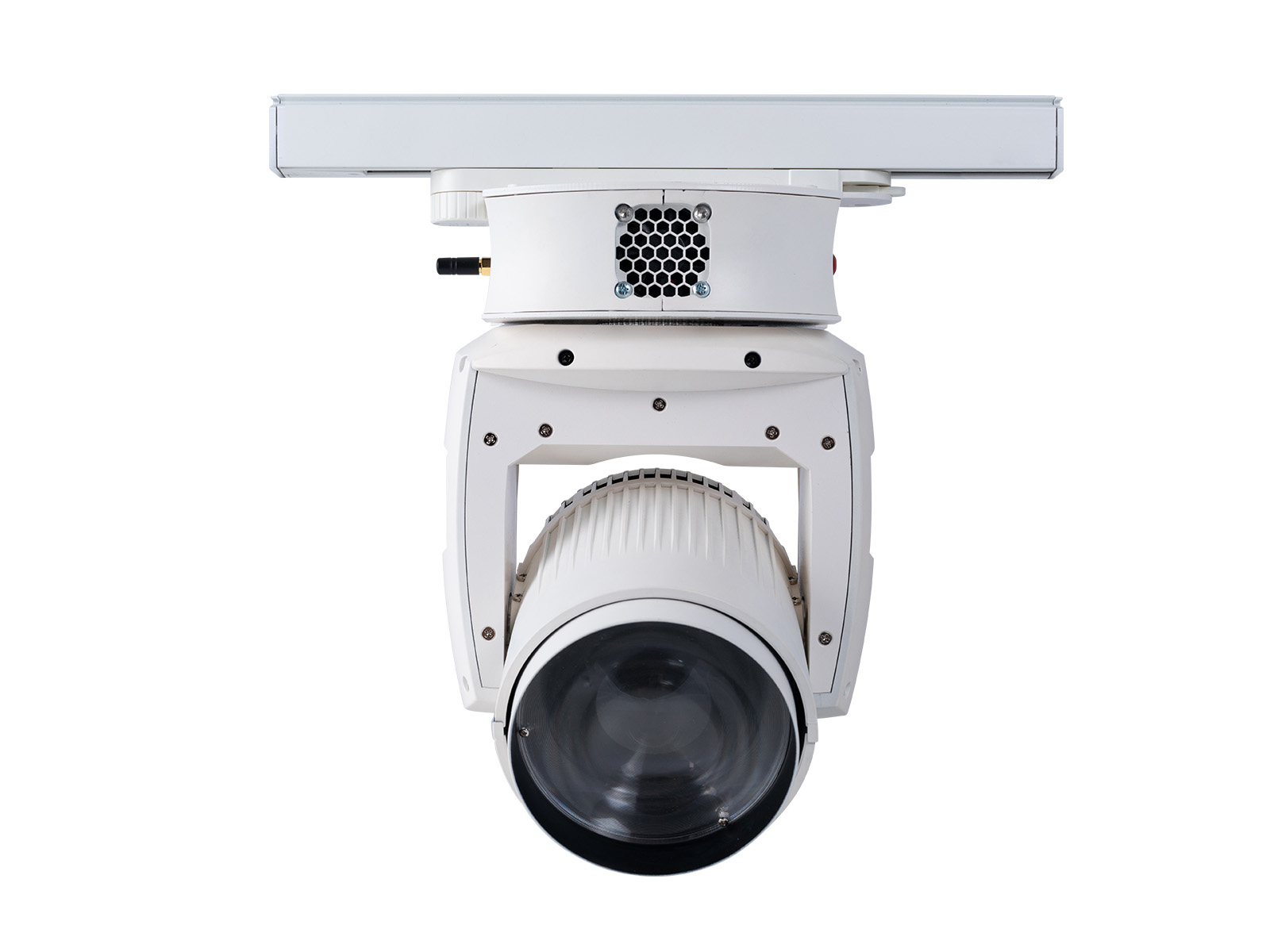

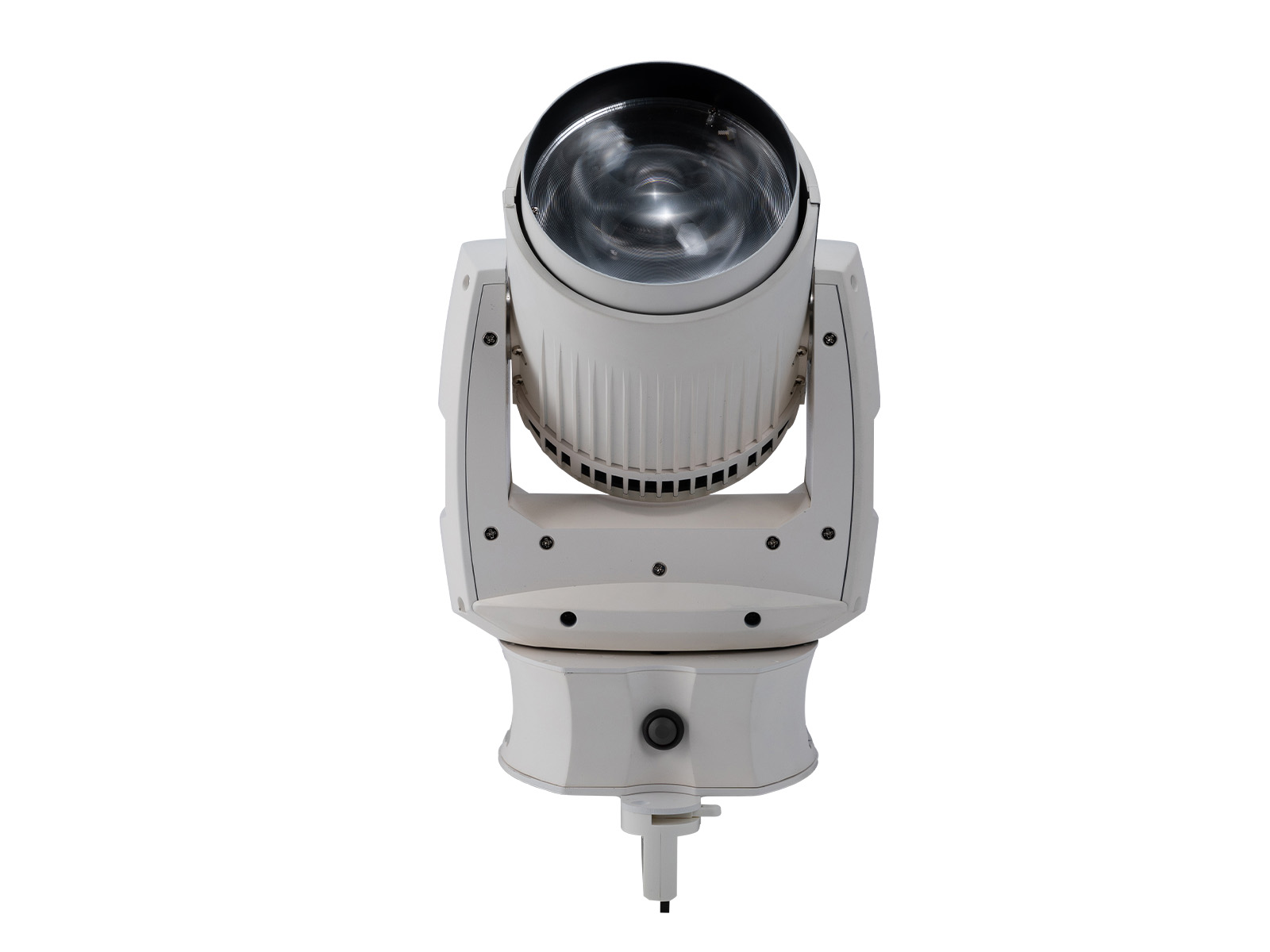

The GLP impression FR1 TM is the latest compact LED moving head which can be mounted on ERCO and compatible track mount systems.

But that's not all – the optical system can move from a 3.7° soft Narrow Beam to a 35° soft wide Wash Light. Optionally it is possible to remove the soft front diffusor to get a more hard Edge Beam in 3.7°. The high quality Osram RGBW Quad LED emits saturated colors and white light of all relevant color temperatures – selectable via RGBW- or CTO-Control. The new micro Fresnel front lens has a homogenly round image and visibility at plan view – ideal for TV applications.

The GLP impression FR1 TM has been designed with the famous baseless design and an extremely and compact body easily fitting into the tightest spaces of set designs from concert and touring stages, television and film, corporate events, set lighting to special events.
, Short product description: Compact Moving Head, powerful 60 W RGBW LED, wide color spectrum, fits any ERCO and its any ERCO and compatible 3-phase tracks

Anschlüsse:

Daten enthalten?: Anschlüsse, Netzanschluss: EUTRACK 3-circuit power track adapter, Signalverbindung: LumenRadio CRMX DMX

Aufbau:

Daten enthalten?: Aufbau, Eigenschaften: EUTRACK Adapter für Trackmount-Installation, Gehäusefarbe: schwarz, weiß, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP20

Steuerung & Programmierung:

Daten enthalten?: Steuerung & Programmierung, Control Modes: 1, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (standard), DMX Channels: 16, Dimmerkurven: linear, soft, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity | Pan | Tilt, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM

Maße & Gewicht:

Daten enthalten?: Maße & Gewicht, Tiefe: 140 mm / 5.5 in, Höhe: 359 mm / 14.1 in, Gewicht (netto): 4 kg / 8.8 lbs, Breite: 190 mm / 7.5 in

Dynamische Effekte:

Daten enthalten?: Dynamische Effekte, Farbmischung: RGBW, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, elektronisch, auswählbare Dimmerkurven, Strobe-Effekte

Elektrische Spezifikationen:

Daten enthalten?: Elektrische Spezifikationen, EEC: E, EEI: 1.193, Ec: 68, Sicherung: T5A 250V 20mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 85 W, max. Anzahl Geräte auf einer Stromleitung: bei 230 V: 40 | bei 110 V: 20

Lichtquelle:

Daten enthalten?: Lichtquelle, CRI: 80+, Anzahl: 1, Lebensdauer: 50.000 h, Leistung: 60 W, TLCI: 80+, TM-30-15: 77 / 106, Typ: RGBW LED

Installation:

Daten enthalten?: Installation, Standort: trocken, Befestigung: 1 Öse für Sicherungskabel, EUTRACK Trackmount Adapter, Ausrichtung: hängend, Mindestabstand zu entzündlichen Materialien: 0,1 m, Mindestabstand zu beleuchteten Oberflächen: 1,0 m

Bewegung:

Daten enthalten?: Bewegung, Pan Angle: 629° kontinuierlich, Tilt Angle: 210°

Optisches System:

Daten enthalten?: Optisches System, Durchmesser Lichtaustrittsfläche: 100 mm / 3.94 in, max. Zoom: 35°, min. Zoom: 3,7°, Maximale Lichtintensität: 705 ksd, Licht-Output: 790 lm, Zoomverhältnis: 1:10

Light Source:

Data Category: Light Source, CRI: 80+, Count: 1, Lifetime: 50,000 h, Power: 60 W, TLCI: 80+, TM-30-15: 77 / 106, Type: RGB LED

Lieferung:

Daten enthalten?: Lieferung, einzelnes Gerät: Karton, Tourpack: 6-fach, 12-fach, Flightcase

Dynamic Effects:

Data Category: Dynamic Effects, Color Mixing: RGBW, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, electronical, selectable dimming curves, Strobe effects

Thermische Spezifikationen:

Daten enthalten?: Thermische Spezifikationen, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 290 BTU/h, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: 5 °C / 40 °F

Connections:

Data Category: Connections, Power connection: ERCO 3-circuit power track adapter, Signal connection: LumenRadio CRMX DMX

Construction:

Data Category: Construction, Construction features: EUTRACK Adapter for Trackmount installation, Housing color: Black, White, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP20

Movement:

Data Category: Movement, Pan Angle: 629° continuous, Tilt Angle: 210°

Electrical Specifications:

Data Category: Electrical Specifications, EEC: E, EEI: 1.193, Ec: 68, Fuse: T5A 250V 20mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 85 W, max. number of products per current line: at 230 V: 40 | at 110 V: 20

Installation:

Data Category: Installation, Location: Dry, Mounting: 1 eyelet for safety cable, EUTRACK Trackmount Adapter, Orientation: hanging, min. distance to combustible materials: 0.1 m, min. distance to illuminated surfaces: 1.0 m

Shipping:

Data Category: Shipping, single fixture: carton, Tourpack: 6-way, 12-way, Flightcase

Dimensions & Weight:

Data Category: Dimensions & Weight, Depth: 140 mm / 5.5 in, Height: 264 mm / 10.4 in, Weight (netto): 4 kg / 8.8 lbs, Width: 190 mm / 7.5 in

Optical System:

Data Category: Optical System, Front lens: 100 mm / 3.94 in, max. Zoom: 35°, min. Zoom: 3.7°, Total Output: 790 lm, Zoom ratio: 1:10

Control & Programming:

Data Category: Control & Programming, Control Modes: 1, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (default), DMX Channels: 16, Dimming curves: linear, soft, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity | Pan | Tilt, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM

Thermal Specifications:

Data Category: Thermal Specifications, Cooling Type: combined convection and forced air, Overheating protection: automatic, Total heat dissipation: 290 BTU/h, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: 5 °C / 40 °F
