impression X5 Bar 1000 – Product Data

• Manual Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Quick_Start_Safety_Manual_Rev_20231024-01_3.pdffiles/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_User_Manual_EN_Rev_20240207-01.pdf
• DMX Charts: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_DMX_Channel_Index_EN_Rev_20240207-01.pdf
• Photometric Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Photometrics_Rev20230420_PRELIMINARY.zip
• Fixture Lib. Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_BAR_1000_MA2_Fixture_Profiles_Rev_20240110-1.zip
• CAD Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_CAD_Rev20230420-1.zipfiles/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Vectorworks_Rev20230420-1.zip
• Info Material Files: files/products/impression-x5-bar-1000-product-data/GLP_impression-X5-Bar.pdffiles/products/impression-x5-bar-1000-product-data/impression-X5-Bar_datasheet_Rev20250120.pdf
• Header Image:
• Product Picture Gallery:

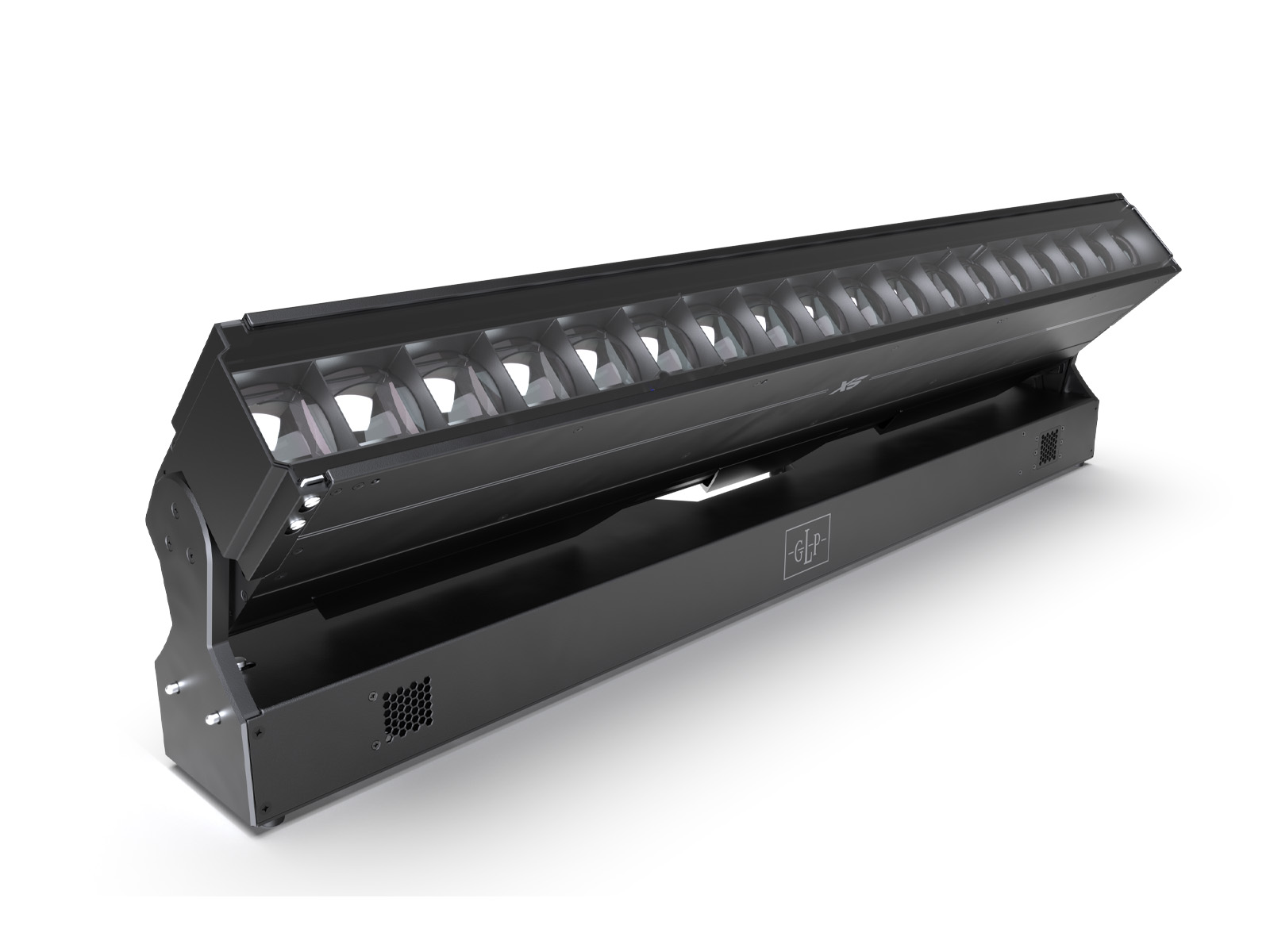

  impression X5 Bar 1000



  impression X5 Bar 1000

• Tender Text Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Tendertext_EN_DE_Rev_20250313-1.zip
• Product info:
  • Long product text (editor):

    The GLP impression X5 Bar is a linear LED batten with 18 powerful 40 W RGBL LED's, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.

    The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 3.0°, and delivering smooth and homogenous washes all the way out to its widest 63° wash.

    As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

    The impression X5 Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired control as standard.

    , Short product description: Linear LED batten, 18x 40 W RGBL LED's with up to 7,500 lm output
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: Tilt-Lock-System | Alignment System | Gewinde für externes Zubehör | Einschub-Filtersystem, Gehäusefarbe: schwarz , Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech , Schutzklasse: IP20
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed | M6: Multipix Compressed RGBL, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh , DMX Channels: M1: 20 | M2: 33 | M3: 48 | M4: 84 | M5: 63 | M6: 81, Dimmerkurven: linear, soft, S-Curve , Fan Modes: regulated, high, medium, low , High-Res Channels: Intensity Global | Tilt | Colormix, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth , Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC über iQ.Service App, 1 Scene Stand Alone , Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push , Subfixture Mode: normal, independent , Weißpunkte: optional: 8.000 K | 5.600 K | 4.200 K | 3.200 K
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe (Kopf gerade hoch): 110 mm / 4.33 in, Höhe: 296 mm / 11.65 in, Gewicht (netto): 20.2 kg / 44.5 lbs, Breite (Arm zu Arm): 1.000 mm / 39.4 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGB, RAW, x;y , Color Mix Priority: verschiedene Einstellungen für Layer Priority , Farbrad: virtuell, 64 LEE referenzierte Farben, Regenbogen, CQC: High Output (HO), High Quality (HQ), Desaturation , CTC: variabel 2.500 – 10.000 K , Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc. , Magenta/Grün-Korrektur: vorhanden , Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten , Zoom speed: superschnelle Zoom-Mechanik
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 750 W
• Lichtquelle:
  • Daten enthalten?: ja , CRI: 8.000 K: 87 | 6.500 K: 86+ | 3.200 K: 84+, CT: 6.500 K, Anzahl: 18, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten , LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4.600 Hz, High 2: 13.000 Hz, alle Werte gerundet; für genauere Informationen GLP Support kontaktieren , Lebensdauer: 50.000 h , Leistung: 40 W, TLCI: 8.000 K: 90 | 6.500 K: 88+ | 3.200 K: 74+, TM-30-15: 6.500 K: 87/105 | 3.200 K: 85/110, Typ: RGBL LED
• Installation:
  • Daten enthalten?: ja , Standort: indoor, indoor , Befestigung: 2 Ösen für Sicherungskabel, 4 Paar 1/4-Drehverschlüsse für 2 Installation Brackets , Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: ja , Tilt Angle: 205°, 16 bit
• Optisches System:
  • Daten enthalten?: ja , Frontlinse: 18 quadratische Linsen: 48 x 48 mm / 1.88 x 1.88 in, max. Zoom: 63°, min. Zoom: 3,0°, Licht-Output: bis zu 7.500 lm, Zoomverhältnis: 1:17
• Light Source:
  • CRI: 8,000 K: 87 | 6,500 K: 86+ | 3,200 K: 84+, CT: 6,500 K, Count: 18, Duv: perfect white point matches with low Duv values , LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; for detailed information, contact GLP Supprt , Lifetime: 50,000 h , Power: 40 W, TLCI: 8,000 K: 90 | 6,500 K: 88+ | 3,200 K: 74+, TM-30-15: 6,500 K: 87/105 | 3,200 K: 85/110, Type: RGBL LED
• Dynamic Effects:
  • Color Mixing: RGB, RAW, x;y , Color Mix Priority: different Layer Priority settings , Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation , CTC: variable 2,500 – 10,000 K , Dimmer / Shutter: 0 – 100%, 16 bit, Strobe effects, instant open and blackout , Magenta/Green-Correction: Yes , Pattern Effects: 50 dynamic pattern macros with special effects , Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix , Zoom speed: fast mechanics
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Kühlung: Kombination aus Konvektions- und Zwangskühlung , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 2.600 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Construction:
  • Construction features: Tilt-Lock-System | Alignment System | Threads for external accessory | Smart Slide-In Filter System, Housing color: Black , Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates , Protection Rating: IP20
• Movement:
  • Tilt Angle: 205°, 16 bit
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 750 W
• Installation:
  • Location: Indoor, Indoor , Mounting: 2 eyelets for safety cable, 4 pairs of 1/4-turn locks for 2 Installation Brackets , Orientation: any
• Dimensions & Weight:
  • Depth (head straight up): 110 mm / 4.33 in, Height: 296 mm / 11.65 in, Weight (netto): 20.2 kg / 44.5 lbs, Width (across yoke): 1,000 mm / 39.4 in
• Optical System:
  • Front lens: 18 square lenses: 48 x 48 mm / 1.88 x 1.88 in, max. Zoom: 63°, min. Zoom: 3.0°, Total Output: up to 7,500 lm, Zoom ratio: 1:17
• Control & Programming:
  • Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed | M6: Multipix Compressed RGBL, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh , DMX Channels: M1: 20 | M2: 33 | M3: 48 | M4: 84 | M5: 63 | M6: 81, Dimming curves: linear, soft, S-Curve , Fan Modes: regulated, high, medium, low , High-Res Channels: Intensity Global | Tilt | Colormix, Other control options: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth , Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC via iQ.Service App, 1 Scene Stand Alone , Software update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push , Subfixture Mode: normal, independent , White Points: optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
• Thermal Specifications:
  • Cooling Type: combined convection and forced air , Overheating protection: automatic , Total heat dissipation: 2,600 BTU/h, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F
